simics::SharedMemoryBank Class Reference

Normally a bank allocates memory from the device object using the name of the bank as the key. More...

#include <bank-templates.h>

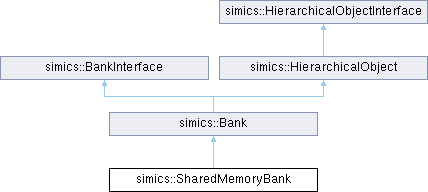

Inheritance diagram for simics::SharedMemoryBank:
simics::Bank simics::BankInterface simics::HierarchicalObject simics::HierarchicalObjectInterface

Public Member Functions

 SharedMemoryBank (MappableConfObject *dev_obj, const std::string &name, std::string_view name_of_bank_memory)

- Public Member Functions inherited from simics::Bank
 Bank (MappableConfObject *dev_obj, const std::string &name)

 Bank (MappableConfObject *dev_obj, const std::string &name, ByteOrder byte_order)

 Bank (const Bank &)=delete

Bank & operator= (const Bank &)=delete

 Bank (Bank &&rhs)

Bank & operator= (Bank &&rhs)

std::string_view name () const override

MappableConfObject * dev_obj () const override

const std::string & description () const override

void set_description (std::string_view desc) override

void add_register (const register_t &reg) override

void add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields) override

unsigned number_of_registers () const override

std::pair< size_t, RegisterInterface * > register_at_index (unsigned index) const override

const std::map< size_t, RegisterInterface * > & mapped_registers () const override

void set_callbacks (BankIssueCallbacksInterface *callbacks) override

ByteOrder get_byte_order () const override

void set_miss_pattern (uint8_t miss_pattern) override

exception_type_t transaction_access (transaction_t *t, uint64_t offset) override

- Public Member Functions inherited from simics::BankInterface
virtual ~BankInterface ()=default

virtual std::string_view name () const =0

virtual MappableConfObject * dev_obj () const =0

virtual const std::string & description () const =0

virtual void set_description (std::string_view desc)=0

virtual void add_register (const register_t &reg)=0

virtual void add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields)=0

virtual unsigned number_of_registers () const =0

virtual std::pair< size_t, RegisterInterface * > register_at_index (unsigned index) const =0

virtual const std::map< size_t, RegisterInterface * > & mapped_registers () const =0

virtual void set_callbacks (BankIssueCallbacksInterface *callbacks)=0

virtual ByteOrder get_byte_order () const =0

virtual void set_miss_pattern (uint8_t miss_pattern)=0

virtual exception_type_t transaction_access (transaction_t *t, uint64_t offset)=0

- Public Member Functions inherited from simics::HierarchicalObject
 HierarchicalObject (MappableConfObject *dev_obj, const std::string &name)

 HierarchicalObject (MappableConfObject *dev_obj, const std::string &name, FieldInterface *iface)

 HierarchicalObject (MappableConfObject *dev_obj, const std::string &name, RegisterInterface *iface)

 HierarchicalObject (MappableConfObject *dev_obj, const std::string &name, BankInterface *iface)

virtual ~HierarchicalObject ()

 HierarchicalObject (const HierarchicalObject &)=delete

HierarchicalObject & operator= (const HierarchicalObject &)=delete

 HierarchicalObject (HierarchicalObject &&rhs) noexcept

HierarchicalObject & operator= (HierarchicalObject &&rhs) noexcept

void init_iface (BankInterface *iface)

void init_iface (RegisterInterface *iface)

void init_iface (FieldInterface *iface)

const std::string & hierarchical_name () const override

std::string_view name () const override

const std::string & description () const override

void set_description (std::string_view desc) override

Level hierarchy_level () const override

std::string_view bank_name () const override

MappableConfObject * dev_obj () const override

ConfObjectRef bank_obj_ref () const override

template<typename T >
T * dev_ptr ()

std::string_view parent_name () const override

FieldInterface * lookup_field (const std::string &name) const override

RegisterInterface * lookup_register (const std::string &name) const override

BankInterface * lookup_bank (const std::string &name) const override

virtual const std::string & hierarchical_name () const =0

virtual std::string_view name () const =0

virtual const std::string & description () const =0

virtual void set_description (std::string_view desc)=0

virtual Level hierarchy_level () const =0

virtual std::string_view bank_name () const =0

virtual MappableConfObject * dev_obj () const =0

virtual ConfObjectRef bank_obj_ref () const =0

virtual std::string_view parent_name () const =0

virtual FieldInterface * lookup_field (const std::string &name) const =0

virtual RegisterInterface * lookup_register (const std::string &name) const =0

virtual BankInterface * lookup_bank (const std::string &name) const =0


Additional Inherited Members

- Static Public Member Functions inherited from simics::HierarchicalObject
static bool is_valid_hierarchical_name (std::string_view name)

static int level_of_hierarchical_name (std::string_view name)

- Static Public Attributes inherited from simics::HierarchicalObject
static const uint64_t Register_Read {1}
 Log group ID for Register_Read and Register_Write is fixed.

static const uint64_t Register_Write {2}

- Protected Member Functions inherited from simics::Bank
virtual std::vector< uint8_t > read (uint64_t offset, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void write (uint64_t offset, const std::vector< uint8_t > &value, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void unmapped_read (size_t offset, size_t size) const

virtual void unmapped_write (size_t offset, size_t size) const

void allocate_bank_memory (std::string_view name)


Detailed Description

Normally a bank allocates memory from the device object using the name of the bank as the key.

SharedMemoryBank supports using any string when allocating the bank memory. It can be used when multiple banks are sharing the same bank memory.

Constructor & Destructor Documentation

◆ SharedMemoryBank()

simics::SharedMemoryBank::SharedMemoryBank ( MappableConfObject *  dev_obj,
const std::string &  name,
std::string_view  name_of_bank_memory
)
inline
Parameters
name_of_bank_memorythe name of the bank memory
The documentation for this class was generated from the following file:
