simics::FieldInterface Class Reference

#include <field-interface.h>

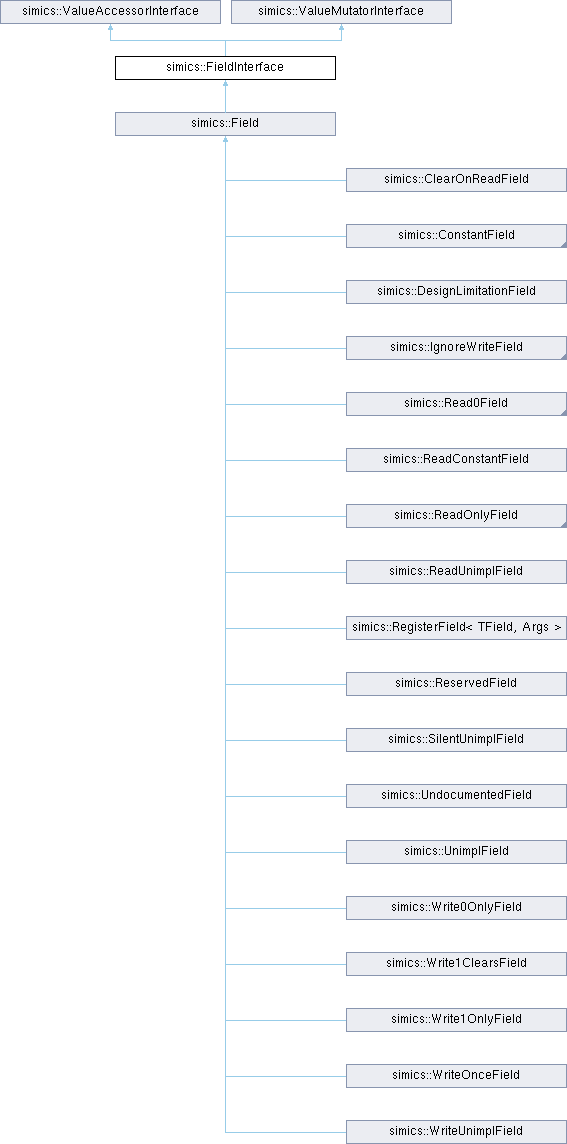

Inheritance diagram for simics::FieldInterface:

Public Member Functions
virtual	~FieldInterface ()=default
virtual std::string_view	name () const =0
virtual const std::string &	description () const =0
virtual unsigned	number_of_bits () const =0
virtual void	init (std::string_view desc, const bits_type &bits, int8_t offset)=0
virtual RegisterInterface *	parent () const =0
Public Member Functions inherited from simics::ValueAccessorInterface
virtual	~ValueAccessorInterface ()=default
virtual uint64_t	get () const =0
virtual uint64_t	read (uint64_t enabled_bits)=0
Public Member Functions inherited from simics::ValueMutatorInterface
virtual	~ValueMutatorInterface ()=default
virtual void	set (uint64_t value)=0
virtual void	write (uint64_t value, uint64_t enabled_bits)=0

Constructor & Destructor Documentation

~FieldInterface()

virtual simics::FieldInterface::~FieldInterface ( )

virtualdefault

Member Function Documentation

description()

virtual const std::string & simics::FieldInterface::description ( ) const

pure virtual

Implemented in simics::Field.

init()

virtual void simics::FieldInterface::init ( std::string_view  desc, const bits_type &  bits, int8_t  offset  )

pure virtual

Implemented in simics::ConstantField, and simics::Field.

name()

virtual std::string_view simics::FieldInterface::name ( ) const

pure virtual

Implemented in simics::Field.

number_of_bits()

virtual unsigned simics::FieldInterface::number_of_bits ( ) const

pure virtual

Implemented in simics::Field.

parent()

virtual RegisterInterface * simics::FieldInterface::parent ( ) const

pure virtual

Implemented in simics::Field.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/mono-124635/src/devices/c++-api/simics/iface/field-interface.h
