simics::HierarchicalObject Class Reference

#include <hierarchical-object.h>

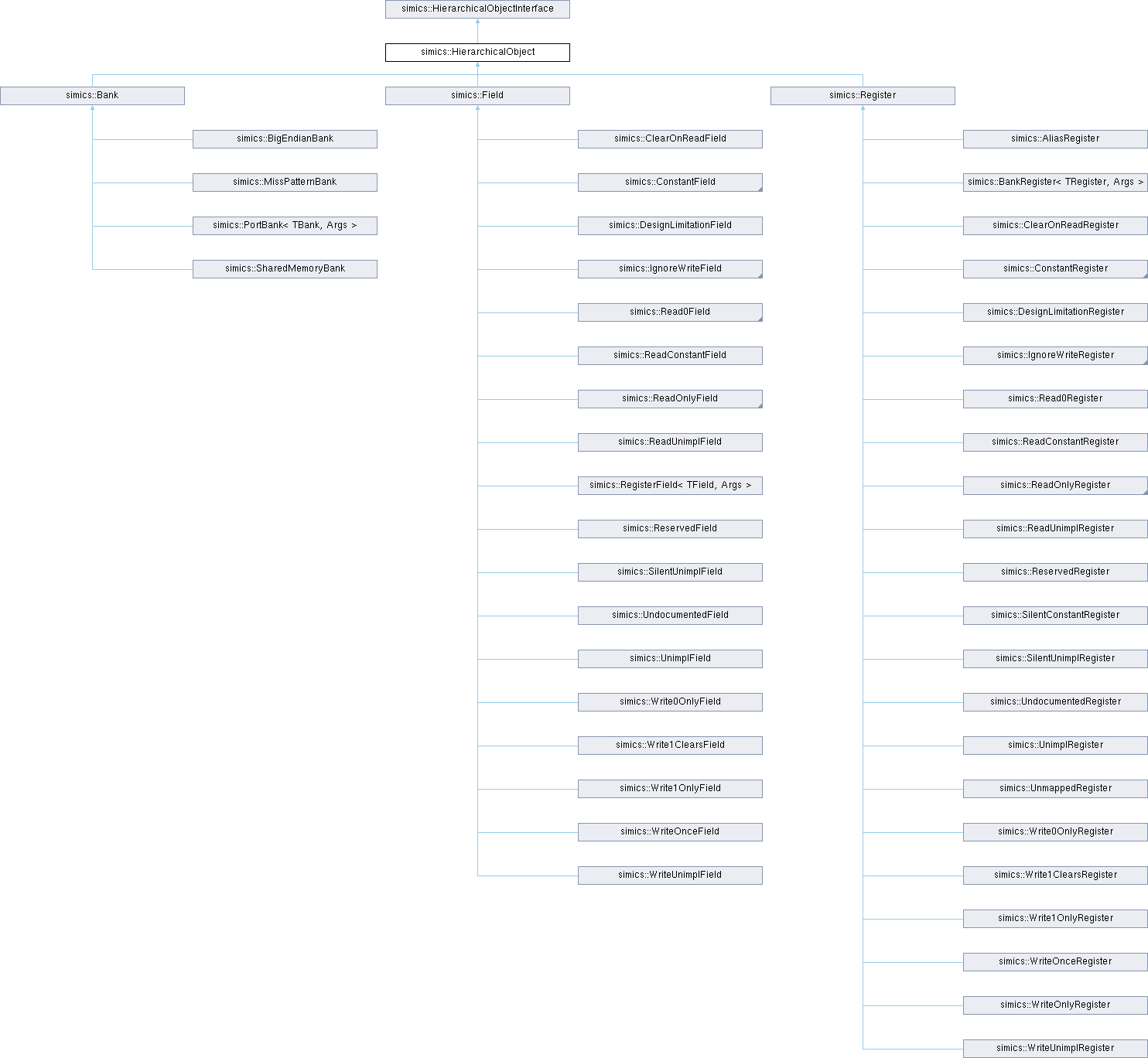

Inheritance diagram for simics::HierarchicalObject:

Public Member Functions
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name)
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name, FieldInterface *iface)
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name, RegisterInterface *iface)
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name, BankInterface *iface)
virtual	~HierarchicalObject ()
	HierarchicalObject (const HierarchicalObject &)=delete
HierarchicalObject &	operator= (const HierarchicalObject &)=delete
	HierarchicalObject (HierarchicalObject &&rhs) noexcept
HierarchicalObject &	operator= (HierarchicalObject &&rhs) noexcept
void	init_iface (BankInterface *iface)
void	init_iface (RegisterInterface *iface)
void	init_iface (FieldInterface *iface)
const std::string &	hierarchical_name () const override
std::string_view	name () const override
const std::string &	description () const override
void	set_description (std::string_view desc) override
Level	hierarchy_level () const override
std::string_view	bank_name () const override
MappableConfObject *	dev_obj () const override
ConfObjectRef	bank_obj_ref () const override
template<typename T >
T *	dev_ptr ()
std::string_view	parent_name () const override
FieldInterface *	lookup_field (const std::string &name) const override
RegisterInterface *	lookup_register (const std::string &name) const override
BankInterface *	lookup_bank (const std::string &name) const override
virtual const std::string &	hierarchical_name () const =0
virtual std::string_view	name () const =0
virtual const std::string &	description () const =0
virtual void	set_description (std::string_view desc)=0
virtual Level	hierarchy_level () const =0
virtual std::string_view	bank_name () const =0
virtual MappableConfObject *	dev_obj () const =0
virtual ConfObjectRef	bank_obj_ref () const =0
virtual std::string_view	parent_name () const =0
virtual FieldInterface *	lookup_field (const std::string &name) const =0
virtual RegisterInterface *	lookup_register (const std::string &name) const =0
virtual BankInterface *	lookup_bank (const std::string &name) const =0

Static Public Member Functions
static bool	is_valid_hierarchical_name (std::string_view name)
static int	level_of_hierarchical_name (std::string_view name)

Static Public Attributes
static const uint64_t	Register_Read {1}
	Log group ID for Register_Read and Register_Write is fixed.
static const uint64_t	Register_Write {2}

Constructor & Destructor Documentation

HierarchicalObject() [1/6]

simics::HierarchicalObject::HierarchicalObject ( MappableConfObject *  dev_obj, const std::string &  name  )

inline

HierarchicalObject() [2/6]

simics::HierarchicalObject::HierarchicalObject ( MappableConfObject *  dev_obj, const std::string &  name, FieldInterface *  iface  )

inline

HierarchicalObject() [3/6]

simics::HierarchicalObject::HierarchicalObject ( MappableConfObject *  dev_obj, const std::string &  name, RegisterInterface *  iface  )

inline

HierarchicalObject() [4/6]

simics::HierarchicalObject::HierarchicalObject ( MappableConfObject *  dev_obj, const std::string &  name, BankInterface *  iface  )

inline

~HierarchicalObject()

virtual simics::HierarchicalObject::~HierarchicalObject ( )

inlinevirtual

HierarchicalObject() [5/6]

simics::HierarchicalObject::HierarchicalObject ( const HierarchicalObject &  )

delete

HierarchicalObject() [6/6]

simics::HierarchicalObject::HierarchicalObject ( HierarchicalObject &&  rhs )

inlinenoexcept

Member Function Documentation

bank_name()

std::string_view simics::HierarchicalObject::bank_name ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

bank_obj_ref()

ConfObjectRef simics::HierarchicalObject::bank_obj_ref ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

Reimplemented in simics::Register.

description()

const std::string & simics::HierarchicalObject::description ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

Reimplemented in simics::Register.

dev_obj()

MappableConfObject * simics::HierarchicalObject::dev_obj ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

Reimplemented in simics::Register.

dev_ptr()

template<typename T >

T * simics::HierarchicalObject::dev_ptr ( )

inline

hierarchical_name()

const std::string & simics::HierarchicalObject::hierarchical_name ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

Reimplemented in simics::Register.

hierarchy_level()

Level simics::HierarchicalObject::hierarchy_level ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

init_iface() [1/3]

void simics::HierarchicalObject::init_iface ( BankInterface *  iface )

inline

init_iface() [2/3]

void simics::HierarchicalObject::init_iface ( FieldInterface *  iface )

inline

init_iface() [3/3]

void simics::HierarchicalObject::init_iface ( RegisterInterface *  iface )

inline

is_valid_hierarchical_name()

static bool simics::HierarchicalObject::is_valid_hierarchical_name ( std::string_view  name )

inlinestatic

level_of_hierarchical_name()

static int simics::HierarchicalObject::level_of_hierarchical_name ( std::string_view  name )

inlinestatic

lookup_bank()

BankInterface * simics::HierarchicalObject::lookup_bank ( const std::string &  name ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

lookup_field()

FieldInterface * simics::HierarchicalObject::lookup_field ( const std::string &  name ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

lookup_register()

RegisterInterface * simics::HierarchicalObject::lookup_register ( const std::string &  name ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

name()

std::string_view simics::HierarchicalObject::name ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

Reimplemented in simics::Register.

operator=() [1/2]

HierarchicalObject & simics::HierarchicalObject::operator= ( const HierarchicalObject &  )

delete

operator=() [2/2]

HierarchicalObject & simics::HierarchicalObject::operator= ( HierarchicalObject &&  rhs )

inlinenoexcept

parent_name()

std::string_view simics::HierarchicalObject::parent_name ( ) const

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

set_description()

void simics::HierarchicalObject::set_description ( std::string_view  desc )

inlineoverridevirtual

Implements simics::HierarchicalObjectInterface.

Member Data Documentation

Register_Read

const uint64_t simics::HierarchicalObject::Register_Read {1}

static

Log group ID for Register_Read and Register_Write is fixed.

Register_Write

const uint64_t simics::HierarchicalObject::Register_Write {2}

static

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/mono-124635/src/devices/c++-api/simics/hierarchical-object.h
