#include <bank.h>

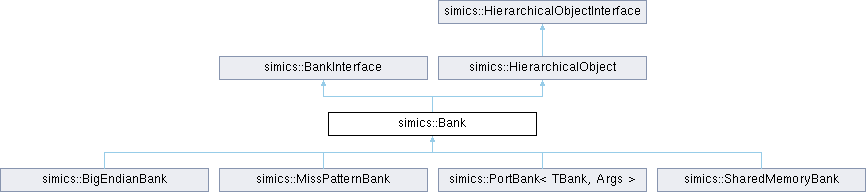

Inheritance diagram for simics::Bank:

Public Member Functions
	Bank (MappableConfObject *dev_obj, const std::string &name)

	Bank (MappableConfObject *dev_obj, const std::string &name, ByteOrder byte_order)

	Bank (const Bank &)=delete

Bank &	operator= (const Bank &)=delete

	Bank (Bank &&rhs)

Bank &	operator= (Bank &&rhs)

std::string_view	name () const override

MappableConfObject *	dev_obj () const override

const std::string &	description () const override

void	set_description (std::string_view desc) override

void	add_register (const register_t &reg) override

void	add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields) override

unsigned	number_of_registers () const override

std::pair< size_t, RegisterInterface * >	register_at_index (unsigned index) const override

const std::map< size_t, RegisterInterface * > &	mapped_registers () const override

void	set_callbacks (BankIssueCallbacksInterface *callbacks) override

ByteOrder	get_byte_order () const override

void	set_miss_pattern (uint8_t miss_pattern) override

exception_type_t	transaction_access (transaction_t *t, uint64_t offset) override

Public Member Functions inherited from simics::BankInterface
virtual	~BankInterface ()=default

virtual std::string_view	name () const =0

virtual MappableConfObject *	dev_obj () const =0

virtual const std::string &	description () const =0

virtual void	set_description (std::string_view desc)=0

virtual void	add_register (const register_t &reg)=0

virtual void	add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields)=0

virtual unsigned	number_of_registers () const =0

virtual std::pair< size_t, RegisterInterface * >	register_at_index (unsigned index) const =0

virtual const std::map< size_t, RegisterInterface * > &	mapped_registers () const =0

virtual void	set_callbacks (BankIssueCallbacksInterface *callbacks)=0

virtual ByteOrder	get_byte_order () const =0

virtual void	set_miss_pattern (uint8_t miss_pattern)=0

virtual exception_type_t	transaction_access (transaction_t *t, uint64_t offset)=0

Public Member Functions inherited from simics::HierarchicalObject
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name)

	HierarchicalObject (MappableConfObject dev_obj, const std::string &name, FieldInterface iface)

	HierarchicalObject (MappableConfObject dev_obj, const std::string &name, RegisterInterface iface)

	HierarchicalObject (MappableConfObject dev_obj, const std::string &name, BankInterface iface)

virtual	~HierarchicalObject ()

	HierarchicalObject (const HierarchicalObject &)=delete

HierarchicalObject &	operator= (const HierarchicalObject &)=delete

	HierarchicalObject (HierarchicalObject &&rhs) noexcept

HierarchicalObject &	operator= (HierarchicalObject &&rhs) noexcept

void	init_iface (BankInterface *iface)

void	init_iface (RegisterInterface *iface)

void	init_iface (FieldInterface *iface)

const std::string &	hierarchical_name () const override

std::string_view	name () const override

const std::string &	description () const override

void	set_description (std::string_view desc) override

Level	hierarchy_level () const override

std::string_view	bank_name () const override

MappableConfObject *	dev_obj () const override

ConfObjectRef	bank_obj_ref () const override

template<typename T >
T *	dev_ptr ()

std::string_view	parent_name () const override

FieldInterface *	lookup_field (const std::string &name) const override

RegisterInterface *	lookup_register (const std::string &name) const override

BankInterface *	lookup_bank (const std::string &name) const override

virtual const std::string &	hierarchical_name () const =0

virtual std::string_view	name () const =0

virtual const std::string &	description () const =0

virtual void	set_description (std::string_view desc)=0

virtual Level	hierarchy_level () const =0

virtual std::string_view	bank_name () const =0

virtual MappableConfObject *	dev_obj () const =0

virtual ConfObjectRef	bank_obj_ref () const =0

virtual std::string_view	parent_name () const =0

virtual FieldInterface *	lookup_field (const std::string &name) const =0

virtual RegisterInterface *	lookup_register (const std::string &name) const =0

virtual BankInterface *	lookup_bank (const std::string &name) const =0

Protected Member Functions
virtual std::vector< uint8_t >	read (uint64_t offset, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void	write (uint64_t offset, const std::vector< uint8_t > &value, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void	unmapped_read (size_t offset, size_t size) const

virtual void	unmapped_write (size_t offset, size_t size) const

void	allocate_bank_memory (std::string_view name)

Additional Inherited Members
Static Public Member Functions inherited from simics::HierarchicalObject
static bool	is_valid_hierarchical_name (std::string_view name)

static int	level_of_hierarchical_name (std::string_view name)

Static Public Attributes inherited from simics::HierarchicalObject
static const uint64_t	Register_Read {1}
	Log group ID for Register_Read and Register_Write is fixed.

static const uint64_t	Register_Write {2}

Constructor & Destructor Documentation

◆ Bank() [1/4]

simics::Bank::Bank	(	MappableConfObject *	dev_obj,
		const std::string &	name
	)

inline

◆ Bank() [2/4]

simics::Bank::Bank	(	MappableConfObject *	dev_obj,
		const std::string &	name,
		ByteOrder	byte_order
	)

inline

◆ Bank() [3/4]

simics::Bank::Bank ( const Bank & )

delete

◆ Bank() [4/4]

simics::Bank::Bank ( Bank && rhs )

inline

Member Function Documentation

◆ add_register() [1/2]

void simics::Bank::add_register ( const register_t & reg )

overridevirtual

Implements simics::BankInterface.

◆ add_register() [2/2]

void simics::Bank::add_register	(	std::string_view	name,
		std::string_view	desc,
		Offset	offset,
		ByteSize	number_of_bytes,
		InitValue	init_value,
		const std::vector< field_t > &	fields
	)

overridevirtual

Implements simics::BankInterface.

◆ allocate_bank_memory()

void simics::Bank::allocate_bank_memory ( std::string_view name )

protected

◆ description()

const std::string & simics::Bank::description ( ) const

inlineoverridevirtual

Implements simics::BankInterface.

◆ dev_obj()

MappableConfObject * simics::Bank::dev_obj ( ) const

inlineoverridevirtual

Implements simics::BankInterface.

◆ get_byte_order()

ByteOrder simics::Bank::get_byte_order ( ) const

inlineoverridevirtual

Implements simics::BankInterface.

◆ mapped_registers()

const std::map< size_t, RegisterInterface * > & simics::Bank::mapped_registers ( ) const

overridevirtual

Implements simics::BankInterface.

◆ name()

std::string_view simics::Bank::name ( ) const

inlineoverridevirtual

Implements simics::BankInterface.

◆ number_of_registers()

unsigned simics::Bank::number_of_registers ( ) const

inlineoverridevirtual

Implements simics::BankInterface.

◆ operator=() [1/2]

Bank & simics::Bank::operator= ( Bank && rhs )

inline

◆ operator=() [2/2]

Bank & simics::Bank::operator= ( const Bank & )

delete

◆ read()

virtual std::vector< uint8_t > simics::Bank::read	(	uint64_t	offset,
		size_t	size,
		Inquiry	inquiry = `Inquiry::NonInquiry`
	)		const

protectedvirtual

◆ register_at_index()

std::pair< size_t, RegisterInterface * > simics::Bank::register_at_index ( unsigned index ) const

overridevirtual

Implements simics::BankInterface.

◆ set_callbacks()

void simics::Bank::set_callbacks ( BankIssueCallbacksInterface * callbacks )

inlineoverridevirtual

Implements simics::BankInterface.

◆ set_description()

void simics::Bank::set_description ( std::string_view desc )

inlineoverridevirtual

Implements simics::BankInterface.

◆ set_miss_pattern()

void simics::Bank::set_miss_pattern ( uint8_t miss_pattern )

inlineoverridevirtual

Implements simics::BankInterface.

◆ transaction_access()

exception_type_t simics::Bank::transaction_access	(	transaction_t *	t,
		uint64_t	offset
	)

overridevirtual

Implements simics::BankInterface.

◆ unmapped_read()

virtual void simics::Bank::unmapped_read	(	size_t	offset,
		size_t	size
	)		const

protectedvirtual

◆ unmapped_write()

virtual void simics::Bank::unmapped_write	(	size_t	offset,
		size_t	size
	)		const

protectedvirtual

◆ write()

virtual void simics::Bank::write	(	uint64_t	offset,
		const std::vector< uint8_t > &	value,
		size_t	size,
		Inquiry	inquiry = `Inquiry::NonInquiry`
	)		const

protectedvirtual

The documentation for this class was generated from the following file:

/disk2/mp/builds/mono-124635/src/devices/c++-api/simics/bank.h
