simics::HierarchicalObjectInterface Class Reference

#include <hierarchical-object-interface.h>

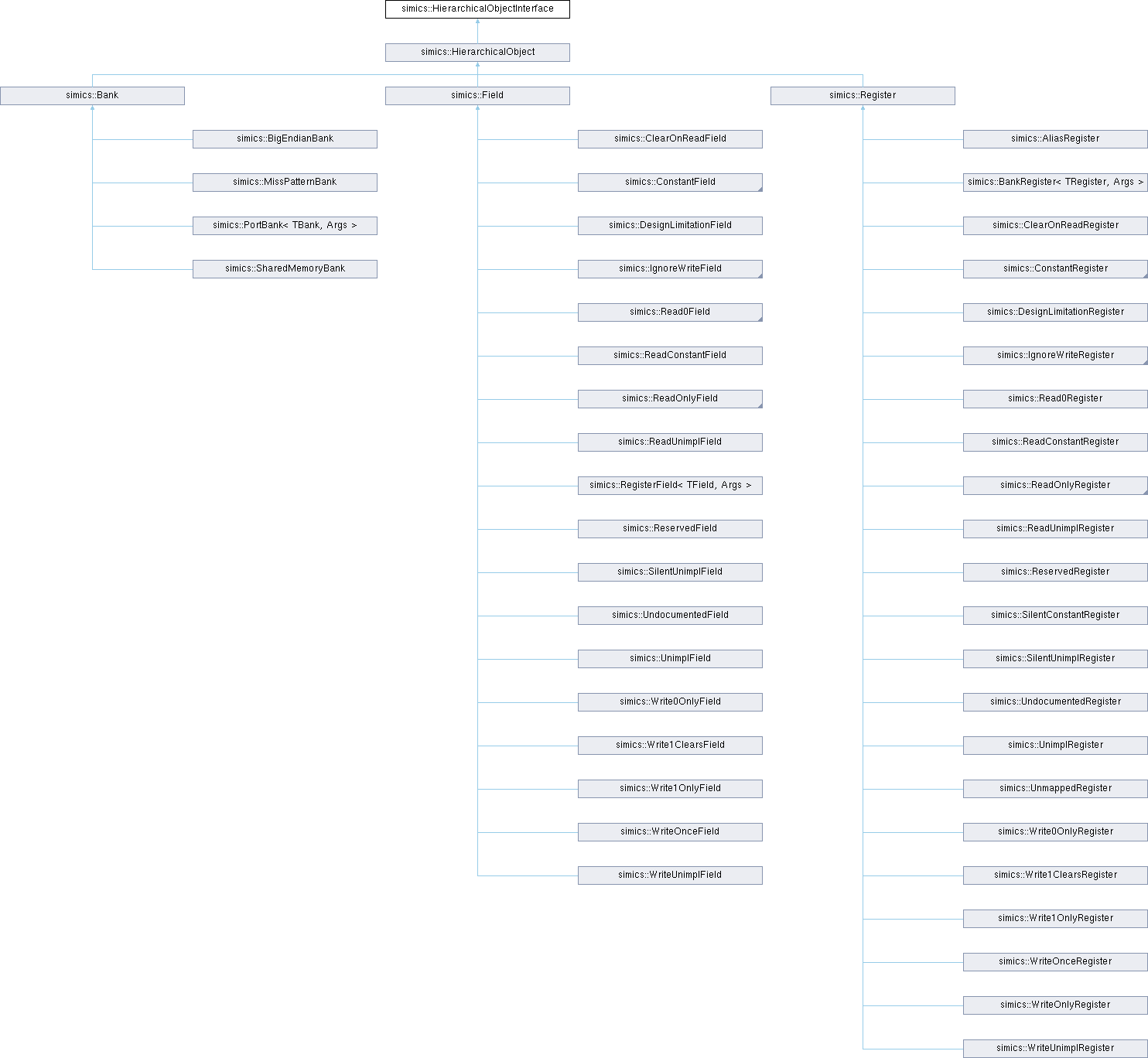

Inheritance diagram for simics::HierarchicalObjectInterface:

Public Member Functions
virtual const std::string &	hierarchical_name () const =0
virtual std::string_view	name () const =0
virtual const std::string &	description () const =0
virtual void	set_description (std::string_view desc)=0
virtual Level	hierarchy_level () const =0
virtual std::string_view	bank_name () const =0
virtual MappableConfObject *	dev_obj () const =0
virtual ConfObjectRef	bank_obj_ref () const =0
virtual std::string_view	parent_name () const =0
virtual FieldInterface *	lookup_field (const std::string &name) const =0
virtual RegisterInterface *	lookup_register (const std::string &name) const =0
virtual BankInterface *	lookup_bank (const std::string &name) const =0

Member Function Documentation

bank_name()

virtual std::string_view simics::HierarchicalObjectInterface::bank_name ( ) const

pure virtual

Implemented in simics::HierarchicalObject.

bank_obj_ref()

virtual ConfObjectRef simics::HierarchicalObjectInterface::bank_obj_ref ( ) const

pure virtual

Implemented in simics::HierarchicalObject, and simics::Register.

description()

virtual const std::string & simics::HierarchicalObjectInterface::description ( ) const

pure virtual

Implemented in simics::Bank, simics::Field, simics::HierarchicalObject, and simics::Register.

dev_obj()

virtual MappableConfObject * simics::HierarchicalObjectInterface::dev_obj ( ) const

pure virtual

Implemented in simics::Bank, simics::HierarchicalObject, and simics::Register.

hierarchical_name()

virtual const std::string & simics::HierarchicalObjectInterface::hierarchical_name ( ) const

pure virtual

Implemented in simics::HierarchicalObject, and simics::Register.

hierarchy_level()

virtual Level simics::HierarchicalObjectInterface::hierarchy_level ( ) const

pure virtual

Implemented in simics::HierarchicalObject.

lookup_bank()

virtual BankInterface * simics::HierarchicalObjectInterface::lookup_bank ( const std::string &  name ) const

pure virtual

Implemented in simics::HierarchicalObject.

lookup_field()

virtual FieldInterface * simics::HierarchicalObjectInterface::lookup_field ( const std::string &  name ) const

pure virtual

Implemented in simics::HierarchicalObject.

lookup_register()

virtual RegisterInterface * simics::HierarchicalObjectInterface::lookup_register ( const std::string &  name ) const

pure virtual

Implemented in simics::HierarchicalObject.

name()

virtual std::string_view simics::HierarchicalObjectInterface::name ( ) const

pure virtual

Implemented in simics::Bank, simics::Field, simics::HierarchicalObject, and simics::Register.

parent_name()

virtual std::string_view simics::HierarchicalObjectInterface::parent_name ( ) const

pure virtual

Implemented in simics::HierarchicalObject.

set_description()

virtual void simics::HierarchicalObjectInterface::set_description ( std::string_view  desc )

pure virtual

Implemented in simics::Bank, and simics::HierarchicalObject.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/mono-124635/src/devices/c++-api/simics/iface/hierarchical-object-interface.h
