simics::BankInterface Class Reference

#include <bank-interface.h>

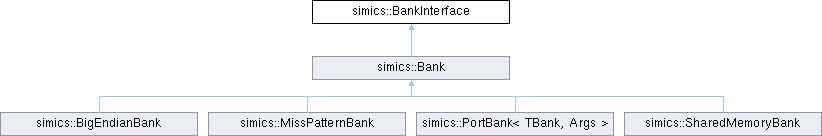

Inheritance diagram for simics::BankInterface:

Public Member Functions
virtual	~BankInterface ()=default
virtual std::string_view	name () const =0
virtual MappableConfObject *	dev_obj () const =0
virtual const std::string &	description () const =0
virtual void	set_description (std::string_view desc)=0
virtual void	add_register (const register_t &reg)=0
virtual void	add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields)=0
virtual unsigned	number_of_registers () const =0
virtual std::pair< size_t, RegisterInterface * >	register_at_index (unsigned index) const =0
virtual const std::map< size_t, RegisterInterface * > &	mapped_registers () const =0
virtual void	set_callbacks (BankIssueCallbacksInterface *callbacks)=0
virtual ByteOrder	get_byte_order () const =0
virtual void	set_miss_pattern (uint8_t miss_pattern)=0
virtual exception_type_t	transaction_access (transaction_t *t, uint64_t offset)=0

Constructor & Destructor Documentation

~BankInterface()

virtual simics::BankInterface::~BankInterface ( )

virtualdefault

Member Function Documentation

add_register() [1/2]

virtual void simics::BankInterface::add_register ( const register_t &  reg )

pure virtual

Implemented in simics::Bank.

add_register() [2/2]

virtual void simics::BankInterface::add_register ( std::string_view  name, std::string_view  desc, Offset  offset, ByteSize  number_of_bytes, InitValue  init_value, const std::vector< field_t > &  fields  )

pure virtual

Implemented in simics::Bank.

description()

virtual const std::string & simics::BankInterface::description ( ) const

pure virtual

Implemented in simics::Bank.

dev_obj()

virtual MappableConfObject * simics::BankInterface::dev_obj ( ) const

pure virtual

Implemented in simics::Bank.

get_byte_order()

virtual ByteOrder simics::BankInterface::get_byte_order ( ) const

pure virtual

Implemented in simics::Bank.

mapped_registers()

virtual const std::map< size_t, RegisterInterface * > & simics::BankInterface::mapped_registers ( ) const

pure virtual

Implemented in simics::Bank.

name()

virtual std::string_view simics::BankInterface::name ( ) const

pure virtual

Implemented in simics::Bank.

number_of_registers()

virtual unsigned simics::BankInterface::number_of_registers ( ) const

pure virtual

Implemented in simics::Bank.

register_at_index()

virtual std::pair< size_t, RegisterInterface * > simics::BankInterface::register_at_index ( unsigned  index ) const

pure virtual

Implemented in simics::Bank.

set_callbacks()

virtual void simics::BankInterface::set_callbacks ( BankIssueCallbacksInterface *  callbacks )

pure virtual

Implemented in simics::Bank.

set_description()

virtual void simics::BankInterface::set_description ( std::string_view  desc )

pure virtual

Implemented in simics::Bank.

set_miss_pattern()

virtual void simics::BankInterface::set_miss_pattern ( uint8_t  miss_pattern )

pure virtual

Implemented in simics::Bank.

transaction_access()

virtual exception_type_t simics::BankInterface::transaction_access ( transaction_t *  t, uint64_t  offset  )

pure virtual

Implemented in simics::Bank.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/mono-124635/src/devices/c++-api/simics/iface/bank-interface.h
