simics::RegisterInterface Class Reference

#include <register-interface.h>

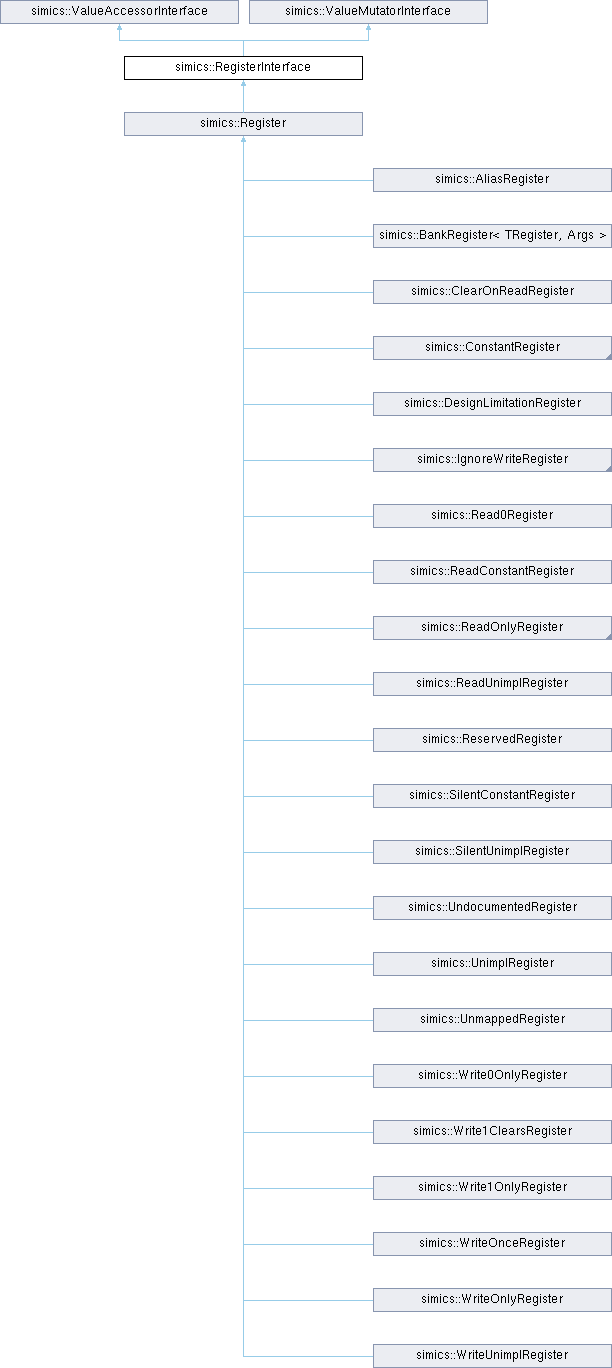

Inheritance diagram for simics::RegisterInterface:

Public Member Functions
virtual	~RegisterInterface ()=default
virtual std::string_view	name () const =0
virtual const std::string &	hierarchical_name () const =0
virtual const std::string &	description () const =0
virtual MappableConfObject *	dev_obj () const =0
virtual ConfObjectRef	bank_obj_ref () const =0
virtual unsigned	number_of_bytes () const =0
virtual void	init (std::string_view desc, unsigned number_of_bytes, uint64_t init_val)=0
virtual void	reset ()=0
virtual bool	is_read_only () const =0
virtual bool	is_mapped () const =0
virtual void	parse_field (const field_t &f)=0
virtual std::vector< field_t >	fields_info () const =0
virtual BankInterface *	parent () const =0
virtual void	set_byte_pointers (const register_memory_t &byte_pointers)=0
Public Member Functions inherited from simics::ValueAccessorInterface
virtual	~ValueAccessorInterface ()=default
virtual uint64_t	get () const =0
virtual uint64_t	read (uint64_t enabled_bits)=0
Public Member Functions inherited from simics::ValueMutatorInterface
virtual	~ValueMutatorInterface ()=default
virtual void	set (uint64_t value)=0
virtual void	write (uint64_t value, uint64_t enabled_bits)=0

Constructor & Destructor Documentation

~RegisterInterface()

virtual simics::RegisterInterface::~RegisterInterface ( )

virtualdefault

Member Function Documentation

bank_obj_ref()

virtual ConfObjectRef simics::RegisterInterface::bank_obj_ref ( ) const

pure virtual

Implemented in simics::Register.

description()

virtual const std::string & simics::RegisterInterface::description ( ) const

pure virtual

Implemented in simics::Register.

dev_obj()

virtual MappableConfObject * simics::RegisterInterface::dev_obj ( ) const

pure virtual

Implemented in simics::Register.

fields_info()

virtual std::vector< field_t > simics::RegisterInterface::fields_info ( ) const

pure virtual

Implemented in simics::AliasRegister, and simics::Register.

hierarchical_name()

virtual const std::string & simics::RegisterInterface::hierarchical_name ( ) const

pure virtual

Implemented in simics::Register.

init()

virtual void simics::RegisterInterface::init ( std::string_view  desc, unsigned  number_of_bytes, uint64_t  init_val  )

pure virtual

Implemented in simics::ZerosRegister, simics::OnesRegister, and simics::Register.

is_mapped()

virtual bool simics::RegisterInterface::is_mapped ( ) const

pure virtual

Implemented in simics::UnmappedRegister, simics::AliasRegister, and simics::Register.

is_read_only()

virtual bool simics::RegisterInterface::is_read_only ( ) const

pure virtual

Implemented in simics::ReadOnlyRegister, simics::AliasRegister, and simics::Register.

name()

virtual std::string_view simics::RegisterInterface::name ( ) const

pure virtual

Implemented in simics::Register.

number_of_bytes()

virtual unsigned simics::RegisterInterface::number_of_bytes ( ) const

pure virtual

Implemented in simics::Register.

parent()

virtual BankInterface * simics::RegisterInterface::parent ( ) const

pure virtual

Implemented in simics::Register.

parse_field()

virtual void simics::RegisterInterface::parse_field ( const field_t &  f )

pure virtual

Implemented in simics::Register.

reset()

virtual void simics::RegisterInterface::reset ( )

pure virtual

Implemented in simics::Register.

set_byte_pointers()

virtual void simics::RegisterInterface::set_byte_pointers ( const register_memory_t &  byte_pointers )

pure virtual

Implemented in simics::Register.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/mono-124635/src/devices/c++-api/simics/iface/register-interface.h
