ad::rss::core::RelativeObjectState Struct Reference

DataType RelativeObjectState. More...

#include <ad/rss/core/RelativeObjectState.hpp>

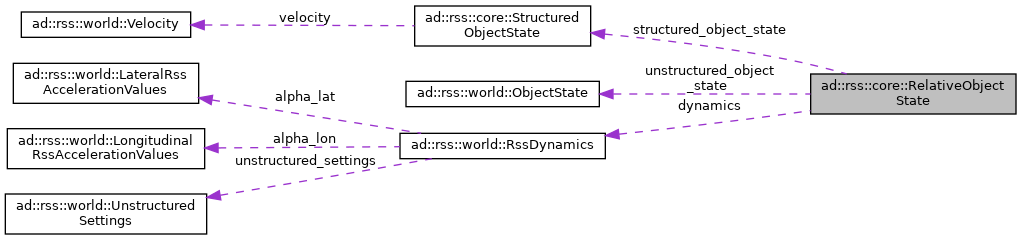

Collaboration diagram for ad::rss::core::RelativeObjectState:

Public Types
typedef std::shared_ptr< RelativeObjectState >	Ptr
	Smart pointer on RelativeObjectState.
typedef std::shared_ptr< RelativeObjectState const >	ConstPtr
	Smart pointer on constant RelativeObjectState.

Public Member Functions
	RelativeObjectState ()=default
	standard constructor
	~RelativeObjectState ()=default
	standard destructor
	RelativeObjectState (const RelativeObjectState &other)=default
	standard copy constructor
	RelativeObjectState (RelativeObjectState &&other)=default
	standard move constructor
RelativeObjectState &	operator= (const RelativeObjectState &other)=default
	standard assignment operator More...
RelativeObjectState &	operator= (RelativeObjectState &&other)=default
	standard move operator More...
bool	operator== (const RelativeObjectState &other) const
	standard comparison operator More...
bool	operator!= (const RelativeObjectState &other) const
	standard comparison operator More...

Public Attributes
::ad::rss::world::ObjectType	object_type
::ad::rss::world::RssDynamics	dynamics
::ad::rss::world::ObjectState	unstructured_object_state
::ad::rss::core::StructuredObjectState	structured_object_state

Detailed Description

DataType RelativeObjectState.

The state of an object with structured and unstructured constellation data. The state consists of the object type, the dynamics, structured and unstructured object states.

Member Function Documentation

operator!=()

bool ad::rss::core::RelativeObjectState::operator!= ( const RelativeObjectState &  other ) const

inline

standard comparison operator

Parameters

[in]

other

Other RelativeObjectState.

Returns

true if both RelativeObjectState are different

operator=() [1/2]

RelativeObjectState& ad::rss::core::RelativeObjectState::operator= ( const RelativeObjectState &  other )

default

standard assignment operator

Parameters

[in]

other

Other RelativeObjectState

Returns

Reference to this RelativeObjectState.

operator=() [2/2]

RelativeObjectState& ad::rss::core::RelativeObjectState::operator= ( RelativeObjectState &&  other )

default

standard move operator

Parameters

[in]

other

Other RelativeObjectState

Returns

Reference to this RelativeObjectState.

operator==()

bool ad::rss::core::RelativeObjectState::operator== ( const RelativeObjectState &  other ) const

inline

standard comparison operator

Parameters

[in]

other

Other RelativeObjectState

Returns

true if both RelativeObjectState are equal

Member Data Documentation

dynamics

::ad::rss::world::RssDynamics ad::rss::core::RelativeObjectState::dynamics

The constellation specific dynamics.

object_type

::ad::rss::world::ObjectType ad::rss::core::RelativeObjectState::object_type

The type of object.

structured_object_state

::ad::rss::core::StructuredObjectState ad::rss::core::RelativeObjectState::structured_object_state

The state of the object required to perform structured constellation calculations.

unstructured_object_state

::ad::rss::world::ObjectState ad::rss::core::RelativeObjectState::unstructured_object_state

The state of the object required to perform unstructured constellation calculations.

---

The documentation for this struct was generated from the following file:

• generated/include/ad/rss/core/RelativeObjectState.hpp
