Base class to represent a Simics register. More...

#include <register.h>

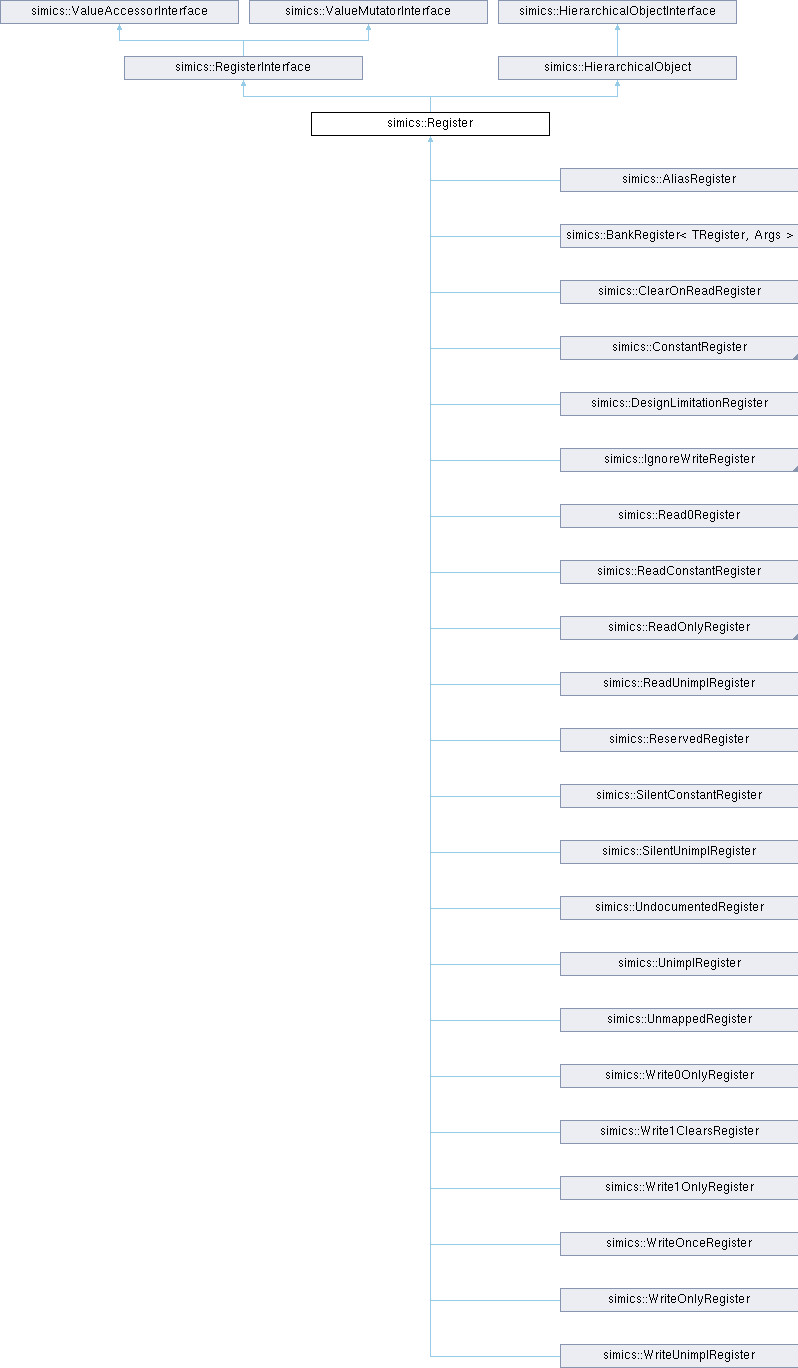

Inheritance diagram for simics::Register:

Public Member Functions
	Register (MappableConfObject *dev_obj, const std::string &hierarchical_name)

	Register (const Register &)=delete

Register &	operator= (const Register &)=delete

	Register (Register &&rhs)

Register &	operator= (Register &&rhs)

virtual	~Register ()=default

std::string_view	name () const override

const std::string &	hierarchical_name () const override

const std::string &	description () const override

MappableConfObject *	dev_obj () const override

ConfObjectRef	bank_obj_ref () const override

unsigned	number_of_bytes () const override

void	init (std::string_view desc, unsigned number_of_bytes, uint64_t init_val) override
	Initialize the register with a description, size in bytes and an initial value.

void	reset () override
	Reset to the initial value.

bool	is_read_only () const override

bool	is_mapped () const override

void	set_byte_pointers (const register_memory_t &byte_pointers) override
	Set the byte address of the register.

uint64_t	get () const override

void	set (uint64_t value) override

uint64_t	read (uint64_t enabled_bits) override

void	write (uint64_t value, uint64_t enabled_bits) override

void	parse_field (const field_t &f) override
	Parse the field information.

std::vector< field_t >	fields_info () const override

BankInterface *	parent () const override

Public Member Functions inherited from simics::RegisterInterface
virtual	~RegisterInterface ()=default

virtual std::string_view	name () const =0
	Get the name of the register without level delimiters.

virtual MappableConfObject *	dev_obj () const =0
	Get the device object.

virtual const std::string &	description () const =0
	Get the description of the register.

virtual const std::string &	hierarchical_name () const =0
	Get the full name of the register including bank name.

virtual ConfObjectRef	bank_obj_ref () const =0
	Get the bank object.

virtual unsigned	number_of_bytes () const =0

virtual void	init (std::string_view desc, unsigned number_of_bytes, uint64_t init_val)=0
	Initialize the register with a description, size in bytes and an initial value.

virtual void	reset ()=0
	Reset to the initial value.

virtual bool	is_read_only () const =0

virtual bool	is_mapped () const =0

virtual void	parse_field (const field_t &f)=0
	Parse the field information.

virtual void	add_field (std::string_view field_name, std::string_view desc, Offset offset, BitWidth width)=0
	Add a field to the register.

virtual std::vector< field_t >	fields_info () const =0

virtual BankInterface *	parent () const =0

virtual void	set_byte_pointers (const register_memory_t &byte_pointers)=0
	Set the byte address of the register.

Public Member Functions inherited from simics::ValueAccessorInterface
virtual	~ValueAccessorInterface ()=default

virtual uint64_t	get () const =0

virtual uint64_t	read (uint64_t enabled_bits)=0

Public Member Functions inherited from simics::ValueMutatorInterface
virtual	~ValueMutatorInterface ()=default

virtual void	set (uint64_t value)=0

virtual void	write (uint64_t value, uint64_t enabled_bits)=0

Public Member Functions inherited from simics::HierarchicalObject
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name)
	Constructor for HierarchicalObject.

virtual	~HierarchicalObject ()

	HierarchicalObject (const HierarchicalObject &)=delete

HierarchicalObject &	operator= (const HierarchicalObject &)=delete

	HierarchicalObject (HierarchicalObject &&rhs) noexcept

HierarchicalObject &	operator= (HierarchicalObject &&rhs) noexcept

template<typename T >
T *	dev_ptr ()

const std::string &	hierarchical_name () const override

std::string_view	name () const override

const std::string &	description () const override

void	set_description (std::string_view desc) override

Level	hierarchy_level () const override

std::string_view	bank_name () const override

MappableConfObject *	dev_obj () const override

ConfObjectRef	bank_obj_ref () const override

std::string_view	parent_name () const override

FieldInterface *	lookup_field (const std::string &name) const override

RegisterInterface *	lookup_register (const std::string &name) const override

BankInterface *	lookup_bank (const std::string &name) const override

virtual const std::string &	hierarchical_name () const =0

virtual std::string_view	name () const =0

virtual const std::string &	description () const =0

virtual void	set_description (std::string_view desc)=0

virtual Level	hierarchy_level () const =0

virtual std::string_view	bank_name () const =0

virtual MappableConfObject *	dev_obj () const =0

virtual ConfObjectRef	bank_obj_ref () const =0

virtual std::string_view	parent_name () const =0

virtual FieldInterface *	lookup_field (const std::string &name) const =0

virtual RegisterInterface *	lookup_register (const std::string &name) const =0

virtual BankInterface *	lookup_bank (const std::string &name) const =0

Static Public Member Functions
static std::size_t	offset (const RegisterInterface *reg_iface)
	Utility function to get the offset of the register, returns size_t(-1) when register is not mapped.

Static Public Member Functions inherited from simics::HierarchicalObject
static bool	is_valid_hierarchical_name (std::string_view name)

static std::string_view::size_type	level_of_hierarchical_name (std::string_view name)

Protected Member Functions
	Register (BankInterface *parent, std::string_view reg_name)

void	add_field (std::string_view field_name, std::string_view desc, Offset offset, BitWidth width) override
	Add a field to the register.

void	set_init_value (uint64_t init_val)

Friends
std::ostream &	operator<< (std::ostream &stream, const Register &reg)

Additional Inherited Members
Static Public Attributes inherited from simics::HierarchicalObject
static const uint64_t	Register_Read {1}
	Log group ID for Register_Read and Register_Write is fixed.

static const uint64_t	Register_Write {2}

static const uint64_t	Register_Read_Exception {3}

static const uint64_t	Register_Write_Exception {4}

Detailed Description

Base class to represent a Simics register.

Register with default behavior which allows access to any bit, without any side-effects.

Constructor & Destructor Documentation

◆ Register() [1/4]

simics::Register::Register	(	MappableConfObject *	dev_obj,
		const std::string &	hierarchical_name
	)

Parameters

dev_obj	is the device object which contains the register
hierarchical_name	begins with the bank name, e.g, "bankA.registerB"

◆ Register() [2/4]

simics::Register::Register ( const Register & )

delete

◆ Register() [3/4]

simics::Register::Register ( Register && rhs )

◆ ~Register()

virtual simics::Register::~Register ( )

virtualdefault

◆ Register() [4/4]

simics::Register::Register	(	BankInterface *	parent,
		std::string_view	reg_name
	)

protected

Parameters

parent	is the parent bank interface
reg_name	is the name of the register, e.g., "r0"

Member Function Documentation

◆ add_field()

void simics::Register::add_field	(	std::string_view	field_name,
		std::string_view	desc,
		Offset	offset,
		BitWidth	width
	)

overrideprotectedvirtual

Add a field to the register.

Implements simics::RegisterInterface.

◆ bank_obj_ref()

ConfObjectRef simics::Register::bank_obj_ref ( ) const

overridevirtual

Returns: the bank ConfObjectRef that the hierarchical object associated with

Reimplemented from simics::HierarchicalObject.

◆ description()

const std::string & simics::Register::description ( ) const

overridevirtual

Returns: the description of the object

Reimplemented from simics::HierarchicalObject.

◆ dev_obj()

MappableConfObject * simics::Register::dev_obj ( ) const

overridevirtual

Returns: the device object holds the bank

Reimplemented from simics::HierarchicalObject.

◆ fields_info()

std::vector< field_t > simics::Register::fields_info ( ) const

overridevirtual

Returns: information of fields in the register

Implements simics::RegisterInterface.

◆ get()

uint64_t simics::Register::get ( ) const

overridevirtual

Implements simics::ValueAccessorInterface.

◆ hierarchical_name()

const std::string & simics::Register::hierarchical_name ( ) const

overridevirtual

Returns: the full name of the object starts with the bank name

Reimplemented from simics::HierarchicalObject.

◆ init()

void simics::Register::init	(	std::string_view	desc,
		unsigned	number_of_bytes,
		uint64_t	init_val
	)

overridevirtual

Initialize the register with a description, size in bytes and an initial value.

Typically called after the register is instantiated.

Implements simics::RegisterInterface.

◆ is_mapped()

bool simics::Register::is_mapped ( ) const

overridevirtual

Returns: if the register is mapped with an offset on the bank

Implements simics::RegisterInterface.

◆ is_read_only()

bool simics::Register::is_read_only ( ) const

overridevirtual

Returns: if the register is read-only

Implements simics::RegisterInterface.

◆ name()

std::string_view simics::Register::name ( ) const

overridevirtual

Returns: the name of the object only

Reimplemented from simics::HierarchicalObject.

◆ number_of_bytes()

unsigned simics::Register::number_of_bytes ( ) const

overridevirtual

Returns: the register size in bytes

Implements simics::RegisterInterface.

◆ offset()

static std::size_t simics::Register::offset ( const RegisterInterface * reg_iface )

static

Utility function to get the offset of the register, returns size_t(-1) when register is not mapped.

◆ operator=() [1/2]

Register & simics::Register::operator= ( const Register & )

delete

◆ operator=() [2/2]

Register & simics::Register::operator= ( Register && rhs )

◆ parent()

BankInterface * simics::Register::parent ( ) const

overridevirtual

Returns: the parent bank interface

Implements simics::RegisterInterface.

◆ parse_field()

void simics::Register::parse_field ( const field_t & f )

overridevirtual

Parse the field information.

Add the field or field array into the resource map. The field reuses the memory allocated for the enclosing register. offset 0 is always the least significant bit regardless of bit order e.g. 2 bytes value 0b10100111 | | offset:7 offset:0 => width = 8

Implements simics::RegisterInterface.

◆ read()

uint64_t simics::Register::read ( uint64_t enabled_bits )

overridevirtual

Implements simics::ValueAccessorInterface.

◆ reset()

void simics::Register::reset ( )

overridevirtual

Reset to the initial value.

Implements simics::RegisterInterface.

◆ set()

void simics::Register::set ( uint64_t value )

overridevirtual

Implements simics::ValueMutatorInterface.

◆ set_byte_pointers()

void simics::Register::set_byte_pointers ( const register_memory_t & byte_pointers )

overridevirtual

Set the byte address of the register.

Implements simics::RegisterInterface.

◆ set_init_value()

void simics::Register::set_init_value ( uint64_t init_val )

protected

◆ write()

void simics::Register::write	(	uint64_t	value,
		uint64_t	enabled_bits
	)

overridevirtual

Implements simics::ValueMutatorInterface.

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	stream,
		const Register &	reg
	)

friend

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/register.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Register() [1/4]

◆ Register() [2/4]

◆ Register() [3/4]

◆ ~Register()

◆ Register() [4/4]

Member Function Documentation

◆ add_field()

◆ bank_obj_ref()

◆ description()

◆ dev_obj()

◆ fields_info()

◆ get()

◆ hierarchical_name()

◆ init()

◆ is_mapped()

◆ is_read_only()

◆ name()

◆ number_of_bytes()

◆ offset()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ parent()

◆ parse_field()

◆ read()

◆ reset()

◆ set()

◆ set_byte_pointers()

◆ set_init_value()

◆ write()

Friends And Related Function Documentation

◆ operator<<
