simics::ValueAccessorInterface Class Referenceabstract

#include <value-accessor-interface.h>

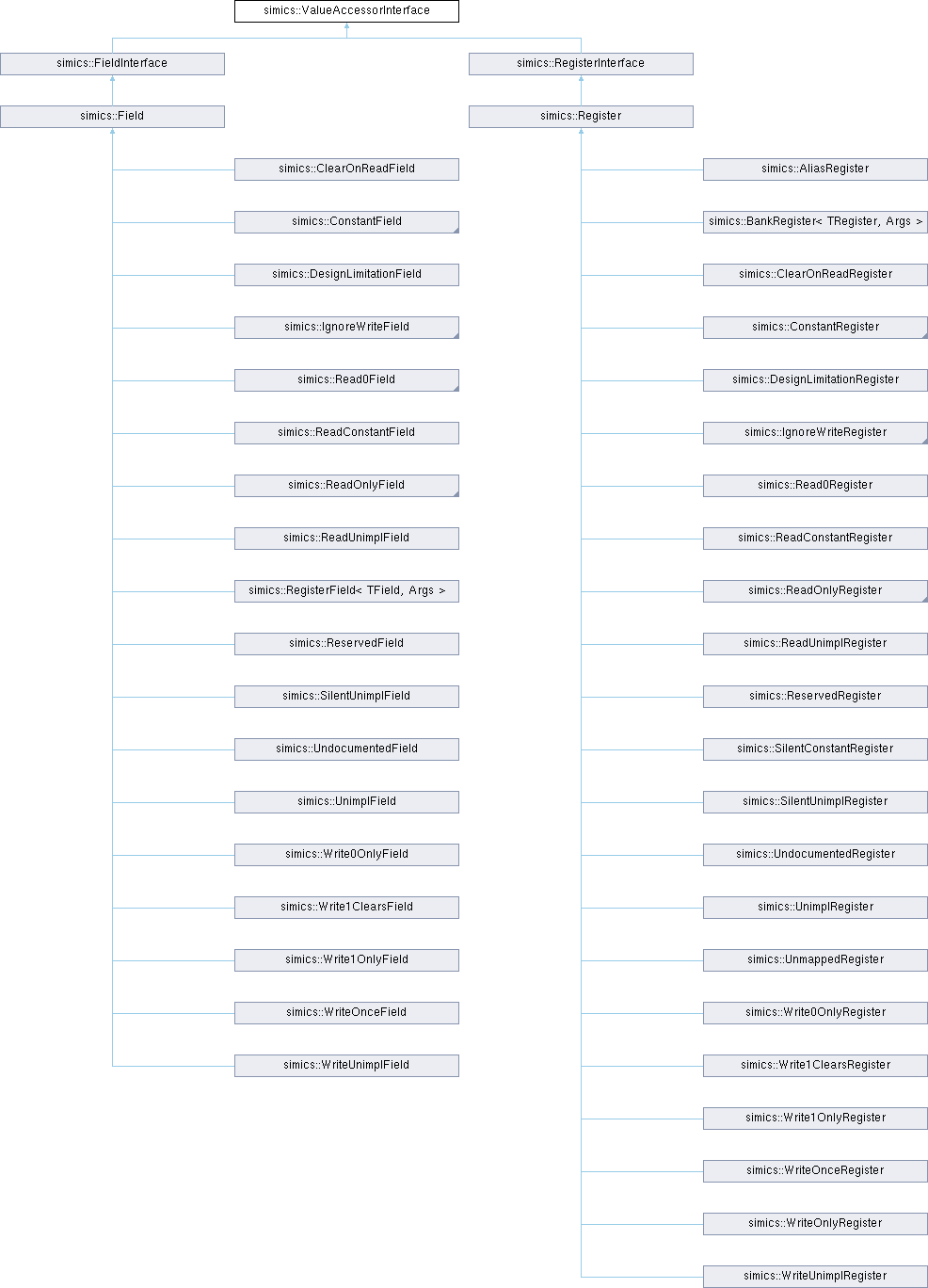

Inheritance diagram for simics::ValueAccessorInterface:
simics::FieldInterface simics::RegisterInterface simics::Field simics::Register simics::ClearOnReadField simics::ConstantField simics::DesignLimitationField simics::IgnoreWriteField simics::Read0Field simics::ReadConstantField simics::ReadOnlyField simics::ReadUnimplField simics::RegisterField< TField, Args > simics::ReservedField simics::SilentUnimplField simics::UndocumentedField simics::UnimplField simics::Write0OnlyField simics::Write1ClearsField simics::Write1OnlyField simics::WriteOnceField simics::WriteUnimplField simics::AliasRegister simics::BankRegister< TRegister, Args > simics::ClearOnReadRegister simics::ConstantRegister simics::DesignLimitationRegister simics::IgnoreWriteRegister simics::Read0Register simics::ReadConstantRegister simics::ReadOnlyRegister simics::ReadUnimplRegister simics::ReservedRegister simics::SilentConstantRegister simics::SilentUnimplRegister simics::UndocumentedRegister simics::UnimplRegister simics::UnmappedRegister simics::Write0OnlyRegister simics::Write1ClearsRegister simics::Write1OnlyRegister simics::WriteOnceRegister simics::WriteOnlyRegister simics::WriteUnimplRegister

Public Member Functions

virtual ~ValueAccessorInterface ()=default

virtual uint64_t get () const =0

virtual uint64_t read (uint64_t enabled_bits)=0


Constructor & Destructor Documentation

◆ ~ValueAccessorInterface()

virtual simics::ValueAccessorInterface::~ValueAccessorInterface ( )
virtualdefault

Member Function Documentation

◆ get()

virtual uint64_t simics::ValueAccessorInterface::get ( ) const
pure virtual

Implemented in simics::Field, simics::AliasRegister, and simics::Register.

◆ read()

virtual uint64_t simics::ValueAccessorInterface::read ( uint64_t  enabled_bits)
pure virtual

Implemented in simics::Read0Field, simics::WriteOnlyField, simics::ClearOnReadField, simics::ReadConstantField, simics::IgnoreField, simics::ReadUnimplField, simics::UnimplField, simics::SilentUnimplField, simics::UndocumentedField, simics::ReadOnlyClearOnReadField, simics::Field, simics::Read0Register, simics::WriteOnlyRegister, simics::ClearOnReadRegister, simics::ReadConstantRegister, simics::IgnoreRegister, simics::ReadUnimplRegister, simics::UnimplRegister, simics::SilentUnimplRegister, simics::UndocumentedRegister, simics::AliasRegister, simics::ReadOnlyClearOnReadRegister, and simics::Register.

The documentation for this class was generated from the following file:
