C++ Device API Reference Manual
Reference documentation for the Simics C++ Device API.

Loading...
Searching...
No Matches
Public Member Functions | List of all members
simics::ValueMutatorInterface Class Referenceabstract

#include <value-mutator-interface.h>

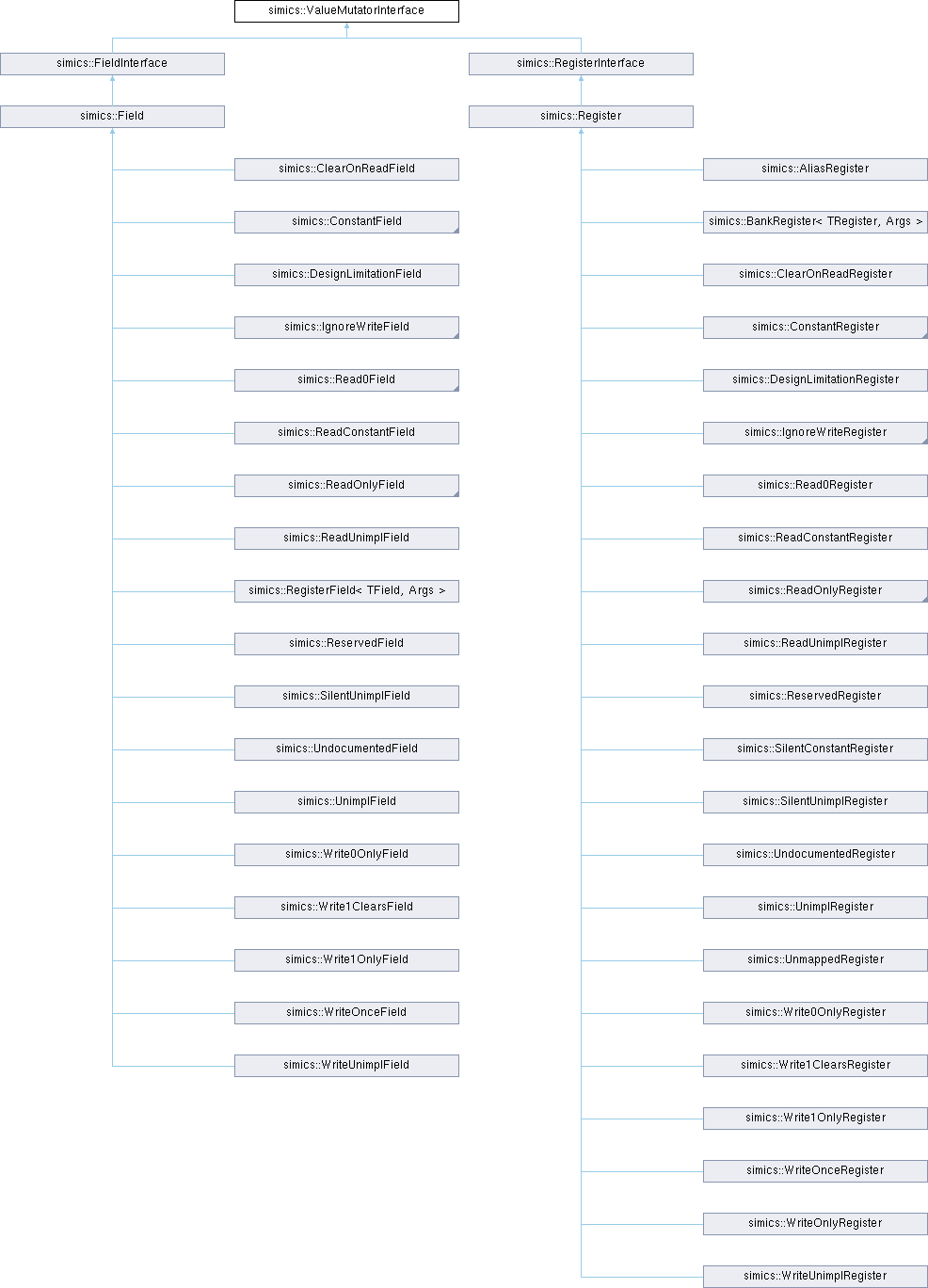

Inheritance diagram for simics::ValueMutatorInterface:
simics::FieldInterface simics::RegisterInterface simics::Field simics::Register simics::ClearOnReadField simics::ConstantField simics::DesignLimitationField simics::IgnoreWriteField simics::Read0Field simics::ReadConstantField simics::ReadOnlyField simics::ReadUnimplField simics::RegisterField< TField, Args > simics::ReservedField simics::SilentUnimplField simics::UndocumentedField simics::UnimplField simics::Write0OnlyField simics::Write1ClearsField simics::Write1OnlyField simics::WriteOnceField simics::WriteUnimplField simics::AliasRegister simics::BankRegister< TRegister, Args > simics::ClearOnReadRegister simics::ConstantRegister simics::DesignLimitationRegister simics::IgnoreWriteRegister simics::Read0Register simics::ReadConstantRegister simics::ReadOnlyRegister simics::ReadUnimplRegister simics::ReservedRegister simics::SilentConstantRegister simics::SilentUnimplRegister simics::UndocumentedRegister simics::UnimplRegister simics::UnmappedRegister simics::Write0OnlyRegister simics::Write1ClearsRegister simics::Write1OnlyRegister simics::WriteOnceRegister simics::WriteOnlyRegister simics::WriteUnimplRegister

Public Member Functions

virtual ~ValueMutatorInterface ()=default

virtual void set (uint64_t value)=0

virtual void write (uint64_t value, uint64_t enabled_bits)=0


Constructor & Destructor Documentation

◆ ~ValueMutatorInterface()

virtual simics::ValueMutatorInterface::~ValueMutatorInterface ( )
virtualdefault

Member Function Documentation

◆ set()

virtual void simics::ValueMutatorInterface::set ( uint64_t  value)
pure virtual

Implemented in simics::Field, simics::AliasRegister, and simics::Register.

◆ write()

virtual void simics::ValueMutatorInterface::write ( uint64_t  value,
uint64_t  enabled_bits
)
pure virtual

Implemented in simics::IgnoreWriteField, simics::ReadOnlyField, simics::Write1ClearsField, simics::Write1OnlyField, simics::Write0OnlyField, simics::ConstantField, simics::SilentConstantField, simics::ReservedField, simics::UnimplField, simics::WriteUnimplField, simics::SilentUnimplField, simics::UndocumentedField, simics::WriteOnceField, simics::Field, simics::IgnoreWriteRegister, simics::ReadOnlyRegister, simics::Write1ClearsRegister, simics::Write1OnlyRegister, simics::Write0OnlyRegister, simics::ConstantRegister, simics::SilentConstantRegister, simics::ReservedRegister, simics::UnimplRegister, simics::WriteUnimplRegister, simics::SilentUnimplRegister, simics::UndocumentedRegister, simics::AliasRegister, simics::WriteOnceRegister, and simics::Register.

The documentation for this class was generated from the following file:
