Base class to represent a Simics field. More...

#include <field.h>

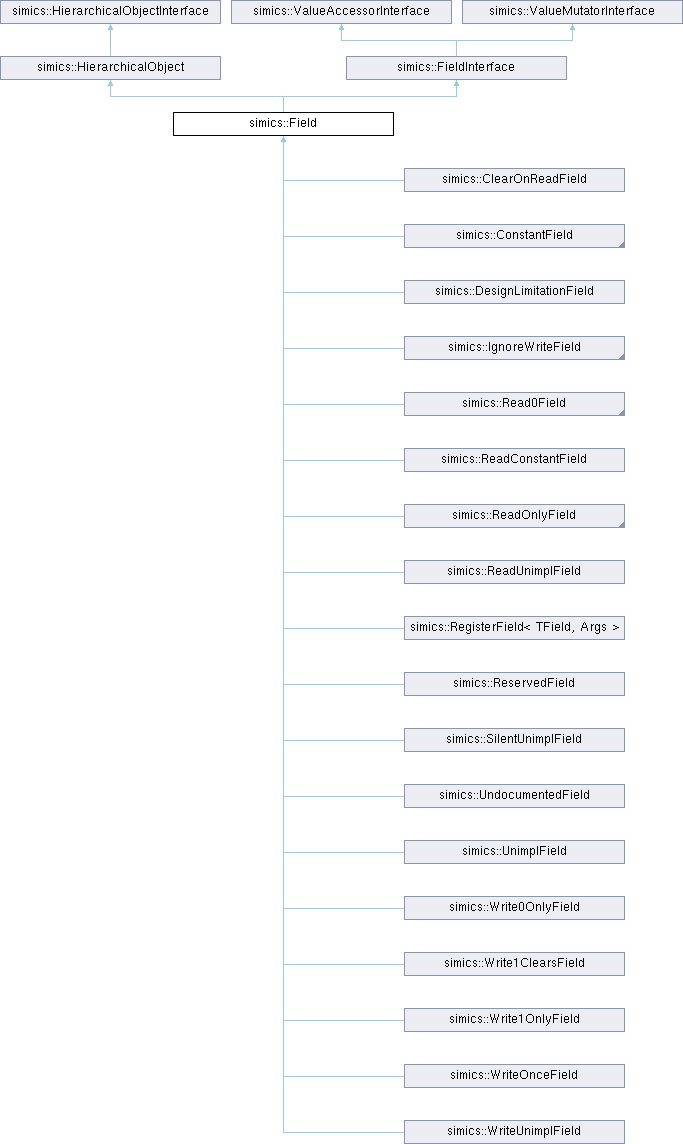

Inheritance diagram for simics::Field:

Public Member Functions
	Field (MappableConfObject *dev_obj, const std::string &name)

	Field (RegisterInterface *parent, std::string_view field_name)

	Field (const Field &)=delete

Field &	operator= (const Field &)=delete

	Field (Field &&rhs)

Field &	operator= (Field &&rhs)

virtual	~Field ()=default

std::string_view	name () const override
	Get the name of the field without level delimiters.

const std::string &	description () const override
	Get the description of the field.

unsigned	number_of_bits () const override

void	init (std::string_view desc, const bits_type &bits, int8_t offset) override
	Initialize the field with a description, size in bits and an offset.

RegisterInterface *	parent () const override

uint64_t	get () const override

void	set (uint64_t value) override

uint64_t	read (uint64_t enabled_bits) override

void	write (uint64_t value, uint64_t enabled_bits) override

size_t	offset () const

void	set_bits (const bits_type &bits)

Public Member Functions inherited from simics::HierarchicalObject
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name)
	Constructor for HierarchicalObject.

virtual	~HierarchicalObject ()

	HierarchicalObject (const HierarchicalObject &)=delete

HierarchicalObject &	operator= (const HierarchicalObject &)=delete

	HierarchicalObject (HierarchicalObject &&rhs) noexcept

HierarchicalObject &	operator= (HierarchicalObject &&rhs) noexcept

template<typename T >
T *	dev_ptr ()

const std::string &	hierarchical_name () const override

std::string_view	name () const override

const std::string &	description () const override

void	set_description (std::string_view desc) override

Level	hierarchy_level () const override

std::string_view	bank_name () const override

MappableConfObject *	dev_obj () const override

ConfObjectRef	bank_obj_ref () const override

std::string_view	parent_name () const override

FieldInterface *	lookup_field (const std::string &name) const override

RegisterInterface *	lookup_register (const std::string &name) const override

BankInterface *	lookup_bank (const std::string &name) const override

virtual const std::string &	hierarchical_name () const =0

virtual std::string_view	name () const =0

virtual const std::string &	description () const =0

virtual void	set_description (std::string_view desc)=0

virtual Level	hierarchy_level () const =0

virtual std::string_view	bank_name () const =0

virtual MappableConfObject *	dev_obj () const =0

virtual ConfObjectRef	bank_obj_ref () const =0

virtual std::string_view	parent_name () const =0

virtual FieldInterface *	lookup_field (const std::string &name) const =0

virtual RegisterInterface *	lookup_register (const std::string &name) const =0

virtual BankInterface *	lookup_bank (const std::string &name) const =0

Public Member Functions inherited from simics::FieldInterface
virtual	~FieldInterface ()=default

virtual std::string_view	name () const =0
	Get the name of the field without level delimiters.

virtual const std::string &	description () const =0
	Get the description of the field.

virtual unsigned	number_of_bits () const =0

virtual void	init (std::string_view desc, const bits_type &bits, int8_t offset)=0
	Initialize the field with a description, size in bits and an offset.

virtual RegisterInterface *	parent () const =0

Public Member Functions inherited from simics::ValueAccessorInterface
virtual	~ValueAccessorInterface ()=default

virtual uint64_t	get () const =0

virtual uint64_t	read (uint64_t enabled_bits)=0

Public Member Functions inherited from simics::ValueMutatorInterface
virtual	~ValueMutatorInterface ()=default

virtual void	set (uint64_t value)=0

virtual void	write (uint64_t value, uint64_t enabled_bits)=0

Additional Inherited Members
Static Public Member Functions inherited from simics::HierarchicalObject
static bool	is_valid_hierarchical_name (std::string_view name)

static std::string_view::size_type	level_of_hierarchical_name (std::string_view name)

Static Public Attributes inherited from simics::HierarchicalObject
static const uint64_t	Register_Read {1}
	Log group ID for Register_Read and Register_Write is fixed.

static const uint64_t	Register_Write {2}

static const uint64_t	Register_Read_Exception {3}

static const uint64_t	Register_Write_Exception {4}

Detailed Description

Base class to represent a Simics field.

Field with default behavior which allows access to any bit, without any side-effects.

Constructor & Destructor Documentation

◆ Field() [1/4]

simics::Field::Field	(	MappableConfObject *	dev_obj,
		const std::string &	name
	)

◆ Field() [2/4]

simics::Field::Field	(	RegisterInterface *	parent,
		std::string_view	field_name
	)

◆ Field() [3/4]

simics::Field::Field ( const Field & )

delete

◆ Field() [4/4]

simics::Field::Field ( Field && rhs )

◆ ~Field()

virtual simics::Field::~Field ( )

virtualdefault

Member Function Documentation

◆ description()

const std::string & simics::Field::description ( ) const

overridevirtual

Get the description of the field.

Returns: A reference to the string containing the field description.

Implements simics::FieldInterface.

◆ get()

uint64_t simics::Field::get ( ) const

overridevirtual

Implements simics::ValueAccessorInterface.

◆ init()

void simics::Field::init	(	std::string_view	desc,
		const bits_type &	bits,
		int8_t	offset
	)

overridevirtual

Initialize the field with a description, size in bits and an offset.

Typically called after the field is instantiated.

Parameters

offset is the offset of the first bit in the containing register

Implements simics::FieldInterface.

◆ name()

std::string_view simics::Field::name ( ) const

overridevirtual

Get the name of the field without level delimiters.

Returns: A string view representing the field name only.

Implements simics::FieldInterface.

◆ number_of_bits()

unsigned simics::Field::number_of_bits ( ) const

overridevirtual

Returns: the number of bits for this field

Implements simics::FieldInterface.

◆ offset()

size_t simics::Field::offset ( ) const

◆ operator=() [1/2]

Field & simics::Field::operator= ( const Field & )

delete

◆ operator=() [2/2]

Field & simics::Field::operator= ( Field && rhs )

◆ parent()

RegisterInterface * simics::Field::parent ( ) const

overridevirtual

Returns: the parent register interface

Implements simics::FieldInterface.

◆ read()

uint64_t simics::Field::read ( uint64_t enabled_bits )

overridevirtual

Implements simics::ValueAccessorInterface.

◆ set()

void simics::Field::set ( uint64_t value )

overridevirtual

Implements simics::ValueMutatorInterface.

◆ set_bits()

void simics::Field::set_bits ( const bits_type & bits )

◆ write()

void simics::Field::write	(	uint64_t	value,
		uint64_t	enabled_bits
	)

overridevirtual

Implements simics::ValueMutatorInterface.

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/field.h
