simics::systemc::simics2tlm::SpiSlaveGasketAdapter Class Reference

Adapter for SpiSlave gasket. More...

#include <spi_slave_gasket_adapter.h>

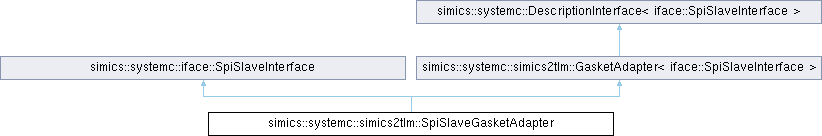

Inheritance diagram for simics::systemc::simics2tlm::SpiSlaveGasketAdapter:

Public Member Functions
	SpiSlaveGasketAdapter (SpiSlaveInterface *spi_slave, iface::SimulationInterface *simulation, ConnectBase *spi_master)
virtual void	spi_request (int first, int last, const uint8 *data_ptr, size_t data_length)
virtual void	connect_master (conf_object_t *master, const char *port, serial_peripheral_interface_flags_t flags)
virtual void	disconnect_master (conf_object_t *master)
simics2tlm::GasketOwner *	gasket_owner () const override
int	flags ()
	Return the flags used when connecting the master in integer, returns -1 for invalid value.
Public Member Functions inherited from simics::systemc::iface::SpiSlaveInterface
virtual void	spi_request (int first, int last, const uint8 *data_ptr, size_t data_length)=0
virtual void	connect_master (conf_object_t *master, const char *port, serial_peripheral_interface_flags_t flags)=0
virtual void	disconnect_master (conf_object_t *master)=0
virtual	~SpiSlaveInterface ()
Public Member Functions inherited from simics::systemc::simics2tlm::GasketAdapter< iface::SpiSlaveInterface >
virtual	~GasketAdapter ()
std::vector< std::string >	description (DescriptionType type) override
virtual simics2tlm::GasketOwner *	gasket_owner () const=0
Public Member Functions inherited from simics::systemc::DescriptionInterface< TBase >
virtual	~DescriptionInterface ()
virtual std::vector< std::string >	description (DescriptionType type)=0

Additional Inherited Members
Protected Member Functions inherited from simics::systemc::simics2tlm::GasketAdapter< iface::SpiSlaveInterface >
std::vector< std::string >	description (GasketInterface::Ptr gasket_ptr)
void	append (std::string *result, std::string s)

Detailed Description

Adapter for SpiSlave gasket.

Constructor & Destructor Documentation

SpiSlaveGasketAdapter()

simics::systemc::simics2tlm::SpiSlaveGasketAdapter::SpiSlaveGasketAdapter ( SpiSlaveInterface *  spi_slave, iface::SimulationInterface *  simulation, ConnectBase *  spi_master  )

inline

Member Function Documentation

connect_master()

virtual void simics::systemc::simics2tlm::SpiSlaveGasketAdapter::connect_master ( conf_object_t *  master, const char *  port, serial_peripheral_interface_flags_t  flags  )

inlinevirtual

Implements simics::systemc::iface::SpiSlaveInterface.

disconnect_master()

virtual void simics::systemc::simics2tlm::SpiSlaveGasketAdapter::disconnect_master ( conf_object_t *  master )

inlinevirtual

Implements simics::systemc::iface::SpiSlaveInterface.

flags()

int simics::systemc::simics2tlm::SpiSlaveGasketAdapter::flags ( )

inline

Return the flags used when connecting the master in integer, returns -1 for invalid value.

gasket_owner()

simics2tlm::GasketOwner * simics::systemc::simics2tlm::SpiSlaveGasketAdapter::gasket_owner ( ) const

inlineoverridevirtual

Implements simics::systemc::simics2tlm::GasketAdapter< iface::SpiSlaveInterface >.

spi_request()

virtual void simics::systemc::simics2tlm::SpiSlaveGasketAdapter::spi_request ( int  first, int  last, const uint8 *  data_ptr, size_t  data_length  )

inlinevirtual

Implements simics::systemc::iface::SpiSlaveInterface.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/simics2tlm/spi_slave_gasket_adapter.h
