simics::systemc::simics2tlm::SpiSlave Class Reference

Class that implements the Simics serial_peripheral_interface_slave interface and translates it into a TLM transaction. More...

#include <spi_slave.h>

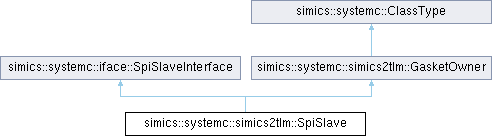

Inheritance diagram for simics::systemc::simics2tlm::SpiSlave:
simics::systemc::iface::SpiSlaveInterface simics::systemc::simics2tlm::GasketOwner simics::systemc::ClassType

Public Member Functions

virtual void spi_request (int first, int last, const uint8 *data_ptr, size_t data_length)

virtual void connect_master (conf_object_t *master, const char *port, serial_peripheral_interface_flags_t flags)

virtual void disconnect_master (conf_object_t *master)

- Public Member Functions inherited from simics::systemc::iface::SpiSlaveInterface
virtual void spi_request (int first, int last, const uint8 *data_ptr, size_t data_length)=0

virtual void connect_master (conf_object_t *master, const char *port, serial_peripheral_interface_flags_t flags)=0

virtual void disconnect_master (conf_object_t *master)=0

virtual ~SpiSlaveInterface ()

- Public Member Functions inherited from simics::systemc::simics2tlm::GasketOwner
 GasketOwner ()

 GasketOwner (const GasketOwner &)=delete

GasketOwner & operator= (const GasketOwner &)=delete

virtual ~GasketOwner ()=default

void set_gasket (GasketInterface::Ptr gasketInterface)

virtual void gasketUpdated ()

GasketInterface::Ptr gasket () const

- Public Member Functions inherited from simics::systemc::ClassType
 ClassType ()

std::string type () const

bool operator== (const ClassType &type) const

bool operator!= (const ClassType &type) const

bool operator< (const ClassType &type) const

template<class T >
T * get_interface ()

virtual ~ClassType ()


Additional Inherited Members

- Static Public Member Functions inherited from simics::systemc::ClassType
template<class T >
static ClassType typeForClass ()

- Protected Member Functions inherited from simics::systemc::ClassType
void set_type ()

- Protected Attributes inherited from simics::systemc::simics2tlm::GasketOwner
GasketInterface::Ptr gasket_

- Protected Attributes inherited from simics::systemc::ClassType
std::string type_

ClassType * implementor_


Detailed Description

Class that implements the Simics serial_peripheral_interface_slave interface and translates it into a TLM transaction.

Member Function Documentation

◆ connect_master()

virtual void simics::systemc::simics2tlm::SpiSlave::connect_master ( conf_object_t *  master,
const char *  port,
serial_peripheral_interface_flags_t  flags
)
inlinevirtual

Implements simics::systemc::iface::SpiSlaveInterface.

◆ disconnect_master()

virtual void simics::systemc::simics2tlm::SpiSlave::disconnect_master ( conf_object_t *  master)
inlinevirtual

Implements simics::systemc::iface::SpiSlaveInterface.

◆ spi_request()

virtual void simics::systemc::simics2tlm::SpiSlave::spi_request ( int  first,
int  last,
const uint8 *  data_ptr,
size_t  data_length
)
virtual

Implements simics::systemc::iface::SpiSlaveInterface.

The documentation for this class was generated from the following file:
