simics::systemc::iface::SimulationInterface Class Reference

Interface to the SystemC simulation. More...

#include <simulation_interface.h>

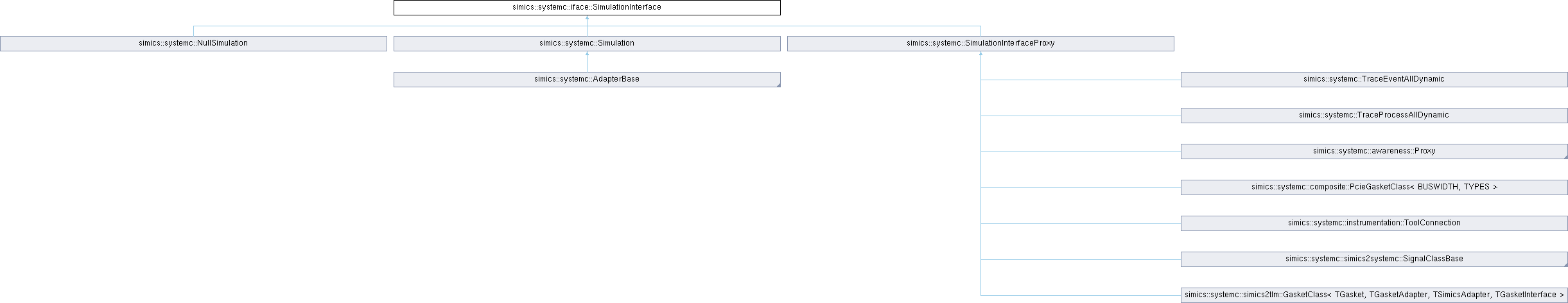

Inheritance diagram for simics::systemc::iface::SimulationInterface:

Public Member Functions
virtual	~SimulationInterface ()
virtual int	runDeltaPhase (int count)=0
virtual bool	runSimulation (sc_core::sc_time t)=0
virtual void	stopSimulation ()=0
virtual sc_core::sc_simcontext *	context () const =0
virtual ConfObjectRef	simics_object () const =0

Detailed Description

Interface to the SystemC simulation.

Constructor & Destructor Documentation

~SimulationInterface()

virtual simics::systemc::iface::SimulationInterface::~SimulationInterface ( )

inlinevirtual

Member Function Documentation

context()

virtual sc_core::sc_simcontext * simics::systemc::iface::SimulationInterface::context ( ) const

pure virtual

Implemented in simics::systemc::NullSimulation, simics::systemc::Simulation, and simics::systemc::SimulationInterfaceProxy.

runDeltaPhase()

virtual int simics::systemc::iface::SimulationInterface::runDeltaPhase ( int  count )

pure virtual

Implemented in simics::systemc::NullSimulation, simics::systemc::Simulation, and simics::systemc::SimulationInterfaceProxy.

runSimulation()

virtual bool simics::systemc::iface::SimulationInterface::runSimulation ( sc_core::sc_time  t )

pure virtual

Implemented in simics::systemc::NullSimulation, simics::systemc::Simulation, and simics::systemc::SimulationInterfaceProxy.

simics_object()

virtual ConfObjectRef simics::systemc::iface::SimulationInterface::simics_object ( ) const

pure virtual

Implemented in simics::systemc::NullSimulation, simics::systemc::Simulation, and simics::systemc::SimulationInterfaceProxy.

stopSimulation()

virtual void simics::systemc::iface::SimulationInterface::stopSimulation ( )

pure virtual

Implemented in simics::systemc::NullSimulation, simics::systemc::Simulation, and simics::systemc::SimulationInterfaceProxy.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/simulation_interface.h
