simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter Class Reference

Adapter for I2cSlaveV2 gasket. More...

#include <i2c_slave_v2_gasket_adapter.h>

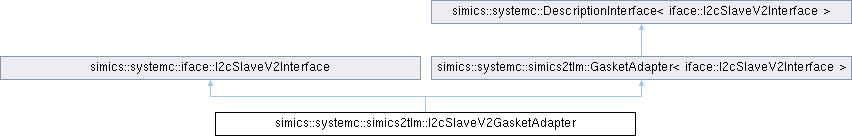

Inheritance diagram for simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter:

Public Member Functions
	I2cSlaveV2GasketAdapter (I2cSlaveV2Interface *i2cslavev2, iface::SimulationInterface *simulation)
void	start (uint8_t address) override
void	read () override
void	write (uint8_t value) override
void	stop () override
std::vector< uint8_t >	addresses () override
simics2tlm::GasketOwner *	gasket_owner () const override
Public Member Functions inherited from simics::systemc::iface::I2cSlaveV2Interface
virtual void	start (uint8_t address)=0
virtual void	read ()=0
virtual void	write (uint8_t value)=0
virtual void	stop ()=0
virtual std::vector< uint8_t >	addresses ()=0
virtual	~I2cSlaveV2Interface ()
Public Member Functions inherited from simics::systemc::simics2tlm::GasketAdapter< iface::I2cSlaveV2Interface >
virtual	~GasketAdapter ()
std::vector< std::string >	description (DescriptionType type) override
virtual simics2tlm::GasketOwner *	gasket_owner () const=0
Public Member Functions inherited from simics::systemc::DescriptionInterface< TBase >
virtual	~DescriptionInterface ()
virtual std::vector< std::string >	description (DescriptionType type)=0

Additional Inherited Members
Protected Member Functions inherited from simics::systemc::simics2tlm::GasketAdapter< iface::I2cSlaveV2Interface >
std::vector< std::string >	description (GasketInterface::Ptr gasket_ptr)
void	append (std::string *result, std::string s)

Detailed Description

Adapter for I2cSlaveV2 gasket.

Constructor & Destructor Documentation

I2cSlaveV2GasketAdapter()

simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter::I2cSlaveV2GasketAdapter ( I2cSlaveV2Interface *  i2cslavev2, iface::SimulationInterface *  simulation  )

inline

Member Function Documentation

addresses()

std::vector< uint8_t > simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter::addresses ( )

inlineoverridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

gasket_owner()

simics2tlm::GasketOwner * simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter::gasket_owner ( ) const

inlineoverridevirtual

Implements simics::systemc::simics2tlm::GasketAdapter< iface::I2cSlaveV2Interface >.

read()

void simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter::read ( )

inlineoverridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

start()

void simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter::start ( uint8_t  address )

inlineoverridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

stop()

void simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter::stop ( )

inlineoverridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

write()

void simics::systemc::simics2tlm::I2cSlaveV2GasketAdapter::write ( uint8_t  value )

inlineoverridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/simics2tlm/i2c_slave_v2_gasket_adapter.h
