Class that implements the Simics i2c_slave_v2 interface and translates it into a TLM transaction. More...

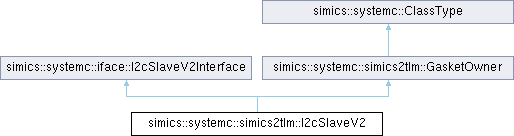

Inheritance diagram for simics::systemc::simics2tlm::I2cSlaveV2:

Public Member Functions
virtual void	gasketUpdated ()

void	start (uint8_t address)

void	read ()

void	write (uint8_t data)

void	stop ()

std::vector< uint8_t >	addresses ()

Public Member Functions inherited from simics::systemc::iface::I2cSlaveV2Interface
virtual void	start (uint8_t address)=0

virtual void	read ()=0

virtual void	write (uint8_t value)=0

virtual void	stop ()=0

virtual std::vector< uint8_t >	addresses ()=0

virtual	~I2cSlaveV2Interface ()

Public Member Functions inherited from simics::systemc::simics2tlm::GasketOwner
	GasketOwner ()

	GasketOwner (const GasketOwner &)=delete

GasketOwner &	operator= (const GasketOwner &)=delete

virtual	~GasketOwner ()=default

void	set_gasket (GasketInterface::Ptr gasketInterface)

virtual void	gasketUpdated ()

GasketInterface::Ptr	gasket () const

Public Member Functions inherited from simics::systemc::ClassType
	ClassType ()

std::string	type () const

bool	operator== (const ClassType &type) const

bool	operator!= (const ClassType &type) const

bool	operator< (const ClassType &type) const

template<class T >
T *	get_interface ()

virtual	~ClassType ()

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::ClassType
template<class T >
static ClassType	typeForClass ()

Protected Member Functions inherited from simics::systemc::ClassType
void	set_type ()

Protected Attributes inherited from simics::systemc::simics2tlm::GasketOwner
GasketInterface::Ptr	gasket_

Protected Attributes inherited from simics::systemc::ClassType
std::string	type_

ClassType *	implementor_
