simics::systemc::iface::PcieDeviceInterface Class Reference

Simics pcie_device interface. More...

#include <pcie_device_interface.h>

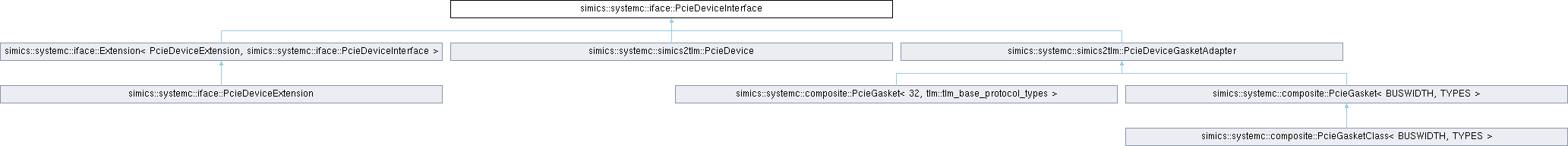

Inheritance diagram for simics::systemc::iface::PcieDeviceInterface:

Public Member Functions
virtual void	connected (conf_object_t *port_obj, uint16_t device_id)=0
virtual void	disconnected (conf_object_t *port_obj, uint16_t device_id)=0
virtual void	hot_reset ()=0

Detailed Description

Simics pcie_device interface.

Member Function Documentation

connected()

virtual void simics::systemc::iface::PcieDeviceInterface::connected ( conf_object_t *  port_obj, uint16_t  device_id  )

pure virtual

Implemented in simics::systemc::iface::PcieDeviceExtension, simics::systemc::simics2tlm::PcieDevice, simics::systemc::simics2tlm::PcieDeviceGasketAdapter, simics::systemc::composite::PcieGasket< BUSWIDTH, TYPES >, and simics::systemc::composite::PcieGasket< 32, tlm::tlm_base_protocol_types >.

disconnected()

virtual void simics::systemc::iface::PcieDeviceInterface::disconnected ( conf_object_t *  port_obj, uint16_t  device_id  )

pure virtual

Implemented in simics::systemc::iface::PcieDeviceExtension, simics::systemc::simics2tlm::PcieDevice, simics::systemc::simics2tlm::PcieDeviceGasketAdapter, simics::systemc::composite::PcieGasket< BUSWIDTH, TYPES >, and simics::systemc::composite::PcieGasket< 32, tlm::tlm_base_protocol_types >.

hot_reset()

virtual void simics::systemc::iface::PcieDeviceInterface::hot_reset ( )

pure virtual

Implemented in simics::systemc::iface::PcieDeviceExtension, simics::systemc::composite::PcieGasket< BUSWIDTH, TYPES >, simics::systemc::composite::PcieGasket< 32, tlm::tlm_base_protocol_types >, simics::systemc::simics2tlm::PcieDevice, and simics::systemc::simics2tlm::PcieDeviceGasketAdapter.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/pcie_device_interface.h
