Public Member Functions | List of all members
simics::systemc::simics2tlm::PcieDevice Class Reference

Class that implements the Simics pcie_device interface and translates it into a TLM transaction. More...

#include <pcie_device.h>

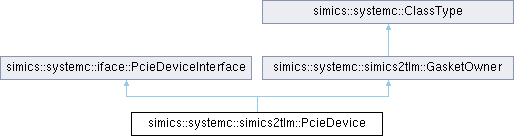

Inheritance diagram for simics::systemc::simics2tlm::PcieDevice:
simics::systemc::iface::PcieDeviceInterface simics::systemc::simics2tlm::GasketOwner simics::systemc::ClassType

Public Member Functions

virtual void gasketUpdated ()

void connected (conf_object_t *port_obj, uint16_t device_id) override

void disconnected (conf_object_t *port_obj, uint16_t device_id) override

void hot_reset () override

virtual void connected (conf_object_t *port_obj, uint16_t device_id)=0

virtual void disconnected (conf_object_t *port_obj, uint16_t device_id)=0

virtual void hot_reset ()=0

- Public Member Functions inherited from simics::systemc::simics2tlm::GasketOwner
 GasketOwner ()

 GasketOwner (const GasketOwner &)=delete

GasketOwner & operator= (const GasketOwner &)=delete

virtual ~GasketOwner ()=default

void set_gasket (GasketInterface::Ptr gasketInterface)

virtual void gasketUpdated ()

GasketInterface::Ptr gasket () const

- Public Member Functions inherited from simics::systemc::ClassType
 ClassType ()

std::string type () const

bool operator== (const ClassType &type) const

bool operator!= (const ClassType &type) const

bool operator< (const ClassType &type) const

template<class T >
T * get_interface ()

virtual ~ClassType ()


Additional Inherited Members

- Static Public Member Functions inherited from simics::systemc::ClassType
template<class T >
static ClassType typeForClass ()

- Protected Member Functions inherited from simics::systemc::ClassType
void set_type ()

- Protected Attributes inherited from simics::systemc::simics2tlm::GasketOwner
GasketInterface::Ptr gasket_

- Protected Attributes inherited from simics::systemc::ClassType
std::string type_

ClassType * implementor_


Detailed Description

Class that implements the Simics pcie_device interface and translates it into a TLM transaction.

Member Function Documentation

◆ connected()

void simics::systemc::simics2tlm::PcieDevice::connected ( conf_object_t *  port_obj,
uint16_t  device_id
)
overridevirtual

Implements simics::systemc::iface::PcieDeviceInterface.

◆ disconnected()

void simics::systemc::simics2tlm::PcieDevice::disconnected ( conf_object_t *  port_obj,
uint16_t  device_id
)
overridevirtual

Implements simics::systemc::iface::PcieDeviceInterface.

◆ gasketUpdated()

virtual void simics::systemc::simics2tlm::PcieDevice::gasketUpdated ( )
virtual

Reimplemented from simics::systemc::simics2tlm::GasketOwner.

◆ hot_reset()

void simics::systemc::simics2tlm::PcieDevice::hot_reset ( )
overridevirtual

Implements simics::systemc::iface::PcieDeviceInterface.

The documentation for this class was generated from the following file:
