simics::systemc::iface::PcieDeviceExtension Class Reference

Extension for Simics pcie_device interface. More...

#include <pcie_device_extension.h>

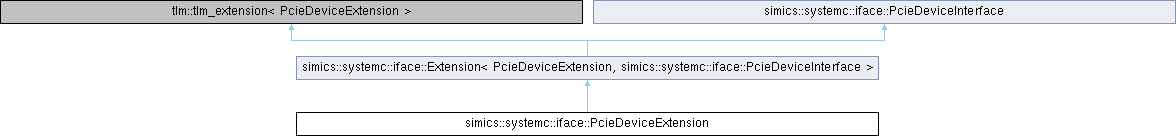

Inheritance diagram for simics::systemc::iface::PcieDeviceExtension:

Public Member Functions
virtual void	call (simics::systemc::iface::PcieDeviceInterface *device)
virtual void	connected (conf_object_t *port_obj, uint16_t device_id)
virtual void	disconnected (conf_object_t *port_obj, uint16_t device_id)
virtual void	hot_reset ()
Public Member Functions inherited from simics::systemc::iface::Extension< PcieDeviceExtension, simics::systemc::iface::PcieDeviceInterface >
	Extension ()
void	init (ExtensionSenderInterface *sender, tlm::tlm_generic_payload *payload)
	Deprecated, use the init(ExtensionSenderInterface *sender) instead.
void	init (ExtensionSenderInterface *sender)
void	send ()
void	method_call (simics::systemc::iface::PcieDeviceInterface *device)
void	method_call_ignore ()
types::AnyType	method_type ()
bool	valid ()
virtual tlm::tlm_extension_base *	clone () const
virtual void	copy_from (tlm::tlm_extension_base const &extension)
virtual	~Extension ()
virtual void	connected (conf_object_t *port_obj, uint16_t device_id)=0
virtual void	disconnected (conf_object_t *port_obj, uint16_t device_id)=0
virtual void	hot_reset ()=0

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::iface::Extension< PcieDeviceExtension, simics::systemc::iface::PcieDeviceInterface >
static ReceiverInterface *	createReceiver (simics::systemc::iface::PcieDeviceInterface *device)
static ReceiverInterface *	createIgnoreReceiver ()
virtual void	call (simics::systemc::iface::PcieDeviceInterface *device)=0
Protected Attributes inherited from simics::systemc::iface::Extension< PcieDeviceExtension, simics::systemc::iface::PcieDeviceInterface >
ExtensionSenderInterface *	sender_
types::AnyType	method_
std::vector< types::AnyType >	method_input_
types::AnyType	method_return_
types::AnyType	method_return_error_
int	method_call_count_
bool	suppress_error_
bool	valid_

Detailed Description

Extension for Simics pcie_device interface.

See base class for details.

Member Function Documentation

call()

virtual void simics::systemc::iface::PcieDeviceExtension::call ( simics::systemc::iface::PcieDeviceInterface *  device )

inlinevirtual

Implements simics::systemc::iface::Extension< PcieDeviceExtension, simics::systemc::iface::PcieDeviceInterface >.

connected()

virtual void simics::systemc::iface::PcieDeviceExtension::connected ( conf_object_t *  port_obj, uint16_t  device_id  )

inlinevirtual

Implements simics::systemc::iface::PcieDeviceInterface.

disconnected()

virtual void simics::systemc::iface::PcieDeviceExtension::disconnected ( conf_object_t *  port_obj, uint16_t  device_id  )

inlinevirtual

Implements simics::systemc::iface::PcieDeviceInterface.

hot_reset()

virtual void simics::systemc::iface::PcieDeviceExtension::hot_reset ( )

inlinevirtual

Implements simics::systemc::iface::PcieDeviceInterface.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/pcie_device_extension.h
