SystemC Library API Reference Manual
Reference documentation for the Simics SystemC Library.

Loading...
Searching...
No Matches
Public Member Functions | List of all members
simics::systemc::awareness::ProxyExport Class Reference

#include <proxy_export.h>

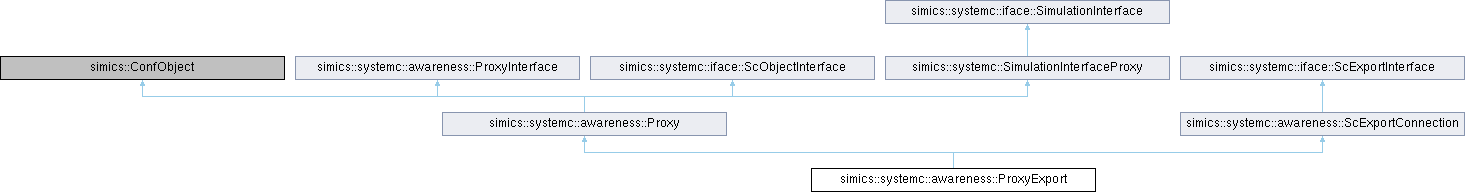

Inheritance diagram for simics::systemc::awareness::ProxyExport:
simics::systemc::awareness::Proxy simics::systemc::awareness::ScExportConnection simics::systemc::awareness::ProxyInterface simics::systemc::iface::ScObjectInterface simics::systemc::SimulationInterfaceProxy simics::systemc::iface::ScExportInterface simics::systemc::iface::SimulationInterface

Public Member Functions

 ProxyExport (simics::ConfObjectRef o)

void init (sc_core::sc_object *obj, SimulationInterface *simulation) override

void simulationStarted () override

- Public Member Functions inherited from simics::systemc::awareness::Proxy
 Proxy (simics::ConfObjectRef o)

void init (sc_core::sc_object *obj, iface::SimulationInterface *simulation) override

void allProxiesInitialized () override

void breakSimulation () override

ConfObjectRef simics_obj () override

sc_core::sc_object * systemc_obj () override

void buildEventObjects () override

iface::SimulationInterface * simulation () override

void addFeature (ProxyFeatureInterface *feature) override

ProxyFeatureInterface * feature (ClassType type) override

void simulationStarted () override

void simulationEnded () override

std::vector< std::string > sc_print () const override

std::vector< std::string > sc_dump () const override

attr_value_t sc_kind () const override

const char * sc_name () const override

virtual void set_attributes (Attributes *attributes)

virtual void resizeExtensions (tlm::tlm_generic_payload *payload) const

template<class T >
T * feature ()

virtual ~Proxy ()

- Public Member Functions inherited from simics::systemc::awareness::ProxyInterface
virtual void init (sc_core::sc_object *obj, iface::SimulationInterface *simulation)=0

virtual void allProxiesInitialized ()=0

virtual void breakSimulation ()=0

virtual ConfObjectRef simics_obj ()=0

virtual sc_core::sc_object * systemc_obj ()=0

virtual void buildEventObjects ()=0

virtual iface::SimulationInterface * simulation ()=0

virtual void addFeature (ProxyFeatureInterface *feature)=0

virtual ProxyFeatureInterface * feature (ClassType type)=0

virtual void simulationStarted ()=0

virtual void simulationEnded ()=0

virtual ~ProxyInterface ()

- Public Member Functions inherited from simics::systemc::iface::ScObjectInterface
virtual std::vector< std::string > sc_print () const =0

virtual std::vector< std::string > sc_dump () const =0

virtual attr_value_t sc_kind () const =0

virtual const char * sc_name () const =0

virtual ~ScObjectInterface ()

- Public Member Functions inherited from simics::systemc::SimulationInterfaceProxy
 SimulationInterfaceProxy ()

void setSimulation (iface::SimulationInterface *simulation)

int runDeltaPhase (int count) override

bool runSimulation (sc_core::sc_time t) override

void stopSimulation () override

sc_core::sc_simcontext * context () const override

ConfObjectRef simics_object () const override

- Public Member Functions inherited from simics::systemc::iface::SimulationInterface
virtual ~SimulationInterface ()

virtual int runDeltaPhase (int count)=0

virtual bool runSimulation (sc_core::sc_time t)=0

virtual void stopSimulation ()=0

virtual sc_core::sc_simcontext * context () const =0

virtual ConfObjectRef simics_object () const =0

- Public Member Functions inherited from simics::systemc::awareness::ScExportConnection
 ScExportConnection ()

void init (sc_core::sc_object *object, iface::SimulationInterface *simulation)

conf_object_t * export_to_proxy () override

const char * if_typename () override

void insertKey (keytype key)

virtual ~ScExportConnection ()

- Public Member Functions inherited from simics::systemc::iface::ScExportInterface
virtual conf_object_t * export_to_proxy ()=0

virtual const char * if_typename ()=0

virtual ~ScExportInterface ()


Additional Inherited Members

- Public Types inherited from simics::systemc::awareness::ScExportConnection
typedef std::pair< sc_core::sc_interface *, std::string > keytype

typedef std::vector< sc_core::sc_export_base * > valuetype

- Static Public Member Functions inherited from simics::systemc::awareness::Proxy
static attr_value_t getAttribute (lang_void *ptr, conf_object_t *obj, attr_value_t *idx)

static set_error_t setAttribute (lang_void *ptr, conf_object_t *obj, attr_value_t *val, attr_value_t *idx)

static ProxyInterface * findProxy (sc_core::sc_object *obj)

static ProxyInterface * findProxy (sc_core::sc_interface *iface)

static ScEventObject * findScEventObject (sc_core::sc_event *event)

- Static Public Member Functions inherited from simics::systemc::awareness::ScExportConnection
static std::vector< sc_core::sc_export_base * > findExport (keytype key)

static void addBinderExport (const keytype &key, sc_core::sc_export_base *obj)

static void removeBinderExport (keytype key, sc_core::sc_export_base *obj)

- Protected Attributes inherited from simics::systemc::awareness::Proxy
sc_core::sc_object * object_

sc_core::sc_interface * iface_

- Static Protected Attributes inherited from simics::systemc::awareness::ScExportConnection
static std::map< keytype, valuetype > exports_


Constructor & Destructor Documentation

◆ ProxyExport()

simics::systemc::awareness::ProxyExport::ProxyExport ( simics::ConfObjectRef  o)
explicit

Member Function Documentation

◆ init()

void simics::systemc::awareness::ProxyExport::init ( sc_core::sc_object *  obj,
SimulationInterface *  simulation
)
override

◆ simulationStarted()

void simics::systemc::awareness::ProxyExport::simulationStarted ( )
overridevirtual

Reimplemented from simics::systemc::awareness::Proxy.

The documentation for this class was generated from the following file:
