#include <proxy.h>

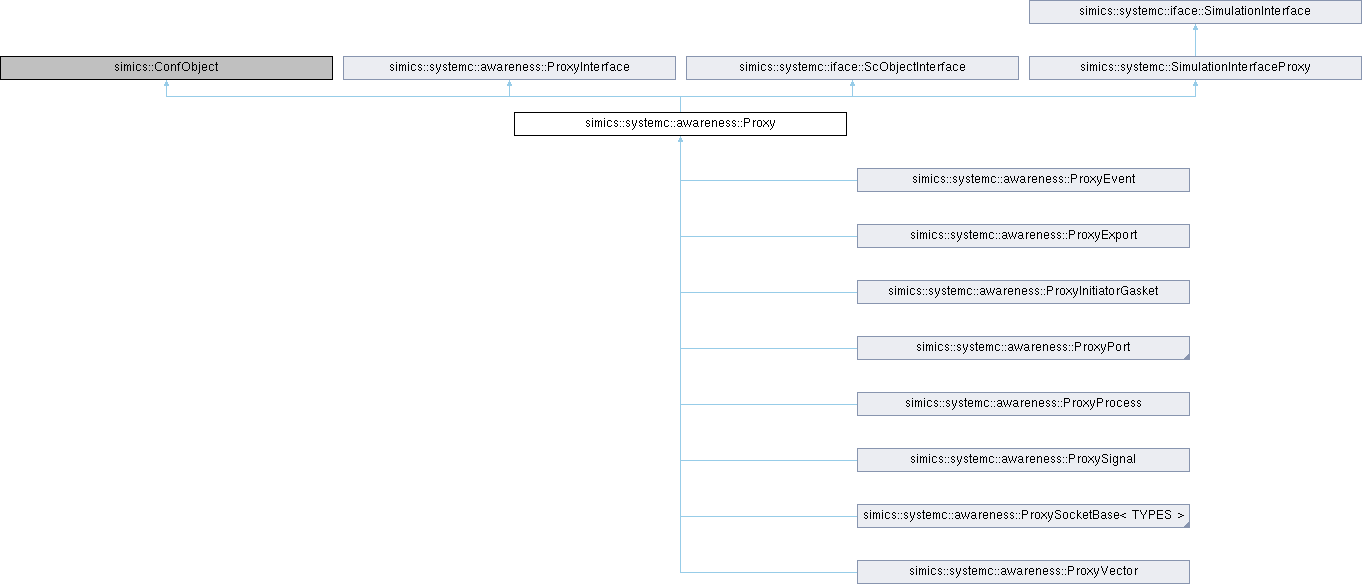

Inheritance diagram for simics::systemc::awareness::Proxy:

Public Member Functions
	Proxy (simics::ConfObjectRef o)

void	init (sc_core::sc_object obj, iface::SimulationInterface simulation) override

void	allProxiesInitialized () override

void	breakSimulation () override

ConfObjectRef	simics_obj () override

sc_core::sc_object *	systemc_obj () override

void	buildEventObjects () override

iface::SimulationInterface *	simulation () override

void	addFeature (ProxyFeatureInterface *feature) override

ProxyFeatureInterface *	feature (ClassType type) override

void	simulationStarted () override

void	simulationEnded () override

std::vector< std::string >	sc_print () const override

std::vector< std::string >	sc_dump () const override

attr_value_t	sc_kind () const override

const char *	sc_name () const override

virtual void	set_attributes (Attributes *attributes)

virtual void	resizeExtensions (tlm::tlm_generic_payload *payload) const

template<class T >
T *	feature ()

virtual	~Proxy ()

Public Member Functions inherited from simics::systemc::awareness::ProxyInterface
virtual void	init (sc_core::sc_object obj, iface::SimulationInterface simulation)=0

virtual void	allProxiesInitialized ()=0

virtual void	breakSimulation ()=0

virtual ConfObjectRef	simics_obj ()=0

virtual sc_core::sc_object *	systemc_obj ()=0

virtual void	buildEventObjects ()=0

virtual iface::SimulationInterface *	simulation ()=0

virtual void	addFeature (ProxyFeatureInterface *feature)=0

virtual ProxyFeatureInterface *	feature (ClassType type)=0

virtual void	simulationStarted ()=0

virtual void	simulationEnded ()=0

virtual	~ProxyInterface ()

Public Member Functions inherited from simics::systemc::iface::ScObjectInterface
virtual std::vector< std::string >	sc_print () const =0

virtual std::vector< std::string >	sc_dump () const =0

virtual attr_value_t	sc_kind () const =0

virtual const char *	sc_name () const =0

virtual	~ScObjectInterface ()

Public Member Functions inherited from simics::systemc::SimulationInterfaceProxy
	SimulationInterfaceProxy ()

void	setSimulation (iface::SimulationInterface *simulation)

int	runDeltaPhase (int count) override

bool	runSimulation (sc_core::sc_time t) override

void	stopSimulation () override

sc_core::sc_simcontext *	context () const override

ConfObjectRef	simics_object () const override

Public Member Functions inherited from simics::systemc::iface::SimulationInterface
virtual	~SimulationInterface ()

virtual int	runDeltaPhase (int count)=0

virtual bool	runSimulation (sc_core::sc_time t)=0

virtual void	stopSimulation ()=0

virtual sc_core::sc_simcontext *	context () const =0

virtual ConfObjectRef	simics_object () const =0

Static Public Member Functions
static attr_value_t	getAttribute (lang_void ptr, conf_object_t obj, attr_value_t *idx)

static set_error_t	setAttribute (lang_void ptr, conf_object_t obj, attr_value_t val, attr_value_t idx)

static ProxyInterface *	findProxy (sc_core::sc_object *obj)

static ProxyInterface *	findProxy (sc_core::sc_interface *iface)

static ScEventObject *	findScEventObject (sc_core::sc_event *event)

Protected Attributes
sc_core::sc_object *	object_

sc_core::sc_interface *	iface_

Constructor & Destructor Documentation

◆ Proxy()

simics::systemc::awareness::Proxy::Proxy ( simics::ConfObjectRef o )

explicit

◆ ~Proxy()

virtual simics::systemc::awareness::Proxy::~Proxy ( )

virtual

Member Function Documentation

◆ addFeature()

void simics::systemc::awareness::Proxy::addFeature ( ProxyFeatureInterface * feature )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

◆ allProxiesInitialized()

void simics::systemc::awareness::Proxy::allProxiesInitialized ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

Reimplemented in simics::systemc::awareness::ProxyEvent, simics::systemc::awareness::ProxySignalPort, and simics::systemc::awareness::ProxySocketBase< TYPES >.

◆ breakSimulation()

void simics::systemc::awareness::Proxy::breakSimulation ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

◆ buildEventObjects()

void simics::systemc::awareness::Proxy::buildEventObjects ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

◆ feature() [1/2]

template<class T >

T * simics::systemc::awareness::Proxy::feature ( )

inline

◆ feature() [2/2]

ProxyFeatureInterface * simics::systemc::awareness::Proxy::feature ( ClassType type )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

◆ findProxy() [1/2]

static ProxyInterface * simics::systemc::awareness::Proxy::findProxy ( sc_core::sc_interface * iface )

static

◆ findProxy() [2/2]

static ProxyInterface * simics::systemc::awareness::Proxy::findProxy ( sc_core::sc_object * obj )

static

◆ findScEventObject()

static ScEventObject * simics::systemc::awareness::Proxy::findScEventObject ( sc_core::sc_event * event )

static

◆ getAttribute()

static attr_value_t simics::systemc::awareness::Proxy::getAttribute	(	lang_void *	ptr,
		conf_object_t *	obj,
		attr_value_t *	idx
	)

static

◆ init()

void simics::systemc::awareness::Proxy::init	(	sc_core::sc_object *	obj,
		iface::SimulationInterface *	simulation
	)

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

Reimplemented in simics::systemc::awareness::ProxyProcess.

◆ resizeExtensions()

virtual void simics::systemc::awareness::Proxy::resizeExtensions ( tlm::tlm_generic_payload * payload ) const

virtual

◆ sc_dump()

std::vector< std::string > simics::systemc::awareness::Proxy::sc_dump ( ) const

overridevirtual

Implements simics::systemc::iface::ScObjectInterface.

◆ sc_kind()

attr_value_t simics::systemc::awareness::Proxy::sc_kind ( ) const

overridevirtual

Implements simics::systemc::iface::ScObjectInterface.

◆ sc_name()

const char * simics::systemc::awareness::Proxy::sc_name ( ) const

overridevirtual

Implements simics::systemc::iface::ScObjectInterface.

◆ sc_print()

std::vector< std::string > simics::systemc::awareness::Proxy::sc_print ( ) const

overridevirtual

Implements simics::systemc::iface::ScObjectInterface.

◆ set_attributes()

virtual void simics::systemc::awareness::Proxy::set_attributes ( Attributes * attributes )

virtual

◆ setAttribute()

static set_error_t simics::systemc::awareness::Proxy::setAttribute	(	lang_void *	ptr,
		conf_object_t *	obj,
		attr_value_t *	val,
		attr_value_t *	idx
	)

static

◆ simics_obj()

ConfObjectRef simics::systemc::awareness::Proxy::simics_obj ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

◆ simulation()

iface::SimulationInterface * simics::systemc::awareness::Proxy::simulation ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

◆ simulationEnded()

void simics::systemc::awareness::Proxy::simulationEnded ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

Reimplemented in simics::systemc::awareness::ProxySocketBase< TYPES >.

◆ simulationStarted()

void simics::systemc::awareness::Proxy::simulationStarted ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

Reimplemented in simics::systemc::awareness::ProxyExport, simics::systemc::awareness::ProxyPort, and simics::systemc::awareness::ProxySocketBase< TYPES >.

◆ systemc_obj()

sc_core::sc_object * simics::systemc::awareness::Proxy::systemc_obj ( )

overridevirtual

Implements simics::systemc::awareness::ProxyInterface.

Member Data Documentation

◆ iface_

sc_core::sc_interface* simics::systemc::awareness::Proxy::iface_

protected

◆ object_

sc_core::sc_object* simics::systemc::awareness::Proxy::object_

protected

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.995.20250459949.1/src/extensions/systemc-library/simics/systemc/awareness/proxy.h
