SystemC Library API Reference Manual
Reference documentation for the Simics SystemC Library.

Loading...
Searching...
No Matches
Public Member Functions | Static Public Member Functions | List of all members
simics::systemc::AdapterNonCheckpointable Class Reference

#include <adapter.h>

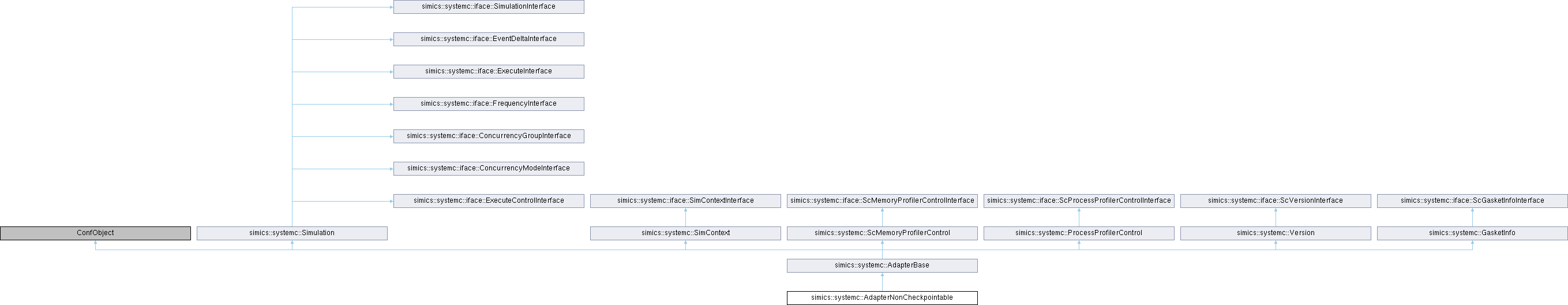

Inheritance diagram for simics::systemc::AdapterNonCheckpointable:
simics::systemc::AdapterBase simics::systemc::Simulation simics::systemc::SimContext simics::systemc::ScMemoryProfilerControl simics::systemc::ProcessProfilerControl simics::systemc::Version simics::systemc::GasketInfo simics::systemc::iface::ScGasketInfoInterface simics::systemc::iface::ScVersionInterface simics::systemc::iface::ScProcessProfilerControlInterface simics::systemc::iface::ScMemoryProfilerControlInterface simics::systemc::iface::SimContextInterface simics::systemc::iface::ExecuteControlInterface simics::systemc::iface::ConcurrencyModeInterface simics::systemc::iface::ConcurrencyGroupInterface simics::systemc::iface::FrequencyInterface simics::systemc::iface::ExecuteInterface simics::systemc::iface::EventDeltaInterface simics::systemc::iface::SimulationInterface

Public Member Functions

 AdapterBase (ConfObjectRef o)

- Public Member Functions inherited from simics::systemc::AdapterBase
 AdapterBase (ConfObjectRef o)

virtual ~AdapterBase ()

virtual void elaborate ()
 Override this method to elaborate the SystemC hierarchy.

virtual void tagGaskets (simics::systemc::GasketTagInterface *gasket_tag)
 Override this method to create tag based gaskets.

virtual void bindGaskets ()
 Override this method to bind Simics interfaces to SystemC after elaboration.

virtual void finalize ()
 Called during the finalize phase.

InternalInterface * internal ()

virtual void deinit ()

- Public Member Functions inherited from simics::systemc::Simulation
 Simulation (ConfObjectRef o, InternalInterface *internal)

virtual ~Simulation ()

void run () override

void stop () override

void switch_in () override

void switch_out () override

uint64 set_delta (conf_object_t *NOTNULL event_handler_obj, const event_class_t *next_event_ec, uint64 delta) override

uint64 get_delta (conf_object_t *NOTNULL event_handler_obj) override

double get () const override

std::vector< conf_object_t * > serialized_memory_group (unsigned group_index) override

std::vector< conf_object_t * > execution_group (unsigned group_index) override

concurrency_mode_t supported_modes () override

concurrency_mode_t current_mode () override

void switch_mode (concurrency_mode_t mode) override

void message_pending () override

void yield_request () override

int runDeltaPhase (int count) override

bool runSimulation (sc_core::sc_time t) override

void stopSimulation () override

sc_core::sc_simcontext * context () const override

ConfObjectRef simics_object () const override

void set_run_next_delta (const int &count)

uint64_t get_sc_time_resolution () const

void set_sc_time_resolution (uint64_t time_resolution)

- Public Member Functions inherited from simics::systemc::iface::SimulationInterface
virtual ~SimulationInterface ()

virtual int runDeltaPhase (int count)=0

virtual bool runSimulation (sc_core::sc_time t)=0

virtual void stopSimulation ()=0

virtual sc_core::sc_simcontext * context () const =0

virtual ConfObjectRef simics_object () const =0

- Public Member Functions inherited from simics::systemc::iface::EventDeltaInterface
virtual ~EventDeltaInterface ()

virtual uint64 set_delta (conf_object_t *NOTNULL event_handler_obj, const event_class_t *next_event_ec, uint64 delta)=0

virtual uint64 get_delta (conf_object_t *NOTNULL event_handler_obj)=0

- Public Member Functions inherited from simics::systemc::iface::ExecuteInterface
virtual ~ExecuteInterface ()

virtual void run ()=0

virtual void stop ()=0

virtual void switch_in ()=0

virtual void switch_out ()=0

- Public Member Functions inherited from simics::systemc::iface::FrequencyInterface
virtual double get () const =0

virtual ~FrequencyInterface ()

- Public Member Functions inherited from simics::systemc::iface::ConcurrencyGroupInterface
virtual std::vector< conf_object_t * > serialized_memory_group (unsigned group_index)=0

virtual std::vector< conf_object_t * > execution_group (unsigned group_index)=0

virtual ~ConcurrencyGroupInterface ()

- Public Member Functions inherited from simics::systemc::iface::ConcurrencyModeInterface
virtual concurrency_mode_t supported_modes ()=0

virtual concurrency_mode_t current_mode ()=0

virtual void switch_mode (concurrency_mode_t mode)=0

virtual ~ConcurrencyModeInterface ()

- Public Member Functions inherited from simics::systemc::iface::ExecuteControlInterface
virtual void message_pending ()=0

virtual void yield_request ()=0

virtual ~ExecuteControlInterface ()

- Public Member Functions inherited from simics::systemc::SimContext
 SimContext (iface::SimulationInterface *simulation)

uint64 time_stamp () override

uint64 delta_count () override

uint64 time_to_pending_activity () override

int status () override

attr_value_t events () override

- Public Member Functions inherited from simics::systemc::iface::SimContextInterface
virtual uint64 time_stamp ()=0

virtual uint64 delta_count ()=0

virtual uint64 time_to_pending_activity ()=0

virtual int status ()=0

virtual attr_value_t events ()=0

virtual ~SimContextInterface ()

- Public Member Functions inherited from simics::systemc::ScMemoryProfilerControl
 ScMemoryProfilerControl ()

virtual ~ScMemoryProfilerControl ()

bool is_enabled () const

void set_enabled (bool enabled)

- Public Member Functions inherited from simics::systemc::iface::ScMemoryProfilerControlInterface
virtual bool is_enabled () const =0

virtual void set_enabled (bool enabled)=0

virtual ~ScMemoryProfilerControlInterface ()

- Public Member Functions inherited from simics::systemc::ProcessProfilerControl
 ProcessProfilerControl (iface::SimulationInterface *simulation)

bool is_enabled () override

void set_enabled (bool enable) override

uint64_t total_time () override

uint64_t total_number_of_calls () override

void clear_data () override

- Public Member Functions inherited from simics::systemc::iface::ScProcessProfilerControlInterface
virtual ~ScProcessProfilerControlInterface ()

virtual bool is_enabled ()=0

virtual void set_enabled (bool enable)=0

virtual uint64_t total_time ()=0

virtual uint64_t total_number_of_calls ()=0

virtual void clear_data ()=0

- Public Member Functions inherited from simics::systemc::Version
 Version ()

const char * kernel_version () const

const char * library_version () const

const char * library_kernel_version () const

const std::map< std::string, std::string > * versions () const

bool operator== (const iface::ScVersionInterface &rhs) const

bool operator!= (const iface::ScVersionInterface &rhs) const

- Public Member Functions inherited from simics::systemc::iface::ScVersionInterface
virtual const char * kernel_version () const =0

virtual const char * library_version () const =0

virtual const char * library_kernel_version () const =0

virtual const std::map< std::string, std::string > * versions () const =0

virtual ~ScVersionInterface ()

- Public Member Functions inherited from simics::systemc::GasketInfo
 GasketInfo (ConfObjectRef obj)

const std::vector< std::vector< std::string > > * simics2tlm () override

const std::vector< std::vector< std::string > > * tlm2simics () override

const std::vector< std::vector< std::string > > * simics2systemc () override

const std::vector< std::vector< std::string > > * systemc2simics () override

virtual ~GasketInfo ()

- Public Member Functions inherited from simics::systemc::iface::ScGasketInfoInterface
virtual const std::vector< std::vector< std::string > > * simics2tlm ()=0

virtual const std::vector< std::vector< std::string > > * tlm2simics ()=0

virtual const std::vector< std::vector< std::string > > * simics2systemc ()=0

virtual const std::vector< std::vector< std::string > > * systemc2simics ()=0

virtual ~ScGasketInfoInterface ()


Static Public Member Functions

template<typename C >
static void initClassInternal (ConfClass *conf_class)

- Static Public Member Functions inherited from simics::systemc::AdapterBase
template<typename C >
static void initClassInternal (ConfClass *conf_class)

static SimulationInterface & simulation_from_conf_obj (conf_object_t *obj)

static awareness::ProxyBuilder * proxy_builder ()


Additional Inherited Members

- Public Types inherited from simics::systemc::AdapterBase
typedef AdapterBase * is_systemc_adapter

- Public Attributes inherited from simics::systemc::AdapterBase
std::vector< simics::ConfObjectRef > gaskets_

- Protected Member Functions inherited from simics::systemc::Simulation
void finalize ()

virtual void callHandleEvent ()

const std::vector< conf_object_t * > & instances () const

void set_frequency (double frequency)

- Protected Member Functions inherited from simics::systemc::Version
void setVersion (const std::string &key, const std::string &value)


Member Function Documentation

◆ AdapterBase()

simics::systemc::AdapterBase::AdapterBase ( ConfObjectRef  o)
explicit

◆ initClassInternal()

template<typename C >
static void simics::systemc::AdapterNonCheckpointable::initClassInternal ( ConfClass *  conf_class)
inlinestatic
The documentation for this class was generated from the following file:
