Provides the interface to the SystemC kernel. More...

#include <simulation.h>

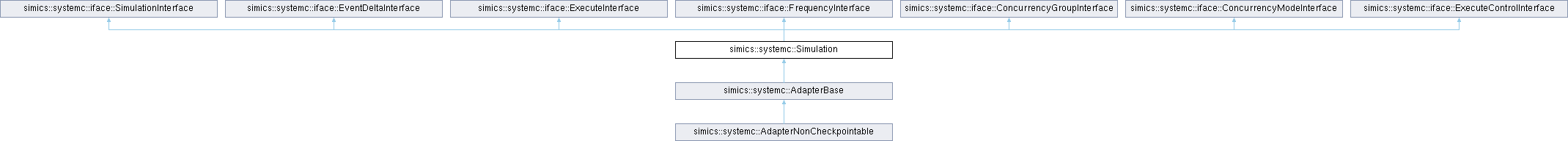

Inheritance diagram for simics::systemc::Simulation:

Public Member Functions
	Simulation (ConfObjectRef o, InternalInterface *internal)

virtual	~Simulation ()

void	run () override

void	stop () override

void	switch_in () override

void	switch_out () override

uint64	set_delta (conf_object_t NOTNULL event_handler_obj, const event_class_t next_event_ec, uint64 delta) override

uint64	get_delta (conf_object_t *NOTNULL event_handler_obj) override

double	get () const override

std::vector< conf_object_t * >	serialized_memory_group (unsigned group_index) override

std::vector< conf_object_t * >	execution_group (unsigned group_index) override

concurrency_mode_t	supported_modes () override

concurrency_mode_t	current_mode () override

void	switch_mode (concurrency_mode_t mode) override

void	message_pending () override

void	yield_request () override

int	runDeltaPhase (int count) override

bool	runSimulation (sc_core::sc_time t) override

void	stopSimulation () override

sc_core::sc_simcontext *	context () const override

ConfObjectRef	simics_object () const override

void	set_run_next_delta (const int &count)

uint64_t	get_sc_time_resolution () const

void	set_sc_time_resolution (uint64_t time_resolution)

Public Member Functions inherited from simics::systemc::iface::SimulationInterface
virtual	~SimulationInterface ()

virtual int	runDeltaPhase (int count)=0

virtual bool	runSimulation (sc_core::sc_time t)=0

virtual void	stopSimulation ()=0

virtual sc_core::sc_simcontext *	context () const =0

virtual ConfObjectRef	simics_object () const =0

Public Member Functions inherited from simics::systemc::iface::EventDeltaInterface
virtual	~EventDeltaInterface ()

virtual uint64	set_delta (conf_object_t NOTNULL event_handler_obj, const event_class_t next_event_ec, uint64 delta)=0

virtual uint64	get_delta (conf_object_t *NOTNULL event_handler_obj)=0

Public Member Functions inherited from simics::systemc::iface::ExecuteInterface
virtual	~ExecuteInterface ()

virtual void	run ()=0

virtual void	stop ()=0

virtual void	switch_in ()=0

virtual void	switch_out ()=0

Public Member Functions inherited from simics::systemc::iface::FrequencyInterface
virtual double	get () const =0

virtual	~FrequencyInterface ()

Public Member Functions inherited from simics::systemc::iface::ConcurrencyGroupInterface
virtual std::vector< conf_object_t * >	serialized_memory_group (unsigned group_index)=0

virtual std::vector< conf_object_t * >	execution_group (unsigned group_index)=0

virtual	~ConcurrencyGroupInterface ()

Public Member Functions inherited from simics::systemc::iface::ConcurrencyModeInterface
virtual concurrency_mode_t	supported_modes ()=0

virtual concurrency_mode_t	current_mode ()=0

virtual void	switch_mode (concurrency_mode_t mode)=0

virtual	~ConcurrencyModeInterface ()

Public Member Functions inherited from simics::systemc::iface::ExecuteControlInterface
virtual void	message_pending ()=0

virtual void	yield_request ()=0

virtual	~ExecuteControlInterface ()

Protected Member Functions
void	finalize ()

virtual void	callHandleEvent ()

const std::vector< conf_object_t * > &	instances () const

void	set_frequency (double frequency)

Detailed Description

Provides the interface to the SystemC kernel.

Handles running the SystemC scheduler on entry from Simics. The class also maintains the simulation context, making it possible to create multiple instances of the same module.

Constructor & Destructor Documentation

◆ Simulation()

simics::systemc::Simulation::Simulation	(	ConfObjectRef	o,
		InternalInterface *	internal
	)

◆ ~Simulation()

virtual simics::systemc::Simulation::~Simulation ( )

virtual

Member Function Documentation

◆ callHandleEvent()

virtual void simics::systemc::Simulation::callHandleEvent ( )

protectedvirtual

◆ context()

sc_core::sc_simcontext * simics::systemc::Simulation::context ( ) const

overridevirtual

Implements simics::systemc::iface::SimulationInterface.

◆ current_mode()

concurrency_mode_t simics::systemc::Simulation::current_mode ( )

overridevirtual

Implements simics::systemc::iface::ConcurrencyModeInterface.

◆ execution_group()

std::vector< conf_object_t * > simics::systemc::Simulation::execution_group ( unsigned group_index )

overridevirtual

Implements simics::systemc::iface::ConcurrencyGroupInterface.

◆ finalize()

void simics::systemc::Simulation::finalize ( )

protected

◆ get()

double simics::systemc::Simulation::get ( ) const

overridevirtual

Implements simics::systemc::iface::FrequencyInterface.

◆ get_delta()

uint64 simics::systemc::Simulation::get_delta ( conf_object_t *NOTNULL event_handler_obj )

overridevirtual

Implements simics::systemc::iface::EventDeltaInterface.

◆ get_sc_time_resolution()

uint64_t simics::systemc::Simulation::get_sc_time_resolution ( ) const

inline

◆ instances()

const std::vector< conf_object_t * > & simics::systemc::Simulation::instances ( ) const

protected

◆ message_pending()

void simics::systemc::Simulation::message_pending ( )

overridevirtual

Implements simics::systemc::iface::ExecuteControlInterface.

◆ run()

void simics::systemc::Simulation::run ( )

overridevirtual

Implements simics::systemc::iface::ExecuteInterface.

◆ runDeltaPhase()

int simics::systemc::Simulation::runDeltaPhase ( int count )

overridevirtual

Implements simics::systemc::iface::SimulationInterface.

◆ runSimulation()

bool simics::systemc::Simulation::runSimulation ( sc_core::sc_time t )

overridevirtual

Implements simics::systemc::iface::SimulationInterface.

◆ serialized_memory_group()

std::vector< conf_object_t * > simics::systemc::Simulation::serialized_memory_group ( unsigned group_index )

overridevirtual

Implements simics::systemc::iface::ConcurrencyGroupInterface.

◆ set_delta()

uint64 simics::systemc::Simulation::set_delta	(	conf_object_t *NOTNULL	event_handler_obj,
		const event_class_t *	next_event_ec,
		uint64	delta
	)

overridevirtual

Implements simics::systemc::iface::EventDeltaInterface.

◆ set_frequency()

void simics::systemc::Simulation::set_frequency ( double frequency )

protected

◆ set_run_next_delta()

void simics::systemc::Simulation::set_run_next_delta ( const int & count )

◆ set_sc_time_resolution()

void simics::systemc::Simulation::set_sc_time_resolution ( uint64_t time_resolution )

◆ simics_object()

ConfObjectRef simics::systemc::Simulation::simics_object ( ) const

overridevirtual

Implements simics::systemc::iface::SimulationInterface.

◆ stop()

void simics::systemc::Simulation::stop ( )

overridevirtual

Implements simics::systemc::iface::ExecuteInterface.

◆ stopSimulation()

void simics::systemc::Simulation::stopSimulation ( )

overridevirtual

Implements simics::systemc::iface::SimulationInterface.

◆ supported_modes()

concurrency_mode_t simics::systemc::Simulation::supported_modes ( )

overridevirtual

Implements simics::systemc::iface::ConcurrencyModeInterface.

◆ switch_in()

void simics::systemc::Simulation::switch_in ( )

overridevirtual

Implements simics::systemc::iface::ExecuteInterface.

◆ switch_mode()

void simics::systemc::Simulation::switch_mode ( concurrency_mode_t mode )

overridevirtual

Implements simics::systemc::iface::ConcurrencyModeInterface.

◆ switch_out()

void simics::systemc::Simulation::switch_out ( )

overridevirtual

Implements simics::systemc::iface::ExecuteInterface.

◆ yield_request()

void simics::systemc::Simulation::yield_request ( )

overridevirtual

Implements simics::systemc::iface::ExecuteControlInterface.

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.995.20250459949.1/src/extensions/systemc-library/simics/systemc/simulation.h
