simics::StepEvent< T > Class Template Reference

Not commonly used for device model. Step-based event type. More...

#include <event.h>

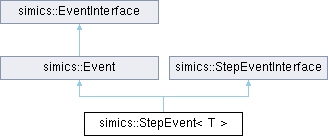

Inheritance diagram for simics::StepEvent< T >:

Public Member Functions
bool	posted (void *match_data=nullptr) const override
	Returns true if the event is in the queue, and false otherwise.
void	remove (void *match_data=nullptr) const override
	Removes all events of this type with matching data from the queue.
void	post (pc_step_t steps, void *data=nullptr) override
	Posts the event on the associated queue of the device.
pc_step_t	next (void *match_data=nullptr) const override
	Returns the steps to the next occurrence of the event in the queue (relative to the current time)
	Event (ConfObject *obj, event_class_t *ev)
	Event (ConfObject *obj, const std::string &name)
Public Member Functions inherited from simics::Event
	Event (ConfObject *obj, event_class_t *ev)
	Event (ConfObject *obj, const std::string &name)
void	destroy (void *data) override
	Called when the event is removed from the queue without being called.
attr_value_t	get_value (void *data) override
	Called to convert the event data into a value that can be saved in a configuration.
void *	set_value (attr_value_t value) override
	Called to convert a configuration value into event data.
char *	describe (void *data) const override
	Called to generate a human-readable description of the event to be used in the print-event-queue command.
	operator event_class_t * () const
Public Member Functions inherited from simics::EventInterface
virtual	~EventInterface ()=default
virtual void	callback (void *data)=0
	Called when the event expires.
virtual void	destroy (void *data)=0
	Called when the event is removed from the queue without being called.
virtual attr_value_t	get_value (void *data)=0
	Called to convert the event data into a value that can be saved in a configuration.
virtual void *	set_value (attr_value_t value)=0
	Called to convert a configuration value into event data.
virtual char *	describe (void *data) const =0
	Called to generate a human-readable description of the event to be used in the print-event-queue command.
Public Member Functions inherited from simics::StepEventInterface
virtual	~StepEventInterface ()=default
virtual void	remove (void *match_data) const =0
	Removes all events of this type with matching data from the queue.
virtual bool	posted (void *match_data) const =0
	Returns true if the event is in the queue, and false otherwise.
virtual pc_step_t	next (void *match_data) const =0
	Returns the steps to the next occurrence of the event in the queue (relative to the current time)
virtual void	post (pc_step_t steps, void *data)=0
	Posts the event on the associated queue of the device.

Protected Attributes
T *	dev_ {device_ptr<T>()}
Protected Attributes inherited from simics::Event
ConfObject *	obj_ {nullptr}
event_class_t *	ev_ {nullptr}
conf_object_t *	clock_ {nullptr}
	clock_ cannot be initialized here by SIM_object_clock, since attribute queue is not set yet

Additional Inherited Members
Protected Member Functions inherited from simics::Event
template<typename T >
T *	device_ptr () const
const char *	name () const
Static Protected Member Functions inherited from simics::Event
static int	pointer_eq (void *data, void *match_data)

Detailed Description

template<typename T = ConfObject>
class simics::StepEvent< T >

Not commonly used for device model. Step-based event type.

Member Function Documentation

Event() [1/2]

template<typename T = ConfObject>

simics::Event::Event	(	ConfObject *	obj,
		const std::string &	name
	)

Parameters

name	is the name of the event class registered

Event() [2/2]

template<typename T = ConfObject>

simics::Event::Event	(	ConfObject *	obj,
		event_class_t *	ev
	)

Parameters

obj	should be an instance of the same class the event is registered on
ev	should be pointed to the registered Simics event class (e.g., SIM_register_event)

next()

template<typename T = ConfObject>

pc_step_t simics::StepEvent< T >::next ( void *  match_data = nullptr ) const

inlineoverridevirtual

Returns the steps to the next occurrence of the event in the queue (relative to the current time)

Implements simics::StepEventInterface.

post()

template<typename T = ConfObject>

void simics::StepEvent< T >::post ( pc_step_t  steps, void *  data = nullptr  )

inlineoverridevirtual

Posts the event on the associated queue of the device.

clock_ is initialized when event is posted

Implements simics::StepEventInterface.

posted()

template<typename T = ConfObject>

bool simics::StepEvent< T >::posted ( void *  match_data = nullptr ) const

inlineoverridevirtual

Returns true if the event is in the queue, and false otherwise.

Implements simics::StepEventInterface.

remove()

template<typename T = ConfObject>

void simics::StepEvent< T >::remove ( void *  match_data = nullptr ) const

inlineoverridevirtual

Removes all events of this type with matching data from the queue.

Implements simics::StepEventInterface.

Member Data Documentation

dev_

template<typename T = ConfObject>

T* simics::StepEvent< T >::dev_ {device_ptr<T>()}

protected

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/event.h
