simics::EventInterface Class Reference

An event is required to implement the interface. More...

#include <event-interface.h>

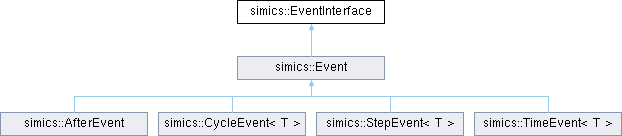

Inheritance diagram for simics::EventInterface:

Public Member Functions
virtual	~EventInterface ()=default
virtual void	callback (void *data)=0
	Called when the event expires.
virtual void	destroy (void *data)=0
	Called when the event is removed from the queue without being called.
virtual attr_value_t	get_value (void *data)=0
	Called to convert the event data into a value that can be saved in a configuration.
virtual void *	set_value (attr_value_t value)=0
	Called to convert a configuration value into event data.
virtual char *	describe (void *data) const =0
	Called to generate a human-readable description of the event to be used in the print-event-queue command.

Detailed Description

An event is required to implement the interface.

Constructor & Destructor Documentation

~EventInterface()

virtual simics::EventInterface::~EventInterface ( )

virtualdefault

Member Function Documentation

callback()

virtual void simics::EventInterface::callback ( void *  data )

pure virtual

Called when the event expires.

Implemented in simics::AfterEvent.

describe()

virtual char * simics::EventInterface::describe ( void *  data ) const

pure virtual

Called to generate a human-readable description of the event to be used in the print-event-queue command.

Implemented in simics::Event.

destroy()

virtual void simics::EventInterface::destroy ( void *  data )

pure virtual

Called when the event is removed from the queue without being called.

Implemented in simics::Event.

get_value()

virtual attr_value_t simics::EventInterface::get_value ( void *  data )

pure virtual

Called to convert the event data into a value that can be saved in a configuration.

Implemented in simics::AfterEvent, and simics::Event.

set_value()

virtual void * simics::EventInterface::set_value ( attr_value_t  value )

pure virtual

Called to convert a configuration value into event data.

Implemented in simics::AfterEvent, and simics::Event.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/event-interface.h
