simics::Event Class Reference

The Event class allows users to define callbacks that will be executed after a specified delay. More...

#include <event.h>

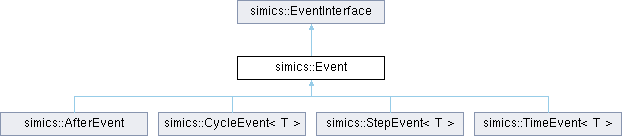

Inheritance diagram for simics::Event:

Public Member Functions
	Event (ConfObject *obj, event_class_t *ev)
	Event (ConfObject *obj, const std::string &name)
void	destroy (void *data) override
	Called when the event is removed from the queue without being called.
attr_value_t	get_value (void *data) override
	Called to convert the event data into a value that can be saved in a configuration.
void *	set_value (attr_value_t value) override
	Called to convert a configuration value into event data.
char *	describe (void *data) const override
	Called to generate a human-readable description of the event to be used in the print-event-queue command.
	operator event_class_t * () const
Public Member Functions inherited from simics::EventInterface
virtual	~EventInterface ()=default
virtual void	callback (void *data)=0
	Called when the event expires.
virtual void	destroy (void *data)=0
	Called when the event is removed from the queue without being called.
virtual attr_value_t	get_value (void *data)=0
	Called to convert the event data into a value that can be saved in a configuration.
virtual void *	set_value (attr_value_t value)=0
	Called to convert a configuration value into event data.
virtual char *	describe (void *data) const =0
	Called to generate a human-readable description of the event to be used in the print-event-queue command.

Protected Member Functions
template<typename T >
T *	device_ptr () const
const char *	name () const

Static Protected Member Functions
static int	pointer_eq (void *data, void *match_data)

Protected Attributes
ConfObject *	obj_ {nullptr}
event_class_t *	ev_ {nullptr}
conf_object_t *	clock_ {nullptr}
	clock_ cannot be initialized here by SIM_object_clock, since attribute queue is not set yet

Detailed Description

The Event class allows users to define callbacks that will be executed after a specified delay.

The delay can be measured in different units depending on the type of event being created.

Users should inherit from one of the Simics provided classes based on their desired timebase:

• simics::TimeEvent: Used when the delay is measured in seconds
• simics::CycleEvent: Used when the delay is measured by the number of cycles
• simics::StepEvent: Used when the delay is measured by the number of steps

Constructor & Destructor Documentation

Event() [1/2]

simics::Event::Event	(	ConfObject *	obj,
		event_class_t *	ev
	)

Parameters

obj	should be an instance of the same class the event is registered on
ev	should be pointed to the registered Simics event class (e.g., SIM_register_event)

Event() [2/2]

simics::Event::Event	(	ConfObject *	obj,
		const std::string &	name
	)

Parameters

name	is the name of the event class registered

Member Function Documentation

describe()

char * simics::Event::describe ( void *  data ) const

overridevirtual

Called to generate a human-readable description of the event to be used in the print-event-queue command.

Implements simics::EventInterface.

destroy()

void simics::Event::destroy ( void *  data )

overridevirtual

Called when the event is removed from the queue without being called.

Implements simics::EventInterface.

device_ptr()

template<typename T >

T * simics::Event::device_ptr ( ) const

inlineprotected

Returns

pointer of the device class instance contains this event instance

get_value()

attr_value_t simics::Event::get_value ( void *  data )

overridevirtual

Called to convert the event data into a value that can be saved in a configuration.

Implements simics::EventInterface.

name()

const char * simics::Event::name ( ) const

protected

operator event_class_t *()

simics::Event::operator event_class_t *

(

)

const

pointer_eq()

static int simics::Event::pointer_eq ( void *  data, void *  match_data  )

staticprotected

set_value()

void * simics::Event::set_value ( attr_value_t  value )

overridevirtual

Called to convert a configuration value into event data.

Implements simics::EventInterface.

Member Data Documentation

clock_

conf_object_t* simics::Event::clock_ {nullptr}

protected

clock_ cannot be initialized here by SIM_object_clock, since attribute queue is not set yet

ev_

event_class_t* simics::Event::ev_ {nullptr}

protected

obj_

ConfObject* simics::Event::obj_ {nullptr}

protected

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/event.h
