simics::MissPatternBank Class Reference

#include <bank-templates.h>

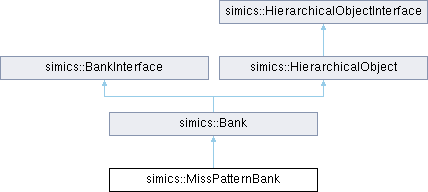

Inheritance diagram for simics::MissPatternBank:
simics::Bank simics::BankInterface simics::HierarchicalObject simics::HierarchicalObjectInterface

Public Member Functions

 MissPatternBank (MappableConfObject *dev_obj, const std::string &name, uint8_t miss_pattern=0)

- Public Member Functions inherited from simics::Bank
 Bank (MappableConfObject *dev_obj, const std::string &name)

 Bank (MappableConfObject *dev_obj, const std::string &name, ByteOrder byte_order)

 Bank (const Bank &)=delete

Bank & operator= (const Bank &)=delete

 Bank (Bank &&rhs)

Bank & operator= (Bank &&rhs)

virtual ~Bank ()=default

std::string_view name () const override
 Get the name of the bank without level delimiters.

MappableConfObject * dev_obj () const override
 Get the device object.

const std::string & description () const override
 Get the description of the bank.

void set_description (std::string_view desc) override
 Set the description for the bank.

void add_register (const register_t &reg) override
 Parse a register name and add register to the bank.

void add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields) override
 Add a register to the bank.

unsigned number_of_registers () const override
 Get the number of registers in the bank.

std::pair< size_t, RegisterInterface * > register_at_index (unsigned index) const override
 Get the register at a specific index.

const std::map< size_t, RegisterInterface * > & mapped_registers () const override
 Get all mapped registers on the bank ordered by offset.

void set_callbacks (BankIssueCallbacksInterface *callbacks) override
 Set the callbacks for bank issues.

ByteOrder get_byte_order () const override
 Get the byte order of the bank.

void set_miss_pattern (uint8_t miss_pattern) override
 Set the miss pattern for the bank.

exception_type_t transaction_access (transaction_t *t, uint64_t offset) override
 Entry point for a memory access from the transaction interface.

- Public Member Functions inherited from simics::BankInterface
virtual ~BankInterface ()=default

virtual std::string_view name () const =0
 Get the name of the bank without level delimiters.

virtual MappableConfObject * dev_obj () const =0
 Get the device object.

virtual const std::string & description () const =0
 Get the description of the bank.

virtual void set_description (std::string_view desc)=0
 Set the description for the bank.

virtual void add_register (const register_t &reg)=0
 Parse a register name and add register to the bank.

virtual void add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields)=0
 Add a register to the bank.

virtual unsigned number_of_registers () const =0
 Get the number of registers in the bank.

virtual std::pair< size_t, RegisterInterface * > register_at_index (unsigned index) const =0
 Get the register at a specific index.

virtual const std::map< size_t, RegisterInterface * > & mapped_registers () const =0
 Get all mapped registers on the bank ordered by offset.

virtual void set_callbacks (BankIssueCallbacksInterface *callbacks)=0
 Set the callbacks for bank issues.

virtual ByteOrder get_byte_order () const =0
 Get the byte order of the bank.

virtual void set_miss_pattern (uint8_t miss_pattern)=0
 Set the miss pattern for the bank.

virtual exception_type_t transaction_access (transaction_t *t, uint64_t offset)=0
 Entry point for a memory access from the transaction interface.

- Public Member Functions inherited from simics::HierarchicalObject
 HierarchicalObject (MappableConfObject *dev_obj, const std::string &name)
 Constructor for HierarchicalObject.

virtual ~HierarchicalObject ()

 HierarchicalObject (const HierarchicalObject &)=delete

HierarchicalObject & operator= (const HierarchicalObject &)=delete

 HierarchicalObject (HierarchicalObject &&rhs) noexcept

HierarchicalObject & operator= (HierarchicalObject &&rhs) noexcept

template<typename T >
T * dev_ptr ()

const std::string & hierarchical_name () const override

std::string_view name () const override

const std::string & description () const override

void set_description (std::string_view desc) override

Level hierarchy_level () const override

std::string_view bank_name () const override

MappableConfObject * dev_obj () const override

ConfObjectRef bank_obj_ref () const override

std::string_view parent_name () const override

FieldInterface * lookup_field (const std::string &name) const override

RegisterInterface * lookup_register (const std::string &name) const override

BankInterface * lookup_bank (const std::string &name) const override

virtual const std::string & hierarchical_name () const =0

virtual std::string_view name () const =0

virtual const std::string & description () const =0

virtual void set_description (std::string_view desc)=0

virtual Level hierarchy_level () const =0

virtual std::string_view bank_name () const =0

virtual MappableConfObject * dev_obj () const =0

virtual ConfObjectRef bank_obj_ref () const =0

virtual std::string_view parent_name () const =0

virtual FieldInterface * lookup_field (const std::string &name) const =0

virtual RegisterInterface * lookup_register (const std::string &name) const =0

virtual BankInterface * lookup_bank (const std::string &name) const =0


Additional Inherited Members

- Static Public Member Functions inherited from simics::HierarchicalObject
static bool is_valid_hierarchical_name (std::string_view name)

static std::string_view::size_type level_of_hierarchical_name (std::string_view name)

- Static Public Attributes inherited from simics::HierarchicalObject
static const uint64_t Register_Read {1}
 Log group ID for Register_Read and Register_Write is fixed.

static const uint64_t Register_Write {2}

static const uint64_t Register_Read_Exception {3}

static const uint64_t Register_Write_Exception {4}

- Protected Member Functions inherited from simics::Bank
virtual std::vector< uint8_t > read (uint64_t offset, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void write (uint64_t offset, const std::vector< uint8_t > &value, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void unmapped_read (size_t offset, size_t size) const

virtual void unmapped_write (size_t offset, size_t size) const

void allocate_bank_memory (std::string_view name)
 Allocate memory for this bank by name.


Constructor & Destructor Documentation

◆ MissPatternBank()

simics::MissPatternBank::MissPatternBank ( MappableConfObject *  dev_obj,
const std::string &  name,
uint8_t  miss_pattern = 0
)
inline
The documentation for this class was generated from the following file:
