Base class to represent a Simics register bank. More...

#include <bank.h>

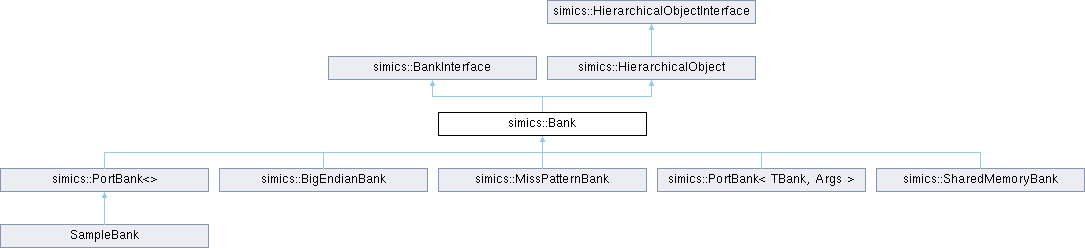

Inheritance diagram for simics::Bank:

Public Member Functions
	Bank (MappableConfObject *dev_obj, const std::string &name)

	Bank (MappableConfObject *dev_obj, const std::string &name, ByteOrder byte_order)

	Bank (const Bank &)=delete

Bank &	operator= (const Bank &)=delete

	Bank (Bank &&rhs)

Bank &	operator= (Bank &&rhs)

virtual	~Bank ()=default

std::string_view	name () const override
	Get the name of the bank without level delimiters.

MappableConfObject *	dev_obj () const override
	Get the device object.

const std::string &	description () const override
	Get the description of the bank.

void	set_description (std::string_view desc) override
	Set the description for the bank.

void	add_register (const register_t &reg) override
	Parse a register name and add register to the bank.

void	add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields) override
	Add a register to the bank.

unsigned	number_of_registers () const override
	Get the number of registers in the bank.

std::pair< size_t, RegisterInterface * >	register_at_index (unsigned index) const override
	Get the register at a specific index.

const std::map< size_t, RegisterInterface * > &	mapped_registers () const override
	Get all mapped registers on the bank ordered by offset.

void	set_callbacks (BankIssueCallbacksInterface *callbacks) override
	Set the callbacks for bank issues.

ByteOrder	get_byte_order () const override
	Get the byte order of the bank.

void	set_miss_pattern (uint8_t miss_pattern) override
	Set the miss pattern for the bank.

exception_type_t	transaction_access (transaction_t *t, uint64_t offset) override
	Entry point for a memory access from the transaction interface.

Public Member Functions inherited from simics::BankInterface
virtual	~BankInterface ()=default

virtual std::string_view	name () const =0
	Get the name of the bank without level delimiters.

virtual MappableConfObject *	dev_obj () const =0
	Get the device object.

virtual const std::string &	description () const =0
	Get the description of the bank.

virtual void	set_description (std::string_view desc)=0
	Set the description for the bank.

virtual void	add_register (const register_t &reg)=0
	Parse a register name and add register to the bank.

virtual void	add_register (std::string_view name, std::string_view desc, Offset offset, ByteSize number_of_bytes, InitValue init_value, const std::vector< field_t > &fields)=0
	Add a register to the bank.

virtual unsigned	number_of_registers () const =0
	Get the number of registers in the bank.

virtual std::pair< size_t, RegisterInterface * >	register_at_index (unsigned index) const =0
	Get the register at a specific index.

virtual const std::map< size_t, RegisterInterface * > &	mapped_registers () const =0
	Get all mapped registers on the bank ordered by offset.

virtual void	set_callbacks (BankIssueCallbacksInterface *callbacks)=0
	Set the callbacks for bank issues.

virtual ByteOrder	get_byte_order () const =0
	Get the byte order of the bank.

virtual void	set_miss_pattern (uint8_t miss_pattern)=0
	Set the miss pattern for the bank.

virtual exception_type_t	transaction_access (transaction_t *t, uint64_t offset)=0
	Entry point for a memory access from the transaction interface.

Public Member Functions inherited from simics::HierarchicalObject
	HierarchicalObject (MappableConfObject *dev_obj, const std::string &name)
	Constructor for HierarchicalObject.

virtual	~HierarchicalObject ()

	HierarchicalObject (const HierarchicalObject &)=delete

HierarchicalObject &	operator= (const HierarchicalObject &)=delete

	HierarchicalObject (HierarchicalObject &&rhs) noexcept

HierarchicalObject &	operator= (HierarchicalObject &&rhs) noexcept

template<typename T >
T *	dev_ptr ()

const std::string &	hierarchical_name () const override

std::string_view	name () const override

const std::string &	description () const override

void	set_description (std::string_view desc) override

Level	hierarchy_level () const override

std::string_view	bank_name () const override

MappableConfObject *	dev_obj () const override

ConfObjectRef	bank_obj_ref () const override

std::string_view	parent_name () const override

FieldInterface *	lookup_field (const std::string &name) const override

RegisterInterface *	lookup_register (const std::string &name) const override

BankInterface *	lookup_bank (const std::string &name) const override

virtual const std::string &	hierarchical_name () const =0

virtual std::string_view	name () const =0

virtual const std::string &	description () const =0

virtual void	set_description (std::string_view desc)=0

virtual Level	hierarchy_level () const =0

virtual std::string_view	bank_name () const =0

virtual MappableConfObject *	dev_obj () const =0

virtual ConfObjectRef	bank_obj_ref () const =0

virtual std::string_view	parent_name () const =0

virtual FieldInterface *	lookup_field (const std::string &name) const =0

virtual RegisterInterface *	lookup_register (const std::string &name) const =0

virtual BankInterface *	lookup_bank (const std::string &name) const =0

Protected Member Functions
virtual std::vector< uint8_t >	read (uint64_t offset, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void	write (uint64_t offset, const std::vector< uint8_t > &value, size_t size, Inquiry inquiry=Inquiry::NonInquiry) const

virtual void	unmapped_read (size_t offset, size_t size) const

virtual void	unmapped_write (size_t offset, size_t size) const

void	allocate_bank_memory (std::string_view name)
	Allocate memory for this bank by name.

Additional Inherited Members
Static Public Member Functions inherited from simics::HierarchicalObject
static bool	is_valid_hierarchical_name (std::string_view name)

static std::string_view::size_type	level_of_hierarchical_name (std::string_view name)

Static Public Attributes inherited from simics::HierarchicalObject
static const uint64_t	Register_Read {1}
	Log group ID for Register_Read and Register_Write is fixed.

static const uint64_t	Register_Write {2}

static const uint64_t	Register_Read_Exception {3}

static const uint64_t	Register_Write_Exception {4}

Detailed Description

Base class to represent a Simics register bank.

Bank with default behavior which allows access to any offset, without any side-effects. Registers and fields don't have to be mapped as all reads return zero and all writes are ignored.

Constructor & Destructor Documentation

◆ Bank() [1/4]

simics::Bank::Bank	(	MappableConfObject *	dev_obj,
		const std::string &	name
	)

Parameters

name	is the bank name alone, e.g., b0

◆ Bank() [2/4]

simics::Bank::Bank	(	MappableConfObject *	dev_obj,
		const std::string &	name,
		ByteOrder	byte_order
	)

Parameters

byte_order represents the byte endianness

◆ Bank() [3/4]

simics::Bank::Bank ( const Bank & )

delete

◆ Bank() [4/4]

simics::Bank::Bank ( Bank && rhs )

◆ ~Bank()

virtual simics::Bank::~Bank ( )

virtualdefault

Member Function Documentation

◆ add_register() [1/2]

void simics::Bank::add_register ( const register_t & reg )

overridevirtual

Parse a register name and add register to the bank.

Parameters

reg	The register data to be added to the bank.

Implements simics::BankInterface.

◆ add_register() [2/2]

void simics::Bank::add_register	(	std::string_view	name,
		std::string_view	desc,
		Offset	offset,
		ByteSize	number_of_bytes,
		InitValue	init_value,
		const std::vector< field_t > &	fields
	)

overridevirtual

Add a register to the bank.

Parameters

name	The name of the register.
desc	The description of the register.
offset	The offset of the register within the bank.
number_of_bytes	The size of the register in bytes.
init_value	The initial value of the register.
fields	A vector of fields associated with the register.

Implements simics::BankInterface.

◆ allocate_bank_memory()

void simics::Bank::allocate_bank_memory ( std::string_view name )

protected

Allocate memory for this bank by name.

◆ description()

const std::string & simics::Bank::description ( ) const

inlineoverridevirtual

Get the description of the bank.

Returns: A reference to the string containing the bank description.

Implements simics::BankInterface.

◆ dev_obj()

MappableConfObject * simics::Bank::dev_obj ( ) const

inlineoverridevirtual

Get the device object.

Returns: A pointer to the MappableConfObject.

Implements simics::BankInterface.

◆ get_byte_order()

ByteOrder simics::Bank::get_byte_order ( ) const

inlineoverridevirtual

Get the byte order of the bank.

Implements simics::BankInterface.

◆ mapped_registers()

const std::map< size_t, RegisterInterface * > & simics::Bank::mapped_registers ( ) const

overridevirtual

Get all mapped registers on the bank ordered by offset.

Implements simics::BankInterface.

◆ name()

std::string_view simics::Bank::name ( ) const

inlineoverridevirtual

Get the name of the bank without level delimiters.

Returns: A string view representing the bank name.

Implements simics::BankInterface.

◆ number_of_registers()

unsigned simics::Bank::number_of_registers ( ) const

overridevirtual

Get the number of registers in the bank.

Implements simics::BankInterface.

◆ operator=() [1/2]

Bank & simics::Bank::operator= ( Bank && rhs )

◆ operator=() [2/2]

Bank & simics::Bank::operator= ( const Bank & )

delete

◆ read()

virtual std::vector< uint8_t > simics::Bank::read	(	uint64_t	offset,
		size_t	size,
		Inquiry	inquiry = `Inquiry::NonInquiry`
	)		const

protectedvirtual

◆ register_at_index()

std::pair< size_t, RegisterInterface * > simics::Bank::register_at_index ( unsigned index ) const

overridevirtual

Get the register at a specific index.

Parameters

index The index of the register.

Returns: register offset and interface with an index into a sorted registers by their offsets on the bank. {0, nullptr} is returned for an outbound access.

Implements simics::BankInterface.

◆ set_callbacks()

void simics::Bank::set_callbacks ( BankIssueCallbacksInterface * callbacks )

inlineoverridevirtual

Set the callbacks for bank issues.

Implements simics::BankInterface.

◆ set_description()

void simics::Bank::set_description ( std::string_view desc )

inlineoverridevirtual

Set the description for the bank.

Parameters

desc	A string view containing the new description for the bank.

Implements simics::BankInterface.

◆ set_miss_pattern()

void simics::Bank::set_miss_pattern ( uint8_t miss_pattern )

inlineoverridevirtual

Set the miss pattern for the bank.

Implements simics::BankInterface.

◆ transaction_access()

exception_type_t simics::Bank::transaction_access	(	transaction_t *	t,
		uint64_t	offset
	)

overridevirtual

Entry point for a memory access from the transaction interface.

This function handles memory access requests by extracting the necessary information from the transaction object, invoking the appropriate access methods (read or write), and updating the transaction object accordingly.

Parameters

offset The memory offset relative to the bank.

Returns: Sim_PE_No_Exception if the access succeeded, or SIM_PE_IO_Not_Taken if the access was not handled.

Implements simics::BankInterface.

◆ unmapped_read()

virtual void simics::Bank::unmapped_read	(	size_t	offset,
		size_t	size
	)		const

protectedvirtual

◆ unmapped_write()

virtual void simics::Bank::unmapped_write	(	size_t	offset,
		size_t	size
	)		const

protectedvirtual

◆ write()

virtual void simics::Bank::write	(	uint64_t	offset,
		const std::vector< uint8_t > &	value,
		size_t	size,
		Inquiry	inquiry = `Inquiry::NonInquiry`
	)		const

protectedvirtual

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/bank.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Bank() [1/4]

◆ Bank() [2/4]

◆ Bank() [3/4]

◆ Bank() [4/4]

◆ ~Bank()

Member Function Documentation

◆ add_register() [1/2]

◆ add_register() [2/2]

◆ allocate_bank_memory()

◆ description()

◆ dev_obj()

◆ get_byte_order()

◆ mapped_registers()

◆ name()

◆ number_of_registers()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ read()

◆ register_at_index()

◆ set_callbacks()

◆ set_description()

◆ set_miss_pattern()

◆ transaction_access()

◆ unmapped_read()

◆ unmapped_write()

◆ write()
