#include <pcie_map.h>

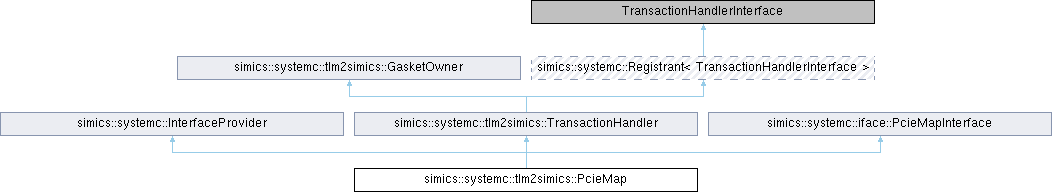

Inheritance diagram for simics::systemc::tlm2simics::PcieMap:

Public Member Functions
	PcieMap ()

virtual	~PcieMap ()

	PcieMap (const PcieMap &other)=delete

PcieMap &	operator= (const PcieMap &other)=delete

iface::ReceiverInterface *	receiver () override

void	add_map (types::map_info_t info, types::pcie_type_t type) override

void	del_map (types::map_info_t::physical_address_t base, types::pcie_type_t type) override

void	add_function (conf_object_t *map_obj, uint16_t function_id) override

void	del_function (conf_object_t *map_obj, uint16_t function_id) override

void	enable_function (uint16_t function_id) override

void	disable_function (uint16_t function_id) override

uint16_t	get_device_id (conf_object_t *dev_obj) override

Public Member Functions inherited from simics::systemc::InterfaceProvider
	InterfaceProvider (const char *interface_name)

	InterfaceProvider (const InterfaceProvider &)=delete

InterfaceProvider &	operator= (const InterfaceProvider &)=delete

virtual	~InterfaceProvider ()

virtual void	set_target (const ConfObjectRef &obj)

virtual void	add_target_update_listener (TargetUpdateListener *l)

virtual void	remove_target_update_listener (TargetUpdateListener *l)

virtual const simics::ConfObjectRef &	target () const

virtual bool	has_interface ()

virtual const char *	get_interface_name () const

template<typename TInterface >
SimicsTargetLock< TInterface >	get_interface ()

virtual void	set_optional (bool optional)

virtual bool	optional () const

Public Member Functions inherited from simics::systemc::tlm2simics::TransactionHandler
	TransactionHandler (InterfaceProvider interface_provider, iface::ReceiverInterface ignore_receiver=NULL, InterfaceProvider *error_interface_provider=NULL)

virtual	~TransactionHandler ()

void	set_gasket (GasketInterface::Ptr gasketInterface) override

bool	get_direct_mem_ptr (ConfObjectRef &simics_obj, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override

unsigned int	debug_transaction (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

void	update_dmi_allowed (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

bool	byte_enable_supported (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

const GasketOwner *	gasket_owner () const override

const InterfaceProvider *	interface_provider () const override

Public Member Functions inherited from simics::systemc::tlm2simics::GasketOwner
	GasketOwner ()

	GasketOwner (const GasketOwner &)=delete

GasketOwner &	operator= (const GasketOwner &)=delete

virtual	~GasketOwner ()=default

virtual void	set_gasket (GasketInterface::Ptr gasketInterface)

GasketInterface::Ptr	gasket () const

Public Member Functions inherited from simics::systemc::Registrant< TransactionHandlerInterface >
	Registrant ()

	Registrant (const Registrant &rhs)

virtual	~Registrant ()

void	detach ()

Public Member Functions inherited from simics::systemc::iface::PcieMapInterface
virtual void	add_map (types::map_info_t info, types::pcie_type_t type)=0

virtual void	del_map (types::map_info_t::physical_address_t base, types::pcie_type_t type)=0

virtual void	add_function (conf_object_t *map_obj, uint16_t function_id)=0

virtual void	del_function (conf_object_t *map_obj, uint16_t function_id)=0

virtual void	enable_function (uint16_t function_id)=0

virtual void	disable_function (uint16_t function_id)=0

virtual uint16_t	get_device_id (conf_object_t *dev_obj)=0

virtual	~PcieMapInterface ()

Additional Inherited Members
Protected Member Functions inherited from simics::systemc::InterfaceProvider
virtual const interface_t *	get_interface ()

Protected Attributes inherited from simics::systemc::InterfaceProvider
simics::ConfObjectRef	target_obj_

const interface_t *	interface_

const char *	interface_name_

bool	optional_

std::set< TargetUpdateListener * > *	target_update_listeners_

Protected Attributes inherited from simics::systemc::tlm2simics::TransactionHandler
InterfaceProvider *	interface_provider_

ErrorTransactionHandler	error_transaction_handler_

Protected Attributes inherited from simics::systemc::tlm2simics::GasketOwner
GasketInterface::Ptr	gasket_

Constructor & Destructor Documentation

◆ PcieMap() [1/2]

simics::systemc::tlm2simics::PcieMap::PcieMap ( )

inline

◆ ~PcieMap()

virtual simics::systemc::tlm2simics::PcieMap::~PcieMap ( )

virtual

◆ PcieMap() [2/2]

simics::systemc::tlm2simics::PcieMap::PcieMap ( const PcieMap & other )

delete

Member Function Documentation

◆ add_function()

void simics::systemc::tlm2simics::PcieMap::add_function	(	conf_object_t *	map_obj,
		uint16_t	function_id
	)

overridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ add_map()

void simics::systemc::tlm2simics::PcieMap::add_map	(	types::map_info_t	info,
		types::pcie_type_t	type
	)

overridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ del_function()

void simics::systemc::tlm2simics::PcieMap::del_function	(	conf_object_t *	map_obj,
		uint16_t	function_id
	)

overridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ del_map()

void simics::systemc::tlm2simics::PcieMap::del_map	(	types::map_info_t::physical_address_t	base,
		types::pcie_type_t	type
	)

overridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ disable_function()

void simics::systemc::tlm2simics::PcieMap::disable_function ( uint16_t function_id )

overridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ enable_function()

void simics::systemc::tlm2simics::PcieMap::enable_function ( uint16_t function_id )

overridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ get_device_id()

uint16_t simics::systemc::tlm2simics::PcieMap::get_device_id ( conf_object_t * dev_obj )

overridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ operator=()

PcieMap & simics::systemc::tlm2simics::PcieMap::operator= ( const PcieMap & other )

delete

◆ receiver()

iface::ReceiverInterface * simics::systemc::tlm2simics::PcieMap::receiver ( )

override

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/tlm2simics/pcie_map.h
