simics::systemc::InterfaceProvider Class Reference

Returns the interface provided by the associated Simics object. More...

#include <interface_provider.h>

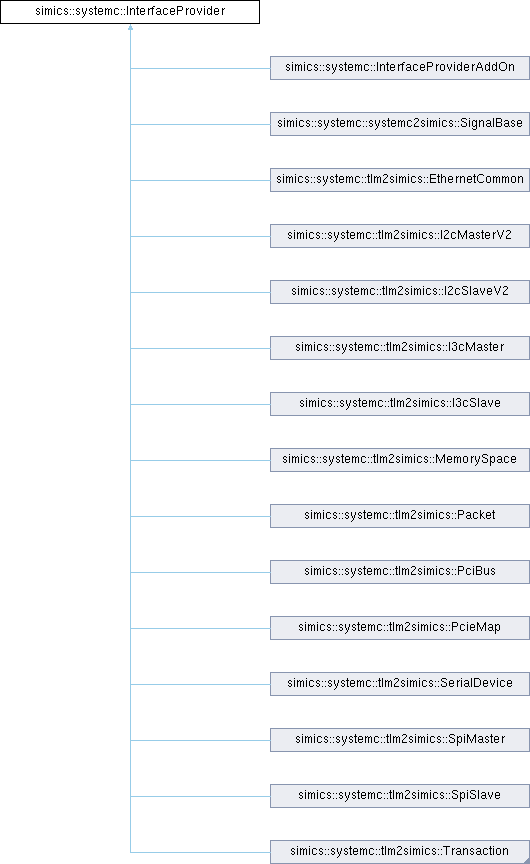

Inheritance diagram for simics::systemc::InterfaceProvider:

Classes
class	TargetUpdateListener

Public Member Functions
	InterfaceProvider (const char *interface_name)
	InterfaceProvider (const InterfaceProvider &)=delete
InterfaceProvider &	operator= (const InterfaceProvider &)=delete
virtual	~InterfaceProvider ()
virtual void	set_target (const ConfObjectRef &obj)
virtual void	add_target_update_listener (TargetUpdateListener *l)
virtual void	remove_target_update_listener (TargetUpdateListener *l)
virtual const simics::ConfObjectRef &	target () const
virtual bool	has_interface ()
virtual const char *	get_interface_name () const
template<typename TInterface >
SimicsTargetLock< TInterface >	get_interface ()
virtual void	set_optional (bool optional)
virtual bool	optional () const

Protected Member Functions
virtual const interface_t *	get_interface ()

Protected Attributes
simics::ConfObjectRef	target_obj_
const interface_t *	interface_
const char *	interface_name_
bool	optional_
std::set< TargetUpdateListener * > *	target_update_listeners_

Detailed Description

Returns the interface provided by the associated Simics object.

This class is typically used with tlm2simics gaskets and connector attributes, making sure that the Simics object implements the requested interface.

Constructor & Destructor Documentation

InterfaceProvider() [1/2]

simics::systemc::InterfaceProvider::InterfaceProvider ( const char *  interface_name )

inlineexplicit

InterfaceProvider() [2/2]

simics::systemc::InterfaceProvider::InterfaceProvider ( const InterfaceProvider &  )

delete

~InterfaceProvider()

virtual simics::systemc::InterfaceProvider::~InterfaceProvider ( )

inlinevirtual

Member Function Documentation

add_target_update_listener()

virtual void simics::systemc::InterfaceProvider::add_target_update_listener ( TargetUpdateListener *  l )

inlinevirtual

get_interface() [1/2]

template<typename TInterface >

SimicsTargetLock< TInterface > simics::systemc::InterfaceProvider::get_interface ( )

inline

get_interface() [2/2]

virtual const interface_t * simics::systemc::InterfaceProvider::get_interface ( )

inlineprotectedvirtual

get_interface_name()

virtual const char * simics::systemc::InterfaceProvider::get_interface_name ( ) const

inlinevirtual

has_interface()

virtual bool simics::systemc::InterfaceProvider::has_interface ( )

inlinevirtual

operator=()

InterfaceProvider & simics::systemc::InterfaceProvider::operator= ( const InterfaceProvider &  )

delete

optional()

virtual bool simics::systemc::InterfaceProvider::optional ( ) const

inlinevirtual

Reimplemented in simics::systemc::InterfaceProviderAddOn.

remove_target_update_listener()

virtual void simics::systemc::InterfaceProvider::remove_target_update_listener ( TargetUpdateListener *  l )

inlinevirtual

set_optional()

virtual void simics::systemc::InterfaceProvider::set_optional ( bool  optional )

inlinevirtual

Reimplemented in simics::systemc::InterfaceProviderAddOn.

set_target()

virtual void simics::systemc::InterfaceProvider::set_target ( const ConfObjectRef &  obj )

inlinevirtual

Reimplemented in simics::systemc::InterfaceProviderAddOn, and simics::systemc::tlm2simics::PciBus.

target()

virtual const simics::ConfObjectRef & simics::systemc::InterfaceProvider::target ( ) const

inlinevirtual

Member Data Documentation

interface_

const interface_t* simics::systemc::InterfaceProvider::interface_

protected

interface_name_

const char* simics::systemc::InterfaceProvider::interface_name_

protected

optional_

bool simics::systemc::InterfaceProvider::optional_

protected

target_obj_

simics::ConfObjectRef simics::systemc::InterfaceProvider::target_obj_

protected

target_update_listeners_

std::set<TargetUpdateListener*>* simics::systemc::InterfaceProvider::target_update_listeners_

protected

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/interface_provider.h
