Protocol specific transaction handler for Simics pci_bus interface. More...

#include <pci_bus.h>

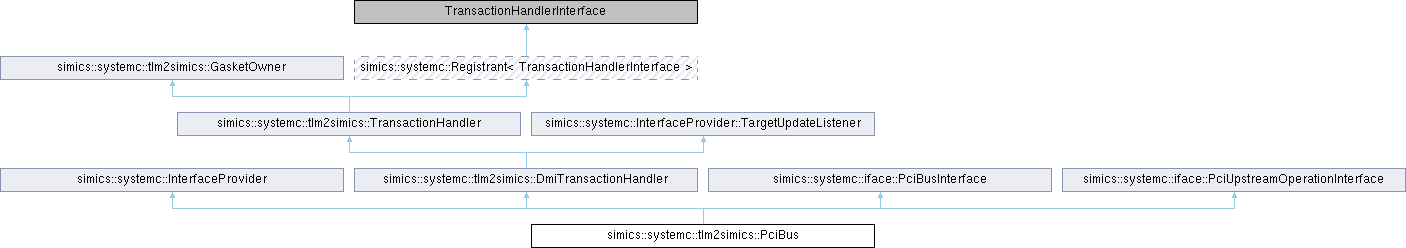

Inheritance diagram for simics::systemc::tlm2simics::PciBus:

Public Member Functions
	PciBus ()

bool	get_direct_mem_ptr (ConfObjectRef &simics_obj, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override

void	raise_interrupt (int pin) override

void	lower_interrupt (int pin) override

int	interrupt_acknowledge () override

int	add_map (types::addr_space_t space, types::map_info_t info) override

int	remove_map (types::addr_space_t space, int function) override

void	set_bus_number (int bus_id) override

void	set_sub_bus_number (int bus_id) override

void	add_default (types::addr_space_t space, types::map_info_t info) override

void	remove_default (types::addr_space_t space) override

void	bus_reset () override

void	special_cycle (uint32_t value) override

void	system_error () override

int	get_bus_address () override

void	set_device_status (int device, int function, int enabled) override

types::pci_bus_exception_type_t	read (uint16_t rid, types::addr_space_t space) override

types::pci_bus_exception_type_t	write (uint16_t rid, types::addr_space_t space) override

void	set_target (const ConfObjectRef &obj) override

void	set_device (conf_object_t *device)

iface::ReceiverInterface *	receiver () override

Public Member Functions inherited from simics::systemc::InterfaceProvider
	InterfaceProvider (const char *interface_name)

	InterfaceProvider (const InterfaceProvider &)=delete

InterfaceProvider &	operator= (const InterfaceProvider &)=delete

virtual	~InterfaceProvider ()

virtual void	set_target (const ConfObjectRef &obj)

virtual void	add_target_update_listener (TargetUpdateListener *l)

virtual void	remove_target_update_listener (TargetUpdateListener *l)

virtual const simics::ConfObjectRef &	target () const

virtual bool	has_interface ()

virtual const char *	get_interface_name () const

template<typename TInterface >
SimicsTargetLock< TInterface >	get_interface ()

virtual void	set_optional (bool optional)

virtual bool	optional () const

Public Member Functions inherited from simics::systemc::tlm2simics::DmiTransactionHandler
	DmiTransactionHandler (InterfaceProvider interface_provider, iface::ReceiverInterface ignore_receiver=NULL, InterfaceProvider *dmi_interface_provider=NULL)

virtual	~DmiTransactionHandler ()

bool	get_direct_mem_ptr (ConfObjectRef &simics_obj, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override

void	update_dmi_allowed (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

void	update_target (ConfObjectRef old_target, ConfObjectRef new_target) override

Public Member Functions inherited from simics::systemc::tlm2simics::TransactionHandler
	TransactionHandler (InterfaceProvider interface_provider, iface::ReceiverInterface ignore_receiver=NULL, InterfaceProvider *error_interface_provider=NULL)

virtual	~TransactionHandler ()

void	set_gasket (GasketInterface::Ptr gasketInterface) override

bool	get_direct_mem_ptr (ConfObjectRef &simics_obj, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override

unsigned int	debug_transaction (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

void	update_dmi_allowed (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

bool	byte_enable_supported (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

const GasketOwner *	gasket_owner () const override

const InterfaceProvider *	interface_provider () const override

Public Member Functions inherited from simics::systemc::tlm2simics::GasketOwner
	GasketOwner ()

	GasketOwner (const GasketOwner &)=delete

GasketOwner &	operator= (const GasketOwner &)=delete

virtual	~GasketOwner ()=default

virtual void	set_gasket (GasketInterface::Ptr gasketInterface)

GasketInterface::Ptr	gasket () const

Public Member Functions inherited from simics::systemc::Registrant< TransactionHandlerInterface >
	Registrant ()

	Registrant (const Registrant &rhs)

virtual	~Registrant ()

void	detach ()

Public Member Functions inherited from simics::systemc::InterfaceProvider::TargetUpdateListener
virtual	~TargetUpdateListener ()

virtual void	update_target (ConfObjectRef old_target, ConfObjectRef new_target)=0

Public Member Functions inherited from simics::systemc::iface::PciBusInterface
virtual void	raise_interrupt (int pin)=0

virtual void	lower_interrupt (int pin)=0

virtual int	interrupt_acknowledge ()=0

virtual int	add_map (types::addr_space_t space, types::map_info_t info)=0

virtual int	remove_map (types::addr_space_t space, int function)=0

virtual void	set_bus_number (int bus_id)=0

virtual void	set_sub_bus_number (int bus_id)=0

virtual void	add_default (types::addr_space_t space, types::map_info_t info)=0

virtual void	remove_default (types::addr_space_t space)=0

virtual void	bus_reset ()=0

virtual void	special_cycle (uint32_t value)=0

virtual void	system_error ()=0

virtual int	get_bus_address ()=0

virtual void	set_device_status (int device, int function, int enabled)=0

virtual	~PciBusInterface ()

Public Member Functions inherited from simics::systemc::iface::PciUpstreamOperationInterface
virtual types::pci_bus_exception_type_t	read (uint16_t rid, types::addr_space_t space)=0

virtual types::pci_bus_exception_type_t	write (uint16_t rid, types::addr_space_t space)=0

virtual	~PciUpstreamOperationInterface ()

Additional Inherited Members
Protected Member Functions inherited from simics::systemc::InterfaceProvider
virtual const interface_t *	get_interface ()

Protected Member Functions inherited from simics::systemc::tlm2simics::DmiTransactionHandler
SimicsTargetLock< const direct_memory_interface_t >	direct_memory (ConfObjectRef target)

SimicsTargetLock< const direct_memory_lookup_interface_t >	direct_memory_lookup ()

Protected Attributes inherited from simics::systemc::InterfaceProvider
simics::ConfObjectRef	target_obj_

const interface_t *	interface_

const char *	interface_name_

bool	optional_

std::set< TargetUpdateListener * > *	target_update_listeners_

Protected Attributes inherited from simics::systemc::tlm2simics::TransactionHandler
InterfaceProvider *	interface_provider_

ErrorTransactionHandler	error_transaction_handler_

Protected Attributes inherited from simics::systemc::tlm2simics::GasketOwner
GasketInterface::Ptr	gasket_
