simics::systemc::tlm2simics::I3cMaster Class Reference

Protocol specific transaction handler for Simics i3c_master interface. More...

#include <i3c_master.h>

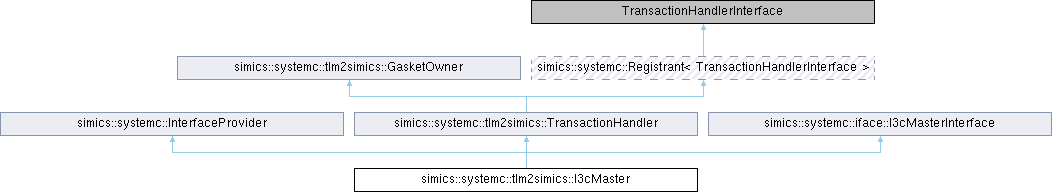

Inheritance diagram for simics::systemc::tlm2simics::I3cMaster:
simics::systemc::InterfaceProvider simics::systemc::tlm2simics::TransactionHandler simics::systemc::iface::I3cMasterInterface simics::systemc::tlm2simics::GasketOwner simics::systemc::Registrant< TransactionHandlerInterface >

Public Member Functions

 I3cMaster ()

virtual ~I3cMaster ()

void acknowledge (types::i3c_ack_t ack) override

void read_response (uint8_t value, bool more) override

void daa_response (uint64_t id, uint8_t bcr, uint8_t dcr) override

void ibi_request () override

void ibi_address (uint8_t address) override

iface::ReceiverInterface * receiver () override

- Public Member Functions inherited from simics::systemc::InterfaceProvider
 InterfaceProvider (const char *interface_name)

 InterfaceProvider (const InterfaceProvider &)=delete

InterfaceProvider & operator= (const InterfaceProvider &)=delete

virtual ~InterfaceProvider ()

virtual void set_target (const ConfObjectRef &obj)

virtual void add_target_update_listener (TargetUpdateListener *l)

virtual void remove_target_update_listener (TargetUpdateListener *l)

virtual const simics::ConfObjectRef & target () const

virtual bool has_interface ()

virtual const char * get_interface_name () const

template<typename TInterface >
SimicsTargetLock< TInterface > get_interface ()

virtual void set_optional (bool optional)

virtual bool optional () const

- Public Member Functions inherited from simics::systemc::tlm2simics::TransactionHandler
 TransactionHandler (InterfaceProvider *interface_provider, iface::ReceiverInterface *ignore_receiver=NULL, InterfaceProvider *error_interface_provider=NULL)

virtual ~TransactionHandler ()

void set_gasket (GasketInterface::Ptr gasketInterface) override

bool get_direct_mem_ptr (ConfObjectRef &simics_obj, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override

unsigned int debug_transaction (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

void update_dmi_allowed (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

bool byte_enable_supported (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

const GasketOwner * gasket_owner () const override

const InterfaceProvider * interface_provider () const override

- Public Member Functions inherited from simics::systemc::tlm2simics::GasketOwner
 GasketOwner ()

 GasketOwner (const GasketOwner &)=delete

GasketOwner & operator= (const GasketOwner &)=delete

virtual ~GasketOwner ()=default

virtual void set_gasket (GasketInterface::Ptr gasketInterface)

GasketInterface::Ptr gasket () const

- Public Member Functions inherited from simics::systemc::Registrant< TransactionHandlerInterface >
 Registrant ()

 Registrant (const Registrant &rhs)

virtual ~Registrant ()

void detach ()

- Public Member Functions inherited from simics::systemc::iface::I3cMasterInterface
virtual ~I3cMasterInterface ()

virtual void acknowledge (types::i3c_ack_t ack)=0

virtual void read_response (uint8_t value, bool more)=0

virtual void daa_response (uint64_t id, uint8_t bcr, uint8_t dcr)=0

virtual void ibi_request ()=0

virtual void ibi_address (uint8_t address)=0


Additional Inherited Members

- Protected Member Functions inherited from simics::systemc::InterfaceProvider
virtual const interface_t * get_interface ()

- Protected Attributes inherited from simics::systemc::InterfaceProvider
simics::ConfObjectRef target_obj_

const interface_t * interface_

const char * interface_name_

bool optional_

std::set< TargetUpdateListener * > * target_update_listeners_

- Protected Attributes inherited from simics::systemc::tlm2simics::TransactionHandler
InterfaceProvider * interface_provider_

ErrorTransactionHandler error_transaction_handler_

- Protected Attributes inherited from simics::systemc::tlm2simics::GasketOwner
GasketInterface::Ptr gasket_


Detailed Description

Protocol specific transaction handler for Simics i3c_master interface.

Constructor & Destructor Documentation

◆ I3cMaster()

simics::systemc::tlm2simics::I3cMaster::I3cMaster ( )
inline

◆ ~I3cMaster()

virtual simics::systemc::tlm2simics::I3cMaster::~I3cMaster ( )
virtual

Member Function Documentation

◆ acknowledge()

void simics::systemc::tlm2simics::I3cMaster::acknowledge ( types::i3c_ack_t  ack)
overridevirtual

Implements simics::systemc::iface::I3cMasterInterface.

◆ daa_response()

void simics::systemc::tlm2simics::I3cMaster::daa_response ( uint64_t  id,
uint8_t  bcr,
uint8_t  dcr
)
overridevirtual

Implements simics::systemc::iface::I3cMasterInterface.

◆ ibi_address()

void simics::systemc::tlm2simics::I3cMaster::ibi_address ( uint8_t  address)
overridevirtual

Implements simics::systemc::iface::I3cMasterInterface.

◆ ibi_request()

void simics::systemc::tlm2simics::I3cMaster::ibi_request ( )
overridevirtual

Implements simics::systemc::iface::I3cMasterInterface.

◆ read_response()

void simics::systemc::tlm2simics::I3cMaster::read_response ( uint8_t  value,
bool  more
)
overridevirtual

Implements simics::systemc::iface::I3cMasterInterface.

◆ receiver()

iface::ReceiverInterface * simics::systemc::tlm2simics::I3cMaster::receiver ( )
override
The documentation for this class was generated from the following file:
