simics::systemc::tlm2simics::I2cSlaveV2 Class Reference

Protocol specific transaction handler for Simics i2c_slave_v2 interface. More...

#include <i2c_slave_v2.h>

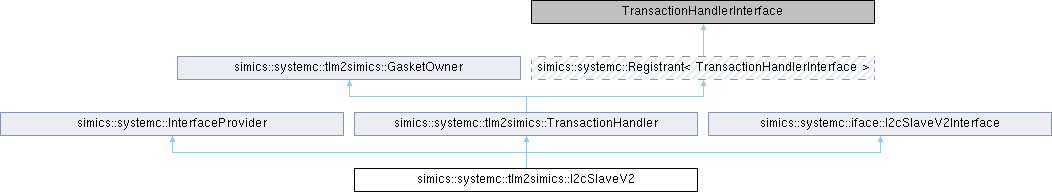

Inheritance diagram for simics::systemc::tlm2simics::I2cSlaveV2:
simics::systemc::InterfaceProvider simics::systemc::tlm2simics::TransactionHandler simics::systemc::iface::I2cSlaveV2Interface simics::systemc::tlm2simics::GasketOwner simics::systemc::Registrant< TransactionHandlerInterface >

Public Member Functions

 I2cSlaveV2 ()

virtual ~I2cSlaveV2 ()

void start (uint8_t address) override

void read () override

void write (uint8_t value) override

void stop () override

std::vector< uint8_t > addresses () override

iface::ReceiverInterface * receiver () override

- Public Member Functions inherited from simics::systemc::InterfaceProvider
 InterfaceProvider (const char *interface_name)

 InterfaceProvider (const InterfaceProvider &)=delete

InterfaceProvider & operator= (const InterfaceProvider &)=delete

virtual ~InterfaceProvider ()

virtual void set_target (const ConfObjectRef &obj)

virtual void add_target_update_listener (TargetUpdateListener *l)

virtual void remove_target_update_listener (TargetUpdateListener *l)

virtual const simics::ConfObjectRef & target () const

virtual bool has_interface ()

virtual const char * get_interface_name () const

template<typename TInterface >
SimicsTargetLock< TInterface > get_interface ()

virtual void set_optional (bool optional)

virtual bool optional () const

- Public Member Functions inherited from simics::systemc::tlm2simics::TransactionHandler
 TransactionHandler (InterfaceProvider *interface_provider, iface::ReceiverInterface *ignore_receiver=NULL, InterfaceProvider *error_interface_provider=NULL)

virtual ~TransactionHandler ()

void set_gasket (GasketInterface::Ptr gasketInterface) override

bool get_direct_mem_ptr (ConfObjectRef &simics_obj, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override

unsigned int debug_transaction (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

void update_dmi_allowed (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

bool byte_enable_supported (ConfObjectRef &simics_obj, tlm::tlm_generic_payload *trans) override

const GasketOwner * gasket_owner () const override

const InterfaceProvider * interface_provider () const override

- Public Member Functions inherited from simics::systemc::tlm2simics::GasketOwner
 GasketOwner ()

 GasketOwner (const GasketOwner &)=delete

GasketOwner & operator= (const GasketOwner &)=delete

virtual ~GasketOwner ()=default

virtual void set_gasket (GasketInterface::Ptr gasketInterface)

GasketInterface::Ptr gasket () const

- Public Member Functions inherited from simics::systemc::Registrant< TransactionHandlerInterface >
 Registrant ()

 Registrant (const Registrant &rhs)

virtual ~Registrant ()

void detach ()

- Public Member Functions inherited from simics::systemc::iface::I2cSlaveV2Interface
virtual void start (uint8_t address)=0

virtual void read ()=0

virtual void write (uint8_t value)=0

virtual void stop ()=0

virtual std::vector< uint8_t > addresses ()=0

virtual ~I2cSlaveV2Interface ()


Additional Inherited Members

- Protected Member Functions inherited from simics::systemc::InterfaceProvider
virtual const interface_t * get_interface ()

- Protected Attributes inherited from simics::systemc::InterfaceProvider
simics::ConfObjectRef target_obj_

const interface_t * interface_

const char * interface_name_

bool optional_

std::set< TargetUpdateListener * > * target_update_listeners_

- Protected Attributes inherited from simics::systemc::tlm2simics::TransactionHandler
InterfaceProvider * interface_provider_

ErrorTransactionHandler error_transaction_handler_

- Protected Attributes inherited from simics::systemc::tlm2simics::GasketOwner
GasketInterface::Ptr gasket_


Detailed Description

Protocol specific transaction handler for Simics i2c_slave_v2 interface.

Constructor & Destructor Documentation

◆ I2cSlaveV2()

simics::systemc::tlm2simics::I2cSlaveV2::I2cSlaveV2 ( )
inline

◆ ~I2cSlaveV2()

virtual simics::systemc::tlm2simics::I2cSlaveV2::~I2cSlaveV2 ( )
virtual

Member Function Documentation

◆ addresses()

std::vector< uint8_t > simics::systemc::tlm2simics::I2cSlaveV2::addresses ( )
overridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

◆ read()

void simics::systemc::tlm2simics::I2cSlaveV2::read ( )
overridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

◆ receiver()

iface::ReceiverInterface * simics::systemc::tlm2simics::I2cSlaveV2::receiver ( )
override

◆ start()

void simics::systemc::tlm2simics::I2cSlaveV2::start ( uint8_t  address)
overridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

◆ stop()

void simics::systemc::tlm2simics::I2cSlaveV2::stop ( )
overridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

◆ write()

void simics::systemc::tlm2simics::I2cSlaveV2::write ( uint8_t  value)
overridevirtual

Implements simics::systemc::iface::I2cSlaveV2Interface.

The documentation for this class was generated from the following file:
