simics::systemc::systemc2simics::GasketBase Class Reference

Gasket for translating a SystemC sc_signal of type bool into a Simics signal interface call. More...

#include <gasket.h>

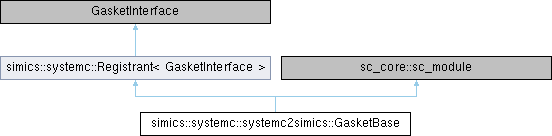

Inheritance diagram for simics::systemc::systemc2simics::GasketBase:

Public Member Functions
	SC_HAS_PROCESS (GasketBase)
	GasketBase (sc_core::sc_module_name, simics::systemc::InterfaceProvider *provider, bool initial_value=false)
sc_core::sc_signal< bool, sc_core::SC_MANY_WRITERS > *	signal () override
std::string	gasket_name () const override
const InterfaceProvider *	interface_provider () const override
void	end_of_elaboration () override
Public Member Functions inherited from simics::systemc::Registrant< GasketInterface >
	Registrant ()
	Registrant (const Registrant &rhs)
virtual	~Registrant ()
void	detach ()

Detailed Description

Gasket for translating a SystemC sc_signal of type bool into a Simics signal interface call.

Constructor & Destructor Documentation

GasketBase()

simics::systemc::systemc2simics::GasketBase::GasketBase	(	sc_core::sc_module_name	,
		simics::systemc::InterfaceProvider *	provider,
		bool	initial_value = false
	)

Member Function Documentation

end_of_elaboration()

void simics::systemc::systemc2simics::GasketBase::end_of_elaboration ( )

override

gasket_name()

std::string simics::systemc::systemc2simics::GasketBase::gasket_name ( ) const

inlineoverride

interface_provider()

const InterfaceProvider * simics::systemc::systemc2simics::GasketBase::interface_provider ( ) const

inlineoverride

SC_HAS_PROCESS()

simics::systemc::systemc2simics::GasketBase::SC_HAS_PROCESS

(

GasketBase

)

signal()

sc_core::sc_signal< bool, sc_core::SC_MANY_WRITERS > * simics::systemc::systemc2simics::GasketBase::signal ( )

inlineoverride

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.1276.25082605390.1/src/extensions/systemc-library/simics/systemc/systemc2simics/gasket.h
