simics::systemc::simics2tlm::TransactionGasketAdapter Class Reference

Adapter for Transaction gasket. More...

#include <transaction_gasket_adapter.h>

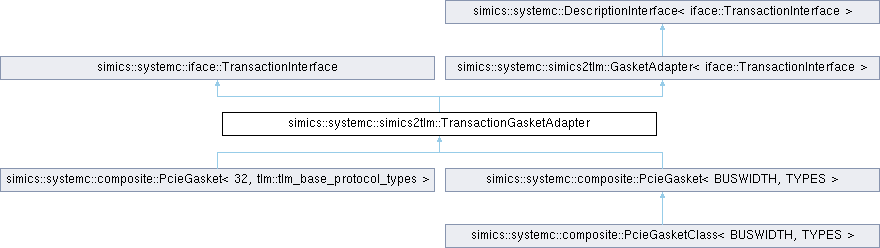

Inheritance diagram for simics::systemc::simics2tlm::TransactionGasketAdapter:
simics::systemc::iface::TransactionInterface simics::systemc::simics2tlm::GasketAdapter< iface::TransactionInterface > simics::systemc::DescriptionInterface< TBase > simics::systemc::composite::PcieGasket< 32, tlm::tlm_base_protocol_types > simics::systemc::composite::PcieGasket< BUSWIDTH, TYPES > simics::systemc::composite::PcieGasketClass< BUSWIDTH, TYPES >

Public Member Functions

 TransactionGasketAdapter (TransactionInterface *transaction, iface::SimulationInterface *simulation)

exception_type_t issue (transaction_t *t, uint64 addr) override

simics2tlm::GasketOwner * gasket_owner () const override

- Public Member Functions inherited from simics::systemc::iface::TransactionInterface
virtual exception_type_t issue (transaction_t *t, uint64 addr)=0

virtual ~TransactionInterface ()

- Public Member Functions inherited from simics::systemc::simics2tlm::GasketAdapter< iface::TransactionInterface >
virtual ~GasketAdapter ()

std::vector< std::string > description (DescriptionType type) override

virtual simics2tlm::GasketOwner * gasket_owner () const=0

- Public Member Functions inherited from simics::systemc::DescriptionInterface< TBase >
virtual ~DescriptionInterface ()

virtual std::vector< std::string > description (DescriptionType type)=0


Additional Inherited Members

- Protected Member Functions inherited from simics::systemc::simics2tlm::GasketAdapter< iface::TransactionInterface >
std::vector< std::string > description (GasketInterface::Ptr gasket_ptr)

void append (std::string *result, std::string s)


Detailed Description

Adapter for Transaction gasket.

Constructor & Destructor Documentation

◆ TransactionGasketAdapter()

simics::systemc::simics2tlm::TransactionGasketAdapter::TransactionGasketAdapter ( TransactionInterface *  transaction,
iface::SimulationInterface *  simulation
)
inline

Member Function Documentation

◆ gasket_owner()

simics2tlm::GasketOwner * simics::systemc::simics2tlm::TransactionGasketAdapter::gasket_owner ( ) const
inlineoverridevirtual

Implements simics::systemc::simics2tlm::GasketAdapter< iface::TransactionInterface >.

◆ issue()

exception_type_t simics::systemc::simics2tlm::TransactionGasketAdapter::issue ( transaction_t *  t,
uint64  addr
)
inlineoverridevirtual

Implements simics::systemc::iface::TransactionInterface.

The documentation for this class was generated from the following file:
