simics::systemc::iface::ExtensionSender< TSocket > Class Template Reference

Generic extension sender initialized with a TLM2 initiator socket of TSocket type. More...

#include <extension_sender.h>

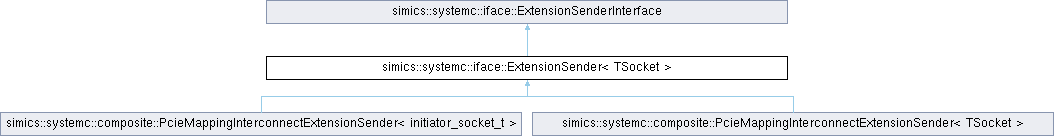

Inheritance diagram for simics::systemc::iface::ExtensionSender< TSocket >:

Public Member Functions
	ExtensionSender ()
void	init (TSocket *socket)
void	set_delay (sc_core::sc_time delay)
void	set_payload (tlm::tlm_generic_payload *payload)
virtual Transaction	transaction ()
	Called by extension to get a new Transaction.
virtual void	send_extension (Transaction *transaction)
	Called by extension after the extension is set on the payload.
virtual void	send_failed (Transaction *transaction)
	Called by extension if method_call invocation was missing.
virtual	~ExtensionSender ()
Public Member Functions inherited from simics::systemc::iface::ExtensionSenderInterface
virtual Transaction	transaction ()=0
	Called by extension to get a new Transaction.
virtual void	send_extension (Transaction *transaction)=0
	Called by extension after the extension is set on the payload.
virtual void	send_failed (Transaction *transaction)=0
	Called by extension if method_call invocation was missing.
virtual	~ExtensionSenderInterface ()

Detailed Description

template<typename TSocket>
class simics::systemc::iface::ExtensionSender< TSocket >

Generic extension sender initialized with a TLM2 initiator socket of TSocket type.

The payload with the extension is sent using b_transport() interface method of the socket.

Constructor & Destructor Documentation

ExtensionSender()

template<typename TSocket >

simics::systemc::iface::ExtensionSender< TSocket >::ExtensionSender ( )

inline

~ExtensionSender()

template<typename TSocket >

virtual simics::systemc::iface::ExtensionSender< TSocket >::~ExtensionSender ( )

inlinevirtual

Member Function Documentation

init()

template<typename TSocket >

void simics::systemc::iface::ExtensionSender< TSocket >::init ( TSocket *  socket )

inline

send_extension()

template<typename TSocket >

virtual void simics::systemc::iface::ExtensionSender< TSocket >::send_extension ( Transaction *  transaction )

inlinevirtual

Called by extension after the extension is set on the payload.

Implements simics::systemc::iface::ExtensionSenderInterface.

Reimplemented in simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket >, and simics::systemc::composite::PcieMappingInterconnectExtensionSender< initiator_socket_t >.

send_failed()

template<typename TSocket >

virtual void simics::systemc::iface::ExtensionSender< TSocket >::send_failed ( Transaction *  transaction )

inlinevirtual

Called by extension if method_call invocation was missing.

Implements simics::systemc::iface::ExtensionSenderInterface.

Reimplemented in simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket >, and simics::systemc::composite::PcieMappingInterconnectExtensionSender< initiator_socket_t >.

set_delay()

template<typename TSocket >

void simics::systemc::iface::ExtensionSender< TSocket >::set_delay ( sc_core::sc_time  delay )

inline

set_payload()

template<typename TSocket >

void simics::systemc::iface::ExtensionSender< TSocket >::set_payload ( tlm::tlm_generic_payload *  payload )

inline

transaction()

template<typename TSocket >

virtual Transaction simics::systemc::iface::ExtensionSender< TSocket >::transaction ( )

inlinevirtual

Called by extension to get a new Transaction.

Implements simics::systemc::iface::ExtensionSenderInterface.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/extension_sender.h
