simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket > Class Template Reference

#include <pcie_mapping_interconnect.h>

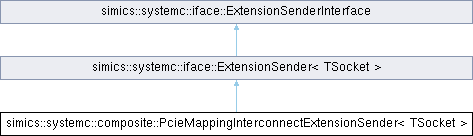

Inheritance diagram for simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket >:

Public Member Functions
virtual	~PcieMappingInterconnectExtensionSender ()
void	send_extension (iface::Transaction *transaction) override
	Called by extension after the extension is set on the payload.
void	send_failed (iface::Transaction *transaction) override
	Called by extension if method_call invocation was missing.
Public Member Functions inherited from simics::systemc::iface::ExtensionSender< TSocket >
	ExtensionSender ()
void	init (TSocket *socket)
void	set_delay (sc_core::sc_time delay)
void	set_payload (tlm::tlm_generic_payload *payload)
virtual Transaction	transaction ()
	Called by extension to get a new Transaction.
virtual void	send_extension (Transaction *transaction)
	Called by extension after the extension is set on the payload.
virtual void	send_failed (Transaction *transaction)
	Called by extension if method_call invocation was missing.
virtual	~ExtensionSender ()
Public Member Functions inherited from simics::systemc::iface::ExtensionSenderInterface
virtual Transaction	transaction ()=0
	Called by extension to get a new Transaction.
virtual void	send_extension (Transaction *transaction)=0
	Called by extension after the extension is set on the payload.
virtual void	send_failed (Transaction *transaction)=0
	Called by extension if method_call invocation was missing.
virtual	~ExtensionSenderInterface ()

Public Attributes
iface::Transaction	failed_transaction_

Constructor & Destructor Documentation

~PcieMappingInterconnectExtensionSender()

template<typename TSocket >

virtual simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket >::~PcieMappingInterconnectExtensionSender ( )

inlinevirtual

Member Function Documentation

send_extension()

template<typename TSocket >

void simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket >::send_extension ( iface::Transaction *  transaction )

inlineoverridevirtual

Called by extension after the extension is set on the payload.

Reimplemented from simics::systemc::iface::ExtensionSender< TSocket >.

send_failed()

template<typename TSocket >

void simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket >::send_failed ( iface::Transaction *  transaction )

inlineoverridevirtual

Called by extension if method_call invocation was missing.

Reimplemented from simics::systemc::iface::ExtensionSender< TSocket >.

Member Data Documentation

failed_transaction_

template<typename TSocket >

iface::Transaction simics::systemc::composite::PcieMappingInterconnectExtensionSender< TSocket >::failed_transaction_

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/composite/pcie_mapping_interconnect.h
