simics::systemc::Connector< InterfaceProvider > Class Template Reference

Provides get/set functionality for a connector attribute, typically registered by using the ConnectorAttribute class. More...

#include <connector.h>

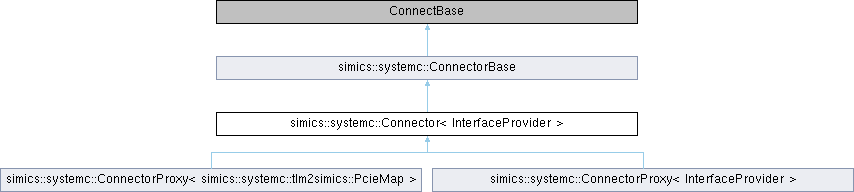

Inheritance diagram for simics::systemc::Connector< InterfaceProvider >:

Public Types
enum	{ is_proxy = false }

Public Member Functions
	Connector ()=default
virtual	~Connector ()=default
	Connector (const Connector &other)
Connector &	operator= (const Connector &other)
bool	set (const ConfObjectRef &connect) override
InterfaceProvider &	provider ()
const InterfaceProvider &	provider () const
InterfaceProvider *	operator-> ()
const InterfaceProvider *	operator-> () const

Additional Inherited Members
Static Protected Attributes inherited from simics::systemc::ConnectorBase
static std::multimap< ConnectorBase *, ConnectorBase * >	root_to_proxy_

Detailed Description

template<typename InterfaceProvider>
class simics::systemc::Connector< InterfaceProvider >

Provides get/set functionality for a connector attribute, typically registered by using the ConnectorAttribute class.

The class derived from InterfaceProvider passed as template parameter to Connector makes sure that the Simics conf-object implements the expected interface (on the given port).

Member Enumeration Documentation

anonymous enum

template<typename InterfaceProvider >

anonymous enum

Enumerator
is_proxy

Constructor & Destructor Documentation

Connector() [1/2]

template<typename InterfaceProvider >

simics::systemc::Connector< InterfaceProvider >::Connector ( )

default

~Connector()

template<typename InterfaceProvider >

virtual simics::systemc::Connector< InterfaceProvider >::~Connector ( )

virtualdefault

Connector() [2/2]

template<typename InterfaceProvider >

simics::systemc::Connector< InterfaceProvider >::Connector ( const Connector< InterfaceProvider > &  other )

inline

Member Function Documentation

operator->() [1/2]

template<typename InterfaceProvider >

InterfaceProvider * simics::systemc::Connector< InterfaceProvider >::operator-> ( )

inline

operator->() [2/2]

template<typename InterfaceProvider >

const InterfaceProvider * simics::systemc::Connector< InterfaceProvider >::operator-> ( ) const

inline

operator=()

template<typename InterfaceProvider >

Connector & simics::systemc::Connector< InterfaceProvider >::operator= ( const Connector< InterfaceProvider > &  other )

inline

provider() [1/2]

template<typename InterfaceProvider >

InterfaceProvider & simics::systemc::Connector< InterfaceProvider >::provider ( )

inline

provider() [2/2]

template<typename InterfaceProvider >

const InterfaceProvider & simics::systemc::Connector< InterfaceProvider >::provider ( ) const

inline

set()

template<typename InterfaceProvider >

bool simics::systemc::Connector< InterfaceProvider >::set ( const ConfObjectRef &  connect )

inlineoverride

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/connector.h
