simics::systemc::systemc2simics::Gasket Class Reference

Gasket for translating a SystemC sc_signal of type bool into a Simics signal interface call. More...

#include <gasket.h>

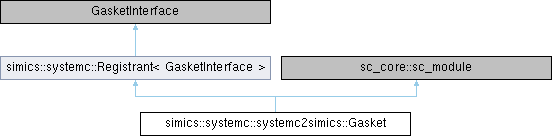

Inheritance diagram for simics::systemc::systemc2simics::Gasket:

Public Member Functions
	SC_HAS_PROCESS (Gasket)
	Gasket (sc_core::sc_module_name, simics::systemc::InterfaceProvider *provider)
virtual sc_core::sc_signal< bool, sc_core::SC_MANY_WRITERS > *	signal ()
std::string	gasket_name () const override
const InterfaceProvider *	interface_provider () const override
Public Member Functions inherited from simics::systemc::Registrant< GasketInterface >
	Registrant ()
	Registrant (const Registrant &rhs)
virtual	~Registrant ()
void	detach ()

Detailed Description

Gasket for translating a SystemC sc_signal of type bool into a Simics signal interface call.

Constructor & Destructor Documentation

Gasket()

simics::systemc::systemc2simics::Gasket::Gasket ( sc_core::sc_module_name  , simics::systemc::InterfaceProvider *  provider  )

inline

Member Function Documentation

gasket_name()

std::string simics::systemc::systemc2simics::Gasket::gasket_name ( ) const

inlineoverride

interface_provider()

const InterfaceProvider * simics::systemc::systemc2simics::Gasket::interface_provider ( ) const

inlineoverride

SC_HAS_PROCESS()

simics::systemc::systemc2simics::Gasket::SC_HAS_PROCESS

(

Gasket

)

signal()

virtual sc_core::sc_signal< bool, sc_core::SC_MANY_WRITERS > * simics::systemc::systemc2simics::Gasket::signal ( )

inlinevirtual

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/mono-124635/src/extensions/systemc-library/simics/systemc/systemc2simics/gasket.h
