#include <sc_protocol_checker_tool.h>

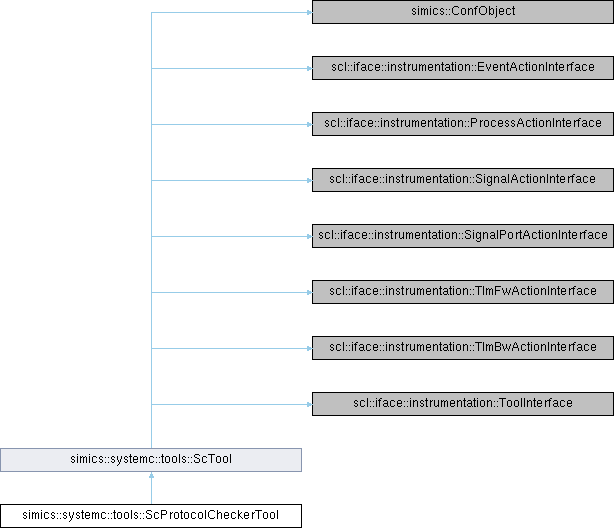

Inheritance diagram for simics::systemc::tools::ScProtocolCheckerTool:

Public Member Functions
	ScProtocolCheckerTool (simics::ConfObjectRef o)

virtual	~ScProtocolCheckerTool ()

void	nb_transport_fw_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay) override

void	nb_transport_fw_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay, tlm::tlm_sync_enum *ret) override

void	b_transport_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, sc_core::sc_time *delay) override

void	b_transport_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, sc_core::sc_time *delay) override

void	get_direct_mem_ptr_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_dmi *dmi_data) override

void	get_direct_mem_ptr_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_dmi dmi_data, bool ret) override

void	transport_dbg_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans) override

void	transport_dbg_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, unsigned int *ret) override

void	nb_transport_bw_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay) override

void	nb_transport_bw_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay, tlm::tlm_sync_enum *ret) override

void	invalidate_direct_mem_ptr_pre (scla::ProxyInterface proxy, sc_dt::uint64 start_range, sc_dt::uint64 *end_range) override

void	invalidate_direct_mem_ptr_post (scla::ProxyInterface proxy, sc_dt::uint64 start_range, sc_dt::uint64 *end_range) override

tlm_utils::tlm2_base_protocol_checker &	checker (scla::ProxyInterface *proxy)

Public Member Functions inherited from simics::systemc::tools::ScTool
	ScTool (simics::ConfObjectRef o)

conf_object_t *	connect (conf_object_t *controller, attr_value_t args) override

void	disconnect (conf_object_t *conn) override

Static Public Member Functions
static void	initialize (const std::string &module_name)

Static Public Member Functions inherited from simics::systemc::tools::ScTool
template<class T >
static simics::ConfClassPtr	register_class (std::string name, std::string long_name, std::string documentation)

Additional Inherited Members
Protected Member Functions inherited from simics::systemc::tools::ScTool
void	triggered (scla::ProxyInterface proxy, const char event_type, const char class_type, void object, sc_core::sc_time *timestamp) override

void	process_state_change (scla::ProxyInterface proxy, const char event_type, const char class_type, void object, sc_core::sc_time *timestamp, bool internal) override

void	fired (scla::ProxyInterface *proxy) override

void	signal_port_value_update (scla::ProxyInterface proxy, sc_core::sc_object signal) override

void	nb_transport_fw_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay) override

void	nb_transport_fw_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay, tlm::tlm_sync_enum *ret) override

void	b_transport_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, sc_core::sc_time *delay) override

void	b_transport_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, sc_core::sc_time *delay) override

void	get_direct_mem_ptr_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_dmi *dmi_data) override

void	get_direct_mem_ptr_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_dmi dmi_data, bool ret) override

void	transport_dbg_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans) override

void	transport_dbg_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, unsigned int *ret) override

void	nb_transport_bw_pre (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay) override

void	nb_transport_bw_post (scla::ProxyInterface proxy, tlm::tlm_generic_payload trans, tlm::tlm_phase phase, sc_core::sc_time delay, tlm::tlm_sync_enum *ret) override

void	invalidate_direct_mem_ptr_pre (scla::ProxyInterface proxy, uint64 start_range, uint64 *end_range) override

void	invalidate_direct_mem_ptr_post (scla::ProxyInterface proxy, uint64 start_range, uint64 *end_range) override

Constructor & Destructor Documentation

◆ ScProtocolCheckerTool()

simics::systemc::tools::ScProtocolCheckerTool::ScProtocolCheckerTool ( simics::ConfObjectRef o )

inlineexplicit

◆ ~ScProtocolCheckerTool()

virtual simics::systemc::tools::ScProtocolCheckerTool::~ScProtocolCheckerTool ( )

inlinevirtual

Member Function Documentation

◆ b_transport_post()

void simics::systemc::tools::ScProtocolCheckerTool::b_transport_post	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		sc_core::sc_time *	delay
	)

inlineoverride

◆ b_transport_pre()

void simics::systemc::tools::ScProtocolCheckerTool::b_transport_pre	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		sc_core::sc_time *	delay
	)

inlineoverride

◆ checker()

tlm_utils::tlm2_base_protocol_checker & simics::systemc::tools::ScProtocolCheckerTool::checker ( scla::ProxyInterface * proxy )

inline

◆ get_direct_mem_ptr_post()

void simics::systemc::tools::ScProtocolCheckerTool::get_direct_mem_ptr_post	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		tlm::tlm_dmi *	dmi_data,
		bool *	ret
	)

inlineoverride

◆ get_direct_mem_ptr_pre()

void simics::systemc::tools::ScProtocolCheckerTool::get_direct_mem_ptr_pre	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		tlm::tlm_dmi *	dmi_data
	)

inlineoverride

◆ initialize()

static void simics::systemc::tools::ScProtocolCheckerTool::initialize ( const std::string & module_name )

static

◆ invalidate_direct_mem_ptr_post()

void simics::systemc::tools::ScProtocolCheckerTool::invalidate_direct_mem_ptr_post	(	scla::ProxyInterface *	proxy,
		sc_dt::uint64 *	start_range,
		sc_dt::uint64 *	end_range
	)

inlineoverride

◆ invalidate_direct_mem_ptr_pre()

void simics::systemc::tools::ScProtocolCheckerTool::invalidate_direct_mem_ptr_pre	(	scla::ProxyInterface *	proxy,
		sc_dt::uint64 *	start_range,
		sc_dt::uint64 *	end_range
	)

inlineoverride

◆ nb_transport_bw_post()

void simics::systemc::tools::ScProtocolCheckerTool::nb_transport_bw_post	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		tlm::tlm_phase *	phase,
		sc_core::sc_time *	delay,
		tlm::tlm_sync_enum *	ret
	)

inlineoverride

◆ nb_transport_bw_pre()

void simics::systemc::tools::ScProtocolCheckerTool::nb_transport_bw_pre	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		tlm::tlm_phase *	phase,
		sc_core::sc_time *	delay
	)

inlineoverride

◆ nb_transport_fw_post()

void simics::systemc::tools::ScProtocolCheckerTool::nb_transport_fw_post	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		tlm::tlm_phase *	phase,
		sc_core::sc_time *	delay,
		tlm::tlm_sync_enum *	ret
	)

inlineoverride

◆ nb_transport_fw_pre()

void simics::systemc::tools::ScProtocolCheckerTool::nb_transport_fw_pre	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		tlm::tlm_phase *	phase,
		sc_core::sc_time *	delay
	)

inlineoverride

◆ transport_dbg_post()

void simics::systemc::tools::ScProtocolCheckerTool::transport_dbg_post	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans,
		unsigned int *	ret
	)

inlineoverride

◆ transport_dbg_pre()

void simics::systemc::tools::ScProtocolCheckerTool::transport_dbg_pre	(	scla::ProxyInterface *	proxy,
		tlm::tlm_generic_payload *	trans
	)

inlineoverride

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.995.20250459949.1/src/extensions/systemc-library/simics/systemc/tools/sc_protocol_checker_tool.h
