Class that implements the Simics i3c_slave interface and translates it into a TLM transaction. More...

#include <i3c_slave.h>

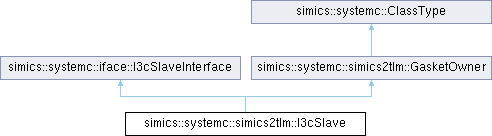

Inheritance diagram for simics::systemc::simics2tlm::I3cSlave:

Public Member Functions
virtual void	gasketUpdated ()

void	start (uint8_t address) override

void	write (uint8_t value) override

void	sdr_write (types::bytes_t data) override

void	read () override

void	daa_read () override

void	stop () override

void	ibi_start () override

void	ibi_acknowledge (types::i3c_ack_t ack) override

Public Member Functions inherited from simics::systemc::iface::I3cSlaveInterface
virtual	~I3cSlaveInterface ()

virtual void	start (uint8_t address)=0

virtual void	write (uint8_t value)=0

virtual void	sdr_write (types::bytes_t data)=0

virtual void	read ()=0

virtual void	daa_read ()=0

virtual void	stop ()=0

virtual void	ibi_start ()=0

virtual void	ibi_acknowledge (types::i3c_ack_t ack)=0

Public Member Functions inherited from simics::systemc::simics2tlm::GasketOwner
	GasketOwner ()

	GasketOwner (const GasketOwner &)=delete

GasketOwner &	operator= (const GasketOwner &)=delete

virtual	~GasketOwner ()=default

void	set_gasket (GasketInterface::Ptr gasketInterface)

virtual void	gasketUpdated ()

GasketInterface::Ptr	gasket () const

Public Member Functions inherited from simics::systemc::ClassType
	ClassType ()

std::string	type () const

bool	operator== (const ClassType &type) const

bool	operator!= (const ClassType &type) const

bool	operator< (const ClassType &type) const

template<class T >
T *	get_interface ()

virtual	~ClassType ()

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::ClassType
template<class T >
static ClassType	typeForClass ()

Protected Member Functions inherited from simics::systemc::ClassType
void	set_type ()

Protected Attributes inherited from simics::systemc::simics2tlm::GasketOwner
GasketInterface::Ptr	gasket_

Protected Attributes inherited from simics::systemc::ClassType
std::string	type_

ClassType *	implementor_
