Class that implements the Simics i3c_master interface and translates it into a TLM transaction. More...

#include <i3c_master.h>

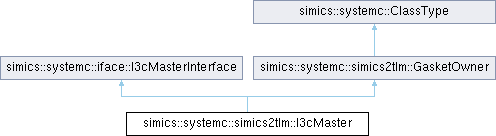

Inheritance diagram for simics::systemc::simics2tlm::I3cMaster:

Public Member Functions
virtual void	gasketUpdated ()

void	acknowledge (types::i3c_ack_t ack)

void	read_response (uint8_t value, bool more)

void	daa_response (uint64_t id, uint8_t bcr, uint8_t dcr)

void	ibi_request ()

void	ibi_address (uint8_t address)

Public Member Functions inherited from simics::systemc::iface::I3cMasterInterface
virtual	~I3cMasterInterface ()

virtual void	acknowledge (types::i3c_ack_t ack)=0

virtual void	read_response (uint8_t value, bool more)=0

virtual void	daa_response (uint64_t id, uint8_t bcr, uint8_t dcr)=0

virtual void	ibi_request ()=0

virtual void	ibi_address (uint8_t address)=0

Public Member Functions inherited from simics::systemc::simics2tlm::GasketOwner
	GasketOwner ()

	GasketOwner (const GasketOwner &)=delete

GasketOwner &	operator= (const GasketOwner &)=delete

virtual	~GasketOwner ()=default

void	set_gasket (GasketInterface::Ptr gasketInterface)

virtual void	gasketUpdated ()

GasketInterface::Ptr	gasket () const

Public Member Functions inherited from simics::systemc::ClassType
	ClassType ()

std::string	type () const

bool	operator== (const ClassType &type) const

bool	operator!= (const ClassType &type) const

bool	operator< (const ClassType &type) const

template<class T >
T *	get_interface ()

virtual	~ClassType ()

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::ClassType
template<class T >
static ClassType	typeForClass ()

Protected Member Functions inherited from simics::systemc::ClassType
void	set_type ()

Protected Attributes inherited from simics::systemc::simics2tlm::GasketOwner
GasketInterface::Ptr	gasket_

Protected Attributes inherited from simics::systemc::ClassType
std::string	type_

ClassType *	implementor_
