Public Member Functions | List of all members
simics::systemc::iface::PcieMapExtension Class Reference

Extension for Simics pcie_map interface. More...

#include <pcie_map_extension.h>

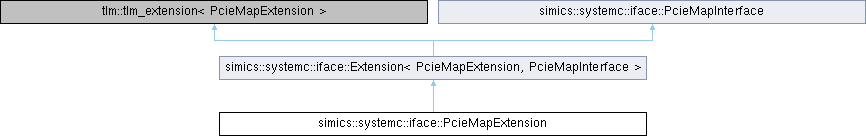

Inheritance diagram for simics::systemc::iface::PcieMapExtension:
simics::systemc::iface::Extension< PcieMapExtension, PcieMapInterface > simics::systemc::iface::PcieMapInterface

Public Member Functions

void call (PcieMapInterface *device) override

void add_map (types::map_info_t info, types::pcie_type_t type) override

void del_map (types::map_info_t::physical_address_t base, types::pcie_type_t type) override

void add_function (conf_object_t *map_obj, uint16_t function_id) override

void del_function (conf_object_t *map_obj, uint16_t function_id) override

void enable_function (uint16_t function_id) override

void disable_function (uint16_t function_id) override

uint16_t get_device_id (conf_object_t *dev_obj) override

- Public Member Functions inherited from simics::systemc::iface::Extension< PcieMapExtension, PcieMapInterface >
 Extension ()

void init (ExtensionSenderInterface *sender, tlm::tlm_generic_payload *payload)
 Deprecated, use the init(ExtensionSenderInterface *sender) instead.

void init (ExtensionSenderInterface *sender)

void send ()

void method_call (PcieMapInterface *device)

void method_call_ignore ()

types::AnyType method_type ()

bool valid ()

tlm::tlm_extension_base * clone () const override

void copy_from (tlm::tlm_extension_base const &extension) override

virtual ~Extension ()

- Public Member Functions inherited from simics::systemc::iface::PcieMapInterface
virtual void add_map (types::map_info_t info, types::pcie_type_t type)=0

virtual void del_map (types::map_info_t::physical_address_t base, types::pcie_type_t type)=0

virtual void add_function (conf_object_t *map_obj, uint16_t function_id)=0

virtual void del_function (conf_object_t *map_obj, uint16_t function_id)=0

virtual void enable_function (uint16_t function_id)=0

virtual void disable_function (uint16_t function_id)=0

virtual uint16_t get_device_id (conf_object_t *dev_obj)=0

virtual ~PcieMapInterface ()


Additional Inherited Members

- Static Public Member Functions inherited from simics::systemc::iface::Extension< PcieMapExtension, PcieMapInterface >
static ReceiverInterface * createReceiver (PcieMapInterface *device)

static ReceiverInterface * createIgnoreReceiver ()

virtual void call (PcieMapInterface *device)=0

- Protected Attributes inherited from simics::systemc::iface::Extension< PcieMapExtension, PcieMapInterface >
ExtensionSenderInterface * sender_

types::AnyType method_

std::vector< types::AnyType > method_input_

types::AnyType method_return_

types::AnyType method_return_error_

int method_call_count_

bool suppress_error_

bool valid_


Detailed Description

Extension for Simics pcie_map interface.

See base class for details.

Member Function Documentation

◆ add_function()

void simics::systemc::iface::PcieMapExtension::add_function ( conf_object_t *  map_obj,
uint16_t  function_id
)
inlineoverridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ add_map()

void simics::systemc::iface::PcieMapExtension::add_map ( types::map_info_t  info,
types::pcie_type_t  type
)
inlineoverridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ call()

void simics::systemc::iface::PcieMapExtension::call ( PcieMapInterface *  device)
inlineoverridevirtual

Implements simics::systemc::iface::Extension< PcieMapExtension, PcieMapInterface >.

◆ del_function()

void simics::systemc::iface::PcieMapExtension::del_function ( conf_object_t *  map_obj,
uint16_t  function_id
)
inlineoverridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ del_map()

void simics::systemc::iface::PcieMapExtension::del_map ( types::map_info_t::physical_address_t  base,
types::pcie_type_t  type
)
inlineoverridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ disable_function()

void simics::systemc::iface::PcieMapExtension::disable_function ( uint16_t  function_id)
inlineoverridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ enable_function()

void simics::systemc::iface::PcieMapExtension::enable_function ( uint16_t  function_id)
inlineoverridevirtual

Implements simics::systemc::iface::PcieMapInterface.

◆ get_device_id()

uint16_t simics::systemc::iface::PcieMapExtension::get_device_id ( conf_object_t *  dev_obj)
inlineoverridevirtual

Implements simics::systemc::iface::PcieMapInterface.

The documentation for this class was generated from the following file:
