simics::systemc::iface::PcieDeviceSimicsAdapter< TBase, TInterface > Class Template Reference

Adapter for Simics pcie_device interface. More...

#include <pcie_device_simics_adapter.h>

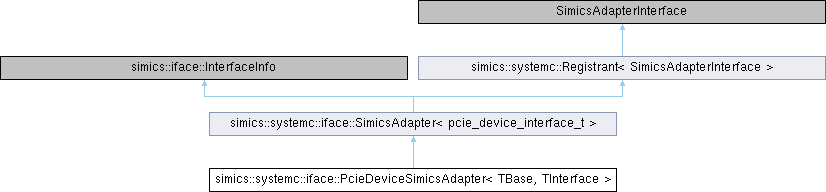

Inheritance diagram for simics::systemc::iface::PcieDeviceSimicsAdapter< TBase, TInterface >:

Public Member Functions
	PcieDeviceSimicsAdapter ()
Public Member Functions inherited from simics::systemc::iface::SimicsAdapter< pcie_device_interface_t >
	SimicsAdapter (const char *name, pcie_device_interface_t iface)
std::string	name () const override
const interface_t *	cstruct () const override
void	set_simics_class (conf_class_t *conf_class) override
conf_class_t *	simics_class () const override
void	set_map_adapter (bool map) override
bool	map_adapter () const override
Public Member Functions inherited from simics::systemc::Registrant< SimicsAdapterInterface >
	Registrant ()
	Registrant (const Registrant &rhs)
virtual	~Registrant ()
void	detach ()

Static Protected Member Functions
static void	connected (conf_object_t *obj, conf_object_t *port_obj, uint16 device_id)
static void	disconnected (conf_object_t *obj, conf_object_t *port_obj, uint16 device_id)
static void	hot_reset (conf_object_t *obj)
Static Protected Member Functions inherited from simics::systemc::iface::SimicsAdapter< pcie_device_interface_t >
static TInterface *	adapterWithoutLocking (conf_object_t *obj)
static SimicsLock< TInterface >	adapter (conf_object_t *obj, conf_object_t *obj_lock)
static SimicsLock< TInterface >	adapter (conf_object_t *obj)

Additional Inherited Members
Protected Member Functions inherited from simics::systemc::iface::SimicsAdapter< pcie_device_interface_t >
std::vector< std::string >	descriptionBase (conf_object_t *obj, DescriptionType type)

Detailed Description

template<typename TBase, typename TInterface = PcieDeviceInterface>
class simics::systemc::iface::PcieDeviceSimicsAdapter< TBase, TInterface >

Adapter for Simics pcie_device interface.

Constructor & Destructor Documentation

PcieDeviceSimicsAdapter()

template<typename TBase , typename TInterface = PcieDeviceInterface>

simics::systemc::iface::PcieDeviceSimicsAdapter< TBase, TInterface >::PcieDeviceSimicsAdapter ( )

inline

Member Function Documentation

connected()

template<typename TBase , typename TInterface = PcieDeviceInterface>

static void simics::systemc::iface::PcieDeviceSimicsAdapter< TBase, TInterface >::connected ( conf_object_t *  obj, conf_object_t *  port_obj, uint16  device_id  )

inlinestaticprotected

disconnected()

template<typename TBase , typename TInterface = PcieDeviceInterface>

static void simics::systemc::iface::PcieDeviceSimicsAdapter< TBase, TInterface >::disconnected ( conf_object_t *  obj, conf_object_t *  port_obj, uint16  device_id  )

inlinestaticprotected

hot_reset()

template<typename TBase , typename TInterface = PcieDeviceInterface>

static void simics::systemc::iface::PcieDeviceSimicsAdapter< TBase, TInterface >::hot_reset ( conf_object_t *  obj )

inlinestaticprotected

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/pcie_device_simics_adapter.h
