Extension for Simics pci_upstream_operation interface. More...

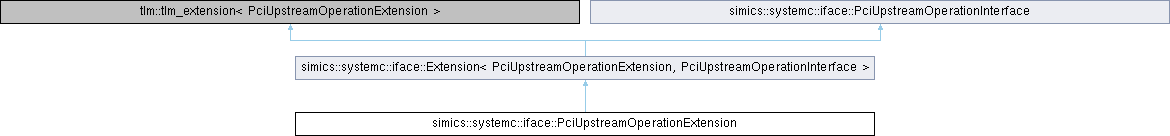

Inheritance diagram for simics::systemc::iface::PciUpstreamOperationExtension:

Public Member Functions
virtual void	call (PciUpstreamOperationInterface *device)

virtual types::pci_bus_exception_type_t	read (uint16_t rid, types::addr_space_t space)

virtual types::pci_bus_exception_type_t	write (uint16_t rid, types::addr_space_t space)

Public Member Functions inherited from simics::systemc::iface::Extension< PciUpstreamOperationExtension, PciUpstreamOperationInterface >
	Extension ()

void	init (ExtensionSenderInterface sender, tlm::tlm_generic_payload payload)
	Deprecated, use the init(ExtensionSenderInterface *sender) instead.

void	init (ExtensionSenderInterface *sender)

void	send ()

void	method_call (PciUpstreamOperationInterface *device)

void	method_call_ignore ()

types::AnyType	method_type ()

bool	valid ()

virtual tlm::tlm_extension_base *	clone () const

virtual void	copy_from (tlm::tlm_extension_base const &extension)

virtual	~Extension ()

Public Member Functions inherited from simics::systemc::iface::PciUpstreamOperationInterface
virtual types::pci_bus_exception_type_t	read (uint16_t rid, types::addr_space_t space)=0

virtual types::pci_bus_exception_type_t	write (uint16_t rid, types::addr_space_t space)=0

virtual	~PciUpstreamOperationInterface ()

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::iface::Extension< PciUpstreamOperationExtension, PciUpstreamOperationInterface >
static ReceiverInterface *	createReceiver (PciUpstreamOperationInterface *device)

static ReceiverInterface *	createIgnoreReceiver ()

virtual void	call (PciUpstreamOperationInterface *device)=0

Protected Attributes inherited from simics::systemc::iface::Extension< PciUpstreamOperationExtension, PciUpstreamOperationInterface >
ExtensionSenderInterface *	sender_

types::AnyType	method_

std::vector< types::AnyType >	method_input_

types::AnyType	method_return_

types::AnyType	method_return_error_

int	method_call_count_

bool	suppress_error_

bool	valid_

Detailed Description

Extension for Simics pci_upstream_operation interface.

See base class for details.

Member Function Documentation

virtual void simics::systemc::iface::PciUpstreamOperationExtension::call ( PciUpstreamOperationInterface * device )

inlinevirtual

virtual types::pci_bus_exception_type_t simics::systemc::iface::PciUpstreamOperationExtension::read	(	uint16_t	rid,
		types::addr_space_t	space
	)

inlinevirtual

virtual types::pci_bus_exception_type_t simics::systemc::iface::PciUpstreamOperationExtension::write	(	uint16_t	rid,
		types::addr_space_t	space
	)

inlinevirtual

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/pci_upstream_operation_extension.h
