simics::systemc::iface::PciDeviceExtension Class Reference

Extension for Simics pci_device interface. More...

#include <pci_device_extension.h>

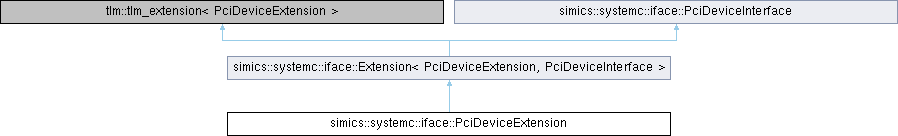

Inheritance diagram for simics::systemc::iface::PciDeviceExtension:

Public Member Functions
virtual void	call (PciDeviceInterface *device)
virtual void	bus_reset ()
virtual void	system_error ()
virtual void	interrupt_raised (int pin)
virtual void	interrupt_lowered (int pin)
Public Member Functions inherited from simics::systemc::iface::Extension< PciDeviceExtension, PciDeviceInterface >
	Extension ()
void	init (ExtensionSenderInterface *sender, tlm::tlm_generic_payload *payload)
	Deprecated, use the init(ExtensionSenderInterface *sender) instead.
void	init (ExtensionSenderInterface *sender)
void	send ()
void	method_call (PciDeviceInterface *device)
void	method_call_ignore ()
types::AnyType	method_type ()
bool	valid ()
virtual tlm::tlm_extension_base *	clone () const
virtual void	copy_from (tlm::tlm_extension_base const &extension)
virtual	~Extension ()
Public Member Functions inherited from simics::systemc::iface::PciDeviceInterface
virtual void	bus_reset ()=0
virtual void	system_error ()=0
virtual void	interrupt_raised (int pin)=0
virtual void	interrupt_lowered (int pin)=0
virtual	~PciDeviceInterface ()

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::iface::Extension< PciDeviceExtension, PciDeviceInterface >
static ReceiverInterface *	createReceiver (PciDeviceInterface *device)
static ReceiverInterface *	createIgnoreReceiver ()
virtual void	call (PciDeviceInterface *device)=0
Protected Attributes inherited from simics::systemc::iface::Extension< PciDeviceExtension, PciDeviceInterface >
ExtensionSenderInterface *	sender_
types::AnyType	method_
std::vector< types::AnyType >	method_input_
types::AnyType	method_return_
types::AnyType	method_return_error_
int	method_call_count_
bool	suppress_error_
bool	valid_

Detailed Description

Extension for Simics pci_device interface.

See base class for details.

Member Function Documentation

bus_reset()

virtual void simics::systemc::iface::PciDeviceExtension::bus_reset ( )

inlinevirtual

Implements simics::systemc::iface::PciDeviceInterface.

call()

virtual void simics::systemc::iface::PciDeviceExtension::call ( PciDeviceInterface *  device )

inlinevirtual

Implements simics::systemc::iface::Extension< PciDeviceExtension, PciDeviceInterface >.

interrupt_lowered()

virtual void simics::systemc::iface::PciDeviceExtension::interrupt_lowered ( int  pin )

inlinevirtual

Implements simics::systemc::iface::PciDeviceInterface.

interrupt_raised()

virtual void simics::systemc::iface::PciDeviceExtension::interrupt_raised ( int  pin )

inlinevirtual

Implements simics::systemc::iface::PciDeviceInterface.

system_error()

virtual void simics::systemc::iface::PciDeviceExtension::system_error ( )

inlinevirtual

Implements simics::systemc::iface::PciDeviceInterface.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/pci_device_extension.h
