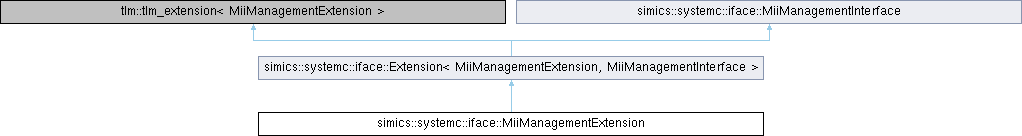

Inheritance diagram for simics::systemc::iface::MiiManagementExtension:

Public Member Functions
void	call (MiiManagementInterface *device) override

virtual int	serial_access (int data_in, int clock)

virtual uint16_t	read_register (int phy, int reg)

virtual void	write_register (int phy, int reg, uint16_t value)

Public Member Functions inherited from simics::systemc::iface::Extension< MiiManagementExtension, MiiManagementInterface >
	Extension ()

void	init (ExtensionSenderInterface sender, tlm::tlm_generic_payload payload)
	Deprecated, use the init(ExtensionSenderInterface *sender) instead.

void	init (ExtensionSenderInterface *sender)

void	send ()

void	method_call (MiiManagementInterface *device)

void	method_call_ignore ()

types::AnyType	method_type ()

bool	valid ()

virtual tlm::tlm_extension_base *	clone () const

virtual void	copy_from (tlm::tlm_extension_base const &extension)

virtual	~Extension ()

Public Member Functions inherited from simics::systemc::iface::MiiManagementInterface
virtual int	serial_access (int data_in, int clock)=0

virtual uint16_t	read_register (int phy, int reg)=0

virtual void	write_register (int phy, int reg, uint16_t value)=0

virtual	~MiiManagementInterface ()=default

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::iface::Extension< MiiManagementExtension, MiiManagementInterface >
static ReceiverInterface *	createReceiver (MiiManagementInterface *device)

static ReceiverInterface *	createIgnoreReceiver ()

virtual void	call (MiiManagementInterface *device)=0

Protected Attributes inherited from simics::systemc::iface::Extension< MiiManagementExtension, MiiManagementInterface >
ExtensionSenderInterface *	sender_

types::AnyType	method_

std::vector< types::AnyType >	method_input_

types::AnyType	method_return_

types::AnyType	method_return_error_

int	method_call_count_

bool	suppress_error_

bool	valid_

Member Function Documentation

◆ call()

void simics::systemc::iface::MiiManagementExtension::call ( MiiManagementInterface * device )

inlineoverridevirtual

virtual uint16_t simics::systemc::iface::MiiManagementExtension::read_register	(	int	phy,
		int	reg
	)

inlinevirtual

virtual int simics::systemc::iface::MiiManagementExtension::serial_access	(	int	data_in,
		int	clock
	)

inlinevirtual

virtual void simics::systemc::iface::MiiManagementExtension::write_register	(	int	phy,
		int	reg,
		uint16_t	value
	)

inlinevirtual

The documentation for this class was generated from the following file:

/disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/mii_management_extension.h
