simics::systemc::iface::I3cMasterExtension Class Reference

#include <i3c_master_extension.h>

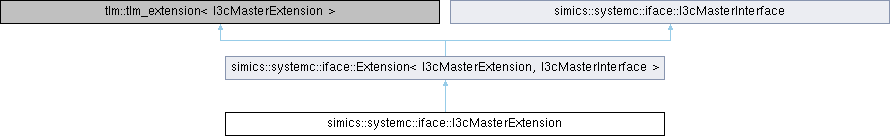

Inheritance diagram for simics::systemc::iface::I3cMasterExtension:

Public Member Functions
virtual void	call (I3cMasterInterface *device)
virtual void	acknowledge (types::i3c_ack_t ack)
virtual void	read_response (uint8_t value, bool more)
virtual void	daa_response (uint64_t id, uint8_t bcr, uint8_t dcr)
virtual void	ibi_request ()
virtual void	ibi_address (uint8_t address)
Public Member Functions inherited from simics::systemc::iface::Extension< I3cMasterExtension, I3cMasterInterface >
	Extension ()
void	init (ExtensionSenderInterface *sender, tlm::tlm_generic_payload *payload)
	Deprecated, use the init(ExtensionSenderInterface *sender) instead.
void	init (ExtensionSenderInterface *sender)
void	send ()
void	method_call (I3cMasterInterface *device)
void	method_call_ignore ()
types::AnyType	method_type ()
bool	valid ()
virtual tlm::tlm_extension_base *	clone () const
virtual void	copy_from (tlm::tlm_extension_base const &extension)
virtual	~Extension ()
Public Member Functions inherited from simics::systemc::iface::I3cMasterInterface
virtual	~I3cMasterInterface ()
virtual void	acknowledge (types::i3c_ack_t ack)=0
virtual void	read_response (uint8_t value, bool more)=0
virtual void	daa_response (uint64_t id, uint8_t bcr, uint8_t dcr)=0
virtual void	ibi_request ()=0
virtual void	ibi_address (uint8_t address)=0

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::iface::Extension< I3cMasterExtension, I3cMasterInterface >
static ReceiverInterface *	createReceiver (I3cMasterInterface *device)
static ReceiverInterface *	createIgnoreReceiver ()
virtual void	call (I3cMasterInterface *device)=0
Protected Attributes inherited from simics::systemc::iface::Extension< I3cMasterExtension, I3cMasterInterface >
ExtensionSenderInterface *	sender_
types::AnyType	method_
std::vector< types::AnyType >	method_input_
types::AnyType	method_return_
types::AnyType	method_return_error_
int	method_call_count_
bool	suppress_error_
bool	valid_

Member Function Documentation

acknowledge()

virtual void simics::systemc::iface::I3cMasterExtension::acknowledge ( types::i3c_ack_t  ack )

inlinevirtual

Implements simics::systemc::iface::I3cMasterInterface.

call()

virtual void simics::systemc::iface::I3cMasterExtension::call ( I3cMasterInterface *  device )

inlinevirtual

Implements simics::systemc::iface::Extension< I3cMasterExtension, I3cMasterInterface >.

daa_response()

virtual void simics::systemc::iface::I3cMasterExtension::daa_response ( uint64_t  id, uint8_t  bcr, uint8_t  dcr  )

inlinevirtual

Implements simics::systemc::iface::I3cMasterInterface.

ibi_address()

virtual void simics::systemc::iface::I3cMasterExtension::ibi_address ( uint8_t  address )

inlinevirtual

Implements simics::systemc::iface::I3cMasterInterface.

ibi_request()

virtual void simics::systemc::iface::I3cMasterExtension::ibi_request ( )

inlinevirtual

Implements simics::systemc::iface::I3cMasterInterface.

read_response()

virtual void simics::systemc::iface::I3cMasterExtension::read_response ( uint8_t  value, bool  more  )

inlinevirtual

Implements simics::systemc::iface::I3cMasterInterface.

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.731.16790700762.1/src/extensions/systemc-library/simics/systemc/iface/i3c_master_extension.h
