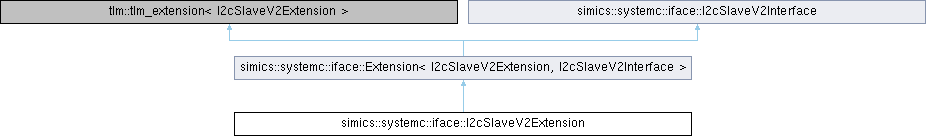

Inheritance diagram for simics::systemc::iface::I2cSlaveV2Extension:

Public Member Functions
void	call (I2cSlaveV2Interface *device) override

void	start (uint8_t address) override

void	read () override

void	write (uint8_t value) override

void	stop () override

std::vector< uint8_t >	addresses () override

Public Member Functions inherited from simics::systemc::iface::Extension< I2cSlaveV2Extension, I2cSlaveV2Interface >
	Extension ()

void	init (ExtensionSenderInterface sender, tlm::tlm_generic_payload payload)
	Deprecated, use the init(ExtensionSenderInterface *sender) instead.

void	init (ExtensionSenderInterface *sender)

void	send ()

void	method_call (I2cSlaveV2Interface *device)

void	method_call_ignore ()

types::AnyType	method_type ()

bool	valid ()

tlm::tlm_extension_base *	clone () const override

void	copy_from (tlm::tlm_extension_base const &extension) override

virtual	~Extension ()

Public Member Functions inherited from simics::systemc::iface::I2cSlaveV2Interface
virtual void	start (uint8_t address)=0

virtual void	read ()=0

virtual void	write (uint8_t value)=0

virtual void	stop ()=0

virtual std::vector< uint8_t >	addresses ()=0

virtual	~I2cSlaveV2Interface ()

Additional Inherited Members
Static Public Member Functions inherited from simics::systemc::iface::Extension< I2cSlaveV2Extension, I2cSlaveV2Interface >
static ReceiverInterface *	createReceiver (I2cSlaveV2Interface *device)

static ReceiverInterface *	createIgnoreReceiver ()

virtual void	call (I2cSlaveV2Interface *device)=0

Protected Attributes inherited from simics::systemc::iface::Extension< I2cSlaveV2Extension, I2cSlaveV2Interface >
ExtensionSenderInterface *	sender_

types::AnyType	method_

std::vector< types::AnyType >	method_input_

types::AnyType	method_return_

types::AnyType	method_return_error_

int	method_call_count_

bool	suppress_error_

bool	valid_
